Specifications
Price :
Pricing is based on a proposal tailored to the specific project.
Packaging Details :
Paper box
Peak Current: :
600A 1 Mins
Payment Terms :
L/C, T/T
Balancing :
Active Or Passive Balancing Optional
Certification :
UL/CE
Operating Temperature: :
-20℃~60℃
Supply Ability :
100000pcs per month
Delivery Time :
15-30working days
Brand Name :
GCE Energy
Communication Port With UPS: :
RS485/CAN
Place of Origin :
China
Product Name :
Battery Management System
MOQ :
2
Warranty: :
3 Years For RBMS And 1 Year For BMU/PCBs
Description
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System for Solar ESS Container | CAN RS485 Ethernet CE Certified
Advanced High Voltage BMS for Energy Storage Systems
GCE Energy 4U High Voltage BMS is an advanced battery management system designed for industrial energy storage systems (ESS), lithium battery packs, and large-scale BESS applications. Supporting 125A, 160A and up to 250A rated current, this rack-mounted BMS solution is compatible with high-voltage battery systems from 350V to 1000V.
The 4U Battery Management System provides complete battery protection and intelligent management, including charge and discharge control, cell voltage monitoring, temperature management, short circuit protection, pre-charge control, SOC estimation and system parameter configuration. With CAN, RS485 and Ethernet communication interfaces, it enables seamless integration with BMU, PCS, UPS, EMS and monitoring platforms.
Designed for reliable and safe operation, GCE 4U High Voltage BMS offers flexible configuration, strong protection performance and excellent scalability, making it an ideal solution for commercial and industrial energy storage, renewable energy storage, UPS systems and custom lithium battery applications.
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System for Solar ESS Container | CAN RS485 Ethernet CE Certified

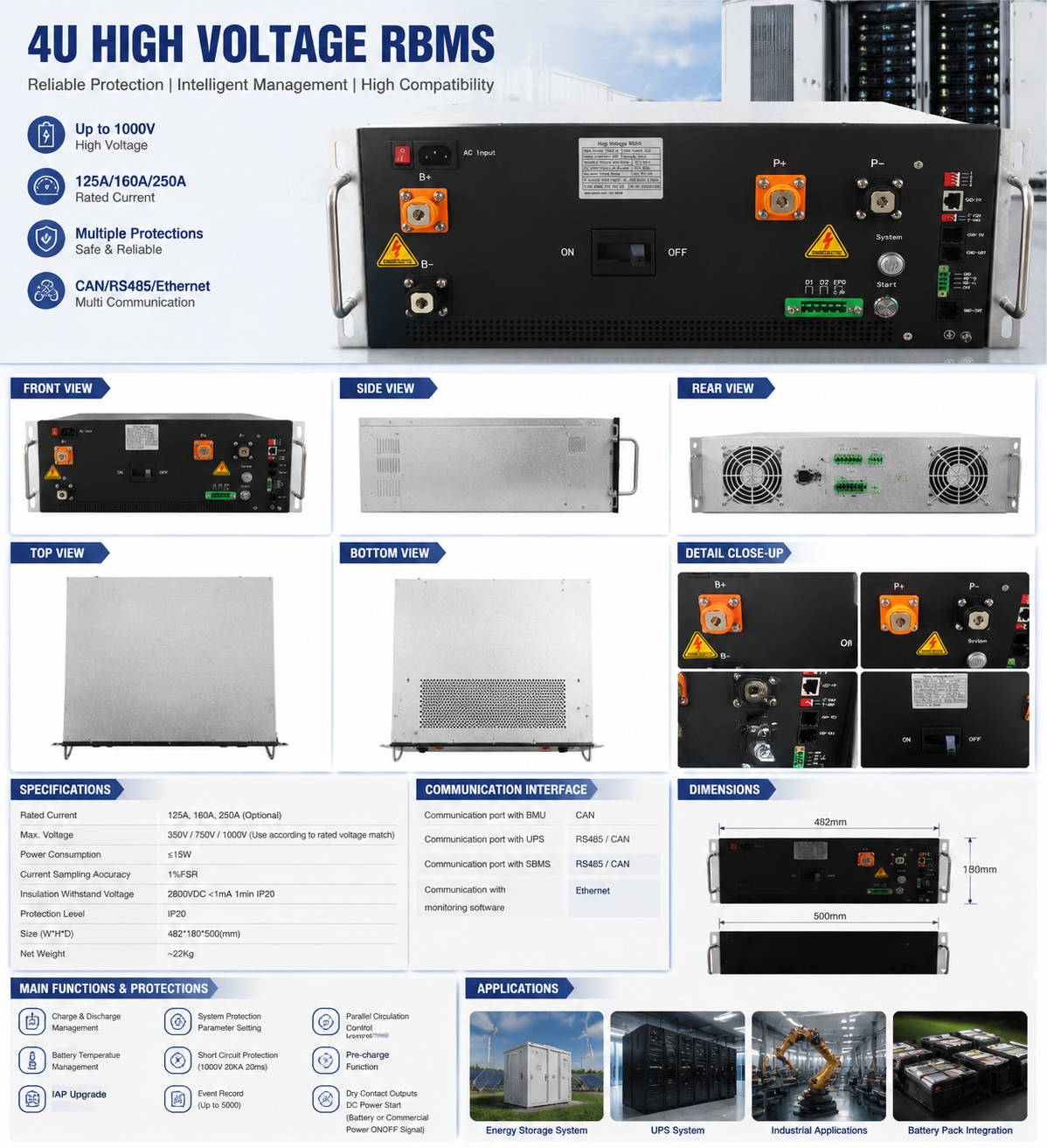

GCE 4U High Voltage RBMS (350V-1500V, Up to 250A)
Intelligent Rack Battery Management System for Commercial & Utility-Scale ESS
The GCE 4U High Voltage RBMS is an intelligent rack-mounted Battery Management System (BMS) designed for high-voltage lithium battery energy storage systems. Engineered for demanding commercial and industrial applications, it provides comprehensive battery monitoring, protection, communication, and system control to ensure maximum safety, reliability, and long-term performance.
Supporting a wide operating voltage range of 350V to 1500V and rated currents of 125A, 160A, or 250A, the GCE 4U RBMS is an ideal solution for large-scale Battery Energy Storage Systems (BESS), UPS backup power, photovoltaic energy storage, microgrids, and industrial DC power applications.
Its highly integrated architecture supports both standalone battery systems and scalable multi-rack configurations, making it suitable for projects ranging from commercial ESS to utility-scale energy storage.
Technical Specifications
ProductGCE 4U High Voltage RBMS
Battery TypeLiFePO₄ (Lithium Iron Phosphate)
Voltage Range350V - 1500V
Rated Current125A / 160A / 250A
Power Consumption≤15W
Current Sampling Accuracy1% FSR
Protection LevelIP20
CommunicationCAN / RS485 / Ethernet
BMU CommunicationCAN
UPS / PCS CommunicationCAN / RS485
Firmware UpgradeIAP Supported
Parallel ExpansionSupported
Event Records5000
Dry Contact2 Outputs
Installation4U Rack Mount
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System for Solar ESS Container | CAN RS485 Ethernet CE Certified
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System for Solar ESS Container | CAN RS485 Ethernet CE Certified
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System for Solar ESS Container | CAN RS485 Ethernet CE Certified
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System for Solar ESS Container | CAN RS485 Ethernet CE Certified
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System for Solar ESS Container | CAN RS485 Ethernet CE Certified
GCE Energy 4U Rack BMS 250A 1000V High Voltage Battery Management System for Solar ESS Container | CAN RS485 Ethernet CE Certified
Key Features
  • Wide High Voltage Range: Supports battery systems from 350V to 1500V
  • High Current Capability: Available in 125A, 160A, and 250A
  • Designed for LiFePO₄ Battery Systems
  • Rack-Mounted 4U Design for easy cabinet integration
  • Supports Multi-Cluster Parallel Expansion
  • Comprehensive Battery Protection & Monitoring
  • Pre-charge & Contactor Control
  • Short Circuit Protection
  • Battery Charge & Discharge Management
  • Real-Time Temperature Monitoring
  • Parameter Configuration & Firmware (IAP) Upgrade
  • Up to 5,000 Event Records
  • Dual Dry Contact Outputs
  • Supports CAN, RS485, Ethernet Communication
  • Compatible with PCS, EMS, UPS and SCADA Systems
  • Front Panel Color Customization Available to match your cabinet or brand identity
  • OEM & ODM Customization Supported
