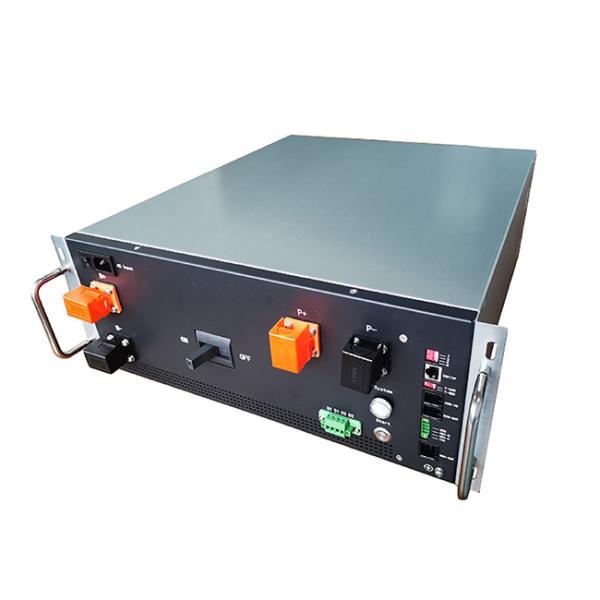

GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
Specifications
Brand Name :
GCE
Model Number :
5U
Certification :
CE/RoHS/SGS/MSDS
Place of Origin :
China
MOQ :
2
Price :
negotiable with wenglin@hngce.com
Supply Ability :
1000 sets/month
Delivery Time :
15-20 days
Packaging Details :
Corrugated Carton
Model :
RBMS07S20160A768V
BMS type :
4U BMS
Brand :
GCE
Communication interface with UPS :
Rs485/CAN/LAN/dry contact
Voltage :
768V
Battery Type :
LFP NCM LTO
Dry contact :
Available
Package weight :
40 kgs
Description

GCE 768V 160A Lifepo4 Master Slave High Voltage 48v BMS Lifepo4

GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
Model Number:RBMS07S2-3-160A768V
Quick Details
Place of Origin:
China
Brand Name:
GCE
Model Number:
RBMS07S20160A768V
Battery Type:
high voltage BMS(HV BMS)
Battery Type::
LFP/NMC/LTO
communication::
Rs485/CAN/LAN/dry contact
Voltage::
768V
Current::
160A
Application::
BESS/UPS
module strings::
15S*16pcs
Power:
24VDC(18~28V)
Power consumption:
≤20W
Product Details

1. Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.
2. perfect self-test and operational status detection, with HMI display, system operation information at a glance.
3. perfect and reliable system control and protection strategies to fully protect the
battery safety, extend the life of the battery escort.

GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System
Specification
Product Name
BMS
Model no.
RBMS07S2-3-160A768V
protecting method
MCCB+Contactor
Rated Current range
-250A~250A
Voltage Range
384V-1000V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤25W(Three wire systems); ≤15W(Two wire systems)
Size(W*H*D)mm
4U (482*180*500)
Way out
Front
Tap center
Support(Optional)
Net weight
23kg

Our comapny

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.
We are ready to share Information, Experience and Solutions in BMS (Battery Management System) Solar Power Investment.
Also to help Partners Optimize Investment Capital, Develop lifepo4 battery - Renewable Power sources widely.
At the same time, anticipate and well control the risks in Battery Project , Solar Power Project and Electrical Power System Project BMS Management.
