Specifications
Brand Name :
GCE
Model Number :
RBMS07S45S100A
Certification :
CE/RoHS/UN38.3/MSDS
Place of Origin :
china
MOQ :
2
Price :
negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10000+pcs+1 month
Delivery Time :
8-15 days
Packaging Details :
Corrugated Carton,510*310*210mm
Material :
Iron
Communication :
CAN, RS485
Warranty :
3 years
OEM/ODM :
Acceptable
Product name :
Battery Management System
Description

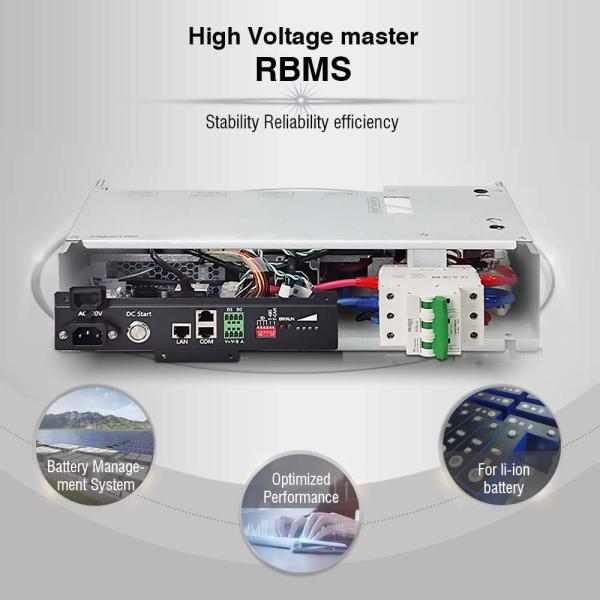

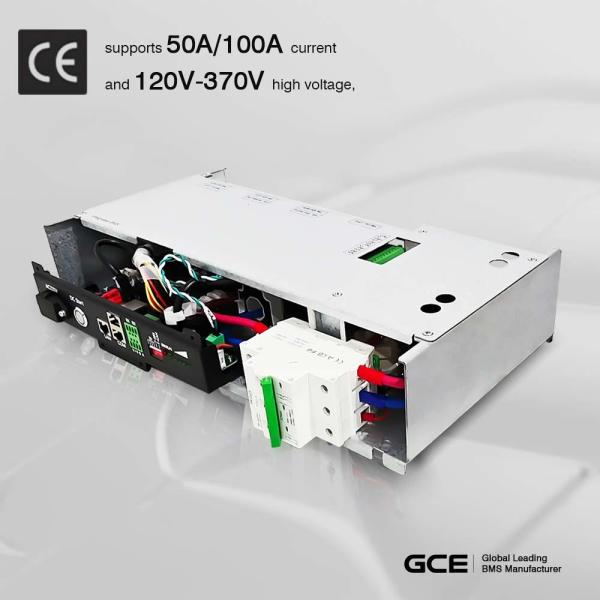

GCE 45S 100A bms for lithium battery LFP NMC LTO 144V BMS for lifepo4 battery pack for home solar energy application

Features:

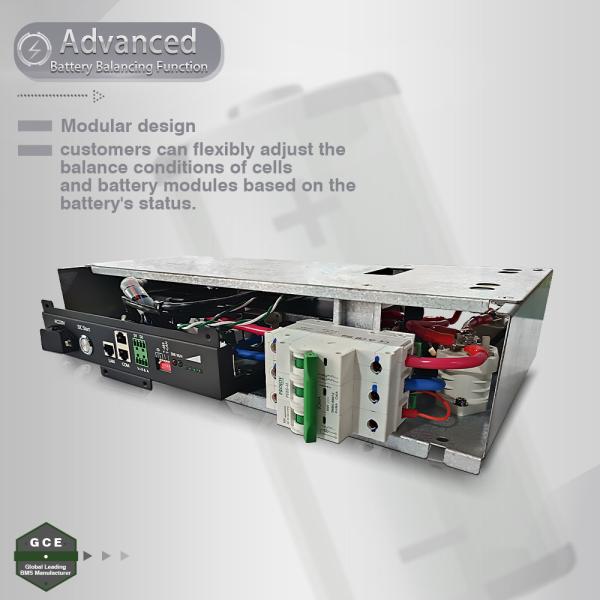

Adopts distributed architecture
Modular design concept
High configurability
Easy assembly, debugging, and maintenance
Suitable for various battery energy storage systems with dc voltage below 1000v.

GCE 45S 100A Bms For Lithium Battery LFP NMC LTO High configurability

Specification:

Product Name
Integrated BMS(master slave together in one)
Model no.
RBMS07S45S100A
System voltage range
0 - 144V DC
Startup mode
DC start (optional AC and DC starter)
Number of battery strings
45 S(3x 15 S)
Balance
Balance type
Passive resistance equalization
Balanced current
100mA ± 10mA(Single cell 3.4V )
Temperature Sampling
Numbers
12 Battery temperature(4*3)
Sampling accuracy
± 2℃
Voltage Sampling
Sampling accuracy
Single cell ±20mV
SOC
≤5%
Communication mode
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Bluetooth: optional (android app available)
GPRS: optional,
Display mode
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: optional
Hall sensor specifications
50A/100A
Maximum load of power components
Steady-state:100A
transient state:150A/10S( Adjustable)
Alarm level
1 Level
Protection level
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down
Operating Temperature
Charging : －10～75℃
Discharging : -20 to 75℃
Storage : -40 to +75℃

GCE 45S 100A Bms For Lithium Battery LFP NMC LTO High configurabilityGCE 45S 100A Bms For Lithium Battery LFP NMC LTO High configurabilityGCE 45S 100A Bms For Lithium Battery LFP NMC LTO High configurabilityGCE 45S 100A Bms For Lithium Battery LFP NMC LTO High configurabilityGCE 45S 100A Bms For Lithium Battery LFP NMC LTO High configurability
