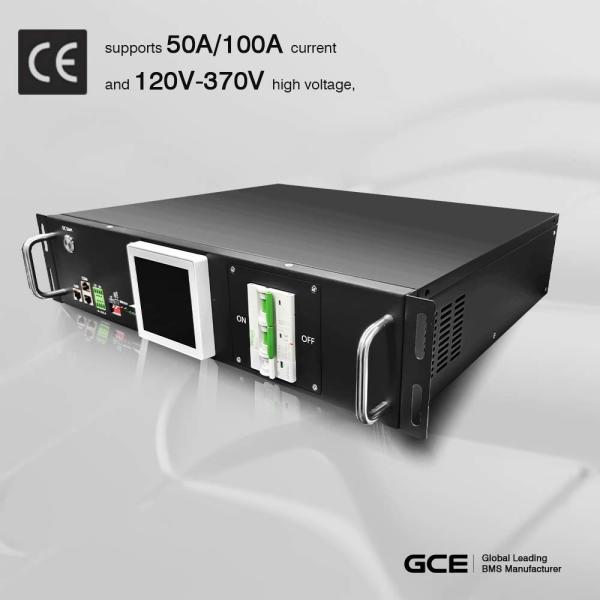

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System
336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System
336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System
336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System
336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System
336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System
Specifications
Brand Name :
GCE
Model Number :
RBMS07S23-50A336V
Certification :
CE UL
Place of Origin :
china
MOQ :
2
Price :
negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10000+pcs+1 month
Delivery Time :
8-15 days
Packaging Details :
Corrugated Carton,510*310*210mm
Material :
Iron
color :
black
Features :
DC&AC dual power supply
Dimension :
482*132*500mm
Warranty :
3 years
Battery Type :
LFP, NCM, LTO..., LFP, LTO, NCM, Lithium iron phosphate battery
Description

336V 50A Lifepo4 BMS lithium battery management system BMS for Lithium-ion Battery Pack BESS UPS home solar application



    • 336V50A BMS







Communication protocol:
Rs485, CAN, LAN, dry contact

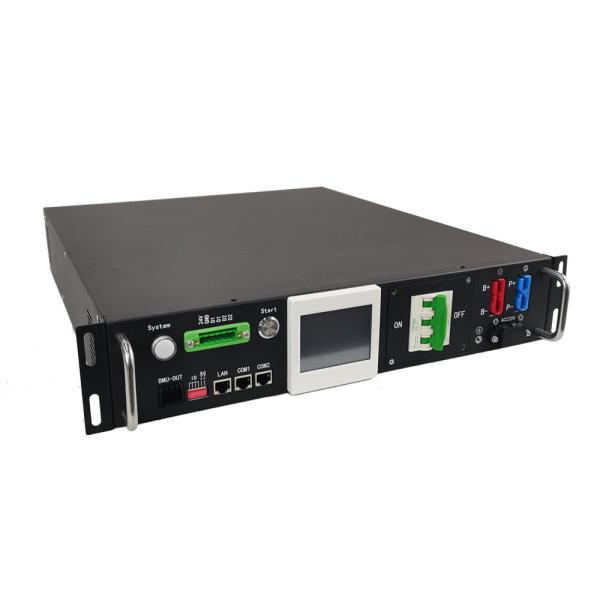

* 2U standard 19inch case * Efficient, stable and reliable * size:W440*H88*D500mm


336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System



Accessories



12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication


Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm


Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Accessories



12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication


Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm


Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Accessories



12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication


Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm


Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance


Specification



Product Name
BMS
Model no.
RBMS07S2-3-63A192V
protecting method
MCCB+Contactor
Rated Current range
-50A~50A
Voltage Range
120V-500V
Current Sampling Accuracy
1.0%FSR
Communication interface with BMU
RS485/CAN
Communication interface with BMU
CAN
Communication interface with BMU
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
No
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
5
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
2U (440*88*500)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
14kg
