GCE 210S 672V 500A high voltage master BMS with relay contactor lifepo4 bms 15S BMU wire harness for bess ups and solar
Hunan Group Control Energy(GCE) technology Co., Ltd., a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium batteries. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.
Communication protocol:
Rs485, CAN, LAN
* 5U standard 19inch case * Efficient, stable and reliable * size:W482*H220*D500mm
12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
BMS Gonfiguration:
210S 672V 500A high voltage BMS(HV BMS) * 1set
15S BMU * 14sets
15S wire harness *14sets
(15S48V battery module, 14 modules in series for 210S 672V 500A system)
| Product Name | BMS |
| Model no. | RBMS07S2-0-500A672V |
| protecting method | MCCB+Contactor |
| Rated Current range | -500A~500A |
| Voltage Range | 0V-672V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with BMU | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with BMU | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plug in) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 5U (440*178*600) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 38kg |

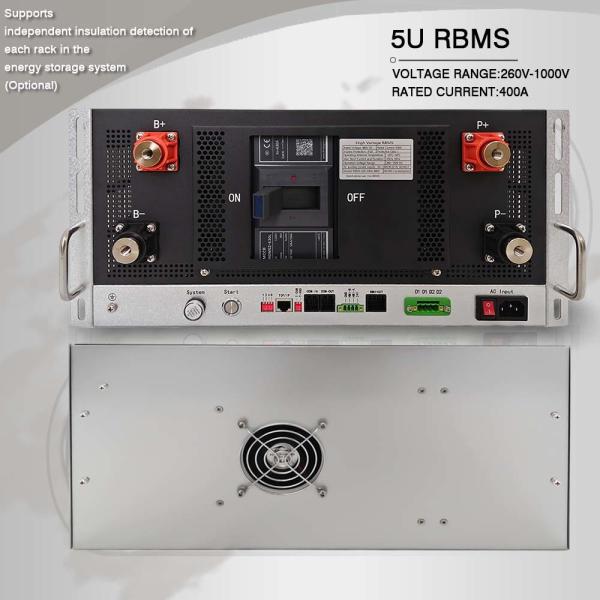

Actual picture for your reference
