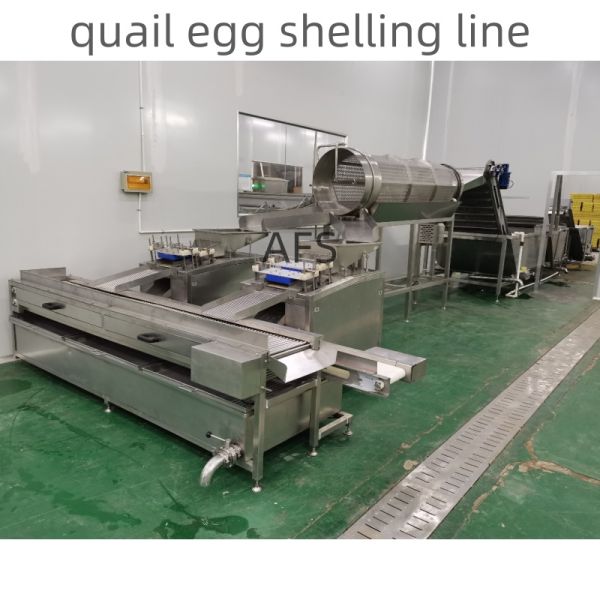

Quail Egg Peeling Machine, Quail Egg Shelling Line, Quail Egg Peeler Machine
Quail Egg Peeling Machine, Quail Egg Shelling Line, Quail Egg Peeler Machine
Specifications
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Capacity :
300kg/h
Supply Ability :
10set/m
Warranty :
One year
Model Number :
300kg
Place of Origin :
China
Material :
SUS304
Brand Name :
AFS
Shipping :
EXW,FOB,CNF,CIF
Installation :
4 days
MOQ :
1pc
Price :
$10000-30000/pc
Delivery Time :
35days
Certification :
CE
Packaging Details :
non fumigation export standard wooden case
Technician :
one
Description

Quail Egg Peeling Machine, Quail Egg Shelling Line, Quail Egg Peeler Machine

Quail Egg Peeling Machine, Quail Egg Shelling Line, Quail Egg Peeler Machine

Youtube link :
https://youtu.be/nrmKifDe6eE


Technician Parameter:

No. Machine Specification
1

Controller

 1. The main frame and all panels are made entirely of food-grade SUS304 stainless steel, with 2.0mm thick SUS304 plates ensuring a smooth, burr-free finish.

2.Inverter:ATV310H037N4A, ATV310H075N4A, brand: Schneider.
2

Pre-cooking

 1. The main frame is made of food-grade SUS304 stainless steel. The inner panel of the box is 2.0mm. The support tube of the body is sus304 50*50*2.0mm. The whole machine is smooth and has no burrs.
2. Motor power: 380v/400w, speed ratio: 1:25, brand: Shengbang, Schneider variable frequency speed regulation.
3. Air pump: 1.6kw, brand: Shanghai Xinke.
4. Chain: Use 304 stainless steel chain.
3

Cooking

 1. The main frame is made of food-grade SUS304 stainless steel. The inner panel of the box is 2.0mm. The support tube of the body is sus304 50*50*2.0mm. The whole machine is smooth and has no burrs.
2. Motor power: 380v/400w, speed ratio: 1:25, brand: Shengbang, Schneider variable frequency speed regulation.
3. Air pump: 1.6kw, brand: Shanghai Xinke.
4. Chain: Use 304 stainless steel chain.
4

Cooling

 1. The main frame is made of food-grade SUS304 stainless steel. The plate thickness is sus304 2.0mm plate. The body support tube is sus304 50*50*2.0mm. The whole machine is smooth and burr-free. The transportation adopts SUS304 stainless steel pipe.
2. Chain: Use 304 stainless steel chain.
3. Motor power: 380v/400w, speed ratio: 1:40, brand: shengbang. Schneider frequency conversion speed regulation.
5

Eggshell crushing

 1. The main frame is made of food-grade SUS304 stainless steel. The plate thickness is sus304 2.0mm plate. The body support tube is sus304 50*50*2.0mm. The whole machine is smooth and burr-free.
2. Chain: Use 304 stainless steel chain.
3. Motor power: 380v/400w, speed ratio: 1:15, brand: Haofeng. Schneider frequency conversion speed regulation.
6

Shelling machine

 1. The main frame is all made of food-grade SUS304 stainless steel. The plate thickness is sus304 2.0mm plate. The body support tube is sus304 40*40*2.0mm. The whole machine is smooth and has no burrs.
2. Chain: Use 304 stainless steel chain.
3. Motor power: 380v/400w, speed ratio: 1:5, brand: SEV.
4. The shelling hose is made of natural latex, which has the advantages of wear resistance, crack resistance and long service life. It greatly reduces the breakage rate of quail eggs, has a simple structure and a low failure rate.
5. Quantity: 2 units
7

White egg conveyor

 1. The main frame is all made of food-grade SUS304 stainless steel. The plate thickness is sus304 2.0mm plate. The body support tube is sus304 38*38*2.0mm. The whole machine is smooth and has no burrs. The conveying device adopts SUS304 stainless steel pipe for conveying.
2. Chain: Use 304 stainless steel chain.
3. Motor power: 380v/200w, speed ratio: 1:100, brand: JSCC
8

Eggshell conveyor

 1. The main frame is all made of food-grade SUS304 stainless steel. The plate thickness is sus304 2.0mm plate. The body support tube is sus304 38*38*2.0mm. The whole machine is smooth and has no burrs. The conveying device adopts mesh chain conveying.
2. Chain: Use 304 stainless steel chain.
3. Motor power: 380v/120w, speed ratio: 1:40 Brand: ZD.
