180 Degree LR and SR Elbow Butt Welding Pipe Fittings Seamless Carbon Steel A105 Pipe Fittings SCH5-STD-SCH XXS
180 Degree LR and SR Elbow Butt Welding Pipe Fittings Seamless Carbon Steel A105 Pipe Fittings SCH5-STD-SCH XXS
180 Degree LR and SR Elbow Butt Welding Pipe Fittings Seamless Carbon Steel A105 Pipe Fittings SCH5-STD-SCH XXS
180 Degree LR and SR Elbow Butt Welding Pipe Fittings Seamless Carbon Steel A105 Pipe Fittings SCH5-STD-SCH XXS
Specifications
Brand Name :
HNEENERGY
Model Number :
1/2"-48" (butt welding); 16"-120"(welding)
Certification :
ASME, ANSI, DIN, JIS,ISO etc.
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000 Ton per Month
Packaging Details :
wooden case or pallet or as per customers' requirement
Technics :
Butt Welding or welding
Connection :
Seamless or welding
Material :
A105
Standard :
ASME B16.9
Wall Thinkness :
SCH5-STD-SCH XXS
Customized support :
OEM, ODM
Description

Product Description

  • 90°Carbon Steel Elbow
  • LR/SR Elbow BW180°

180 Degree LR and SR Elbow Butt Welding Pipe Fittings Seamless Carbon Steel A105 Pipe Fittings SCH5-STD-SCH XXS

ASME B16.9

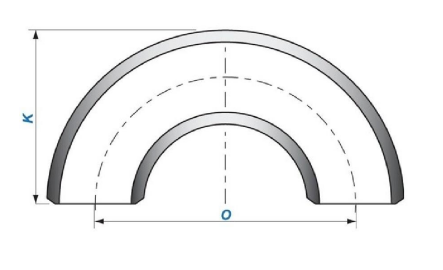

Nominal Size Outside Diameter at Bevel Center to Center Back to Face
180°Returns
DN NPS OD O K
LR SR LR SR
15
20
25		 1/2
3/4
1		 21.3
26.7
33.4		 76
76
76

51

 48
51
56

41
32
40
50		 1 1/4
1 1/2
2		 42.2
48.3
60.3		 95
114
152		 64
76
102		 70
83
106		 52
62
81
65
80
90
100		 2 1/2
3
3 1/2
4		 73.0
88.9
101.6
114.3		 190
229
267
305		 127
152
178
203		 132
159
184
210		 100
121
140
159
125
150
200		 5
6
8		 141.3
168.3
219.1		 381
457
610		 254
305
406		 262
313
414		 197
237
313
250
300
350		 10
12
14		 273.0
323.8
355.6		 762
914
1067		 508
609
711		 518
619
711		 391
467
533
400
450
500		 16
18
20		 406.4
457.0
508.0		 1219
1372
1524		 813
914
1016		 813
914
1016		 610
686
762

550
600
650

22
24
26

559.0
610.0
660.0

 1676
1829		 1118
1219		 1118
1219		 838
914

  • Details

180 Degree LR and SR Elbow Butt Welding Pipe Fittings Seamless Carbon Steel A105 Pipe Fittings SCH5-STD-SCH XXS

  • Our company can produce carbon steel, stainless steel, and alloy steel pipe fittings according to standards such as ASME/ANSI, JIS, DIN, ISO etc. The varieties include equal diameter tees, reducing tees, tees, elbows, cross, concentric reducer, eccentric reducer etc.We provide the very best quality pipe and fittings, prompt delivery and reliable services at competitive prices.
