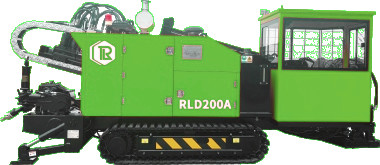

7T Small HDD Machine Horizontal Drilling Machine Large Power
7T Small HDD Machine Horizontal Drilling Machine Large Power
7T Small HDD Machine Horizontal Drilling Machine Large Power
7T Small HDD Machine Horizontal Drilling Machine Large Power
7T Small HDD Machine Horizontal Drilling Machine Large Power
7T Small HDD Machine Horizontal Drilling Machine Large Power
Specifications
Brand Name :
RUNLINE
Model Number :
RLD200A/AJ
Certification :
ISO9001/CE
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
20 SETS PER MONTH
Delivery Time :
5-8 WORKING DAYS
Name :
Small HDD Machine
KEYWORDS :
Horizontal Directional Drilling Machine
BRAND :
RUNLINE
Standard :
ISO9001/CE
Orign :
CHINA
Description

Main Performance Characteristics

1. The machine is equipped with Cummins engine, with high efficiency, large power, and strong ability in construction.

2. Rotation adopts American Eaton large torque motor driving directly, with large torque, stable performance, and two

gears regulation. Push & pull adopts American Eaton motor and three gear speed regulation. The construction speed

is far ahead of other manufacturers in the same industry.

Driving head reserves reinforced power push & pull force, which expands the scope of drilling constructions.

3. It is equipped with hydraulic gear pump with military technology. Steel track walks by wire control, which is convinient

for loading & unloading and transferring.

4. Operation table adopts main machine construction manner with comfortable operation, which greatly reduce workers

fatigue level, broad vision, and comfortable seat.

5. Equipped with 60*3000mm drill rod, the machine uses less field area, meeting the requirement for high efficiency

construction in small space.

6. The electric design is resonable with low failure rate, which is easy ro maintain.

7. The rig shape is beautiful, easy to repair, which fully show the desgin concept of "people-oriented".

Technical Specifications:

Engine 110/2200 KW Dimension (L*W*H) 5880X1720X2150mm
Max thrust force 200 KN Weight 7 T
Max Pullback force 200 KN Diameter if drill rod Φ60 mm
Max Torque 6000 N.M Length of drill rod 3 m
Max rotary speed 180 rpm Max dia of pullback pipe Φ150~700 mm
Max push& pull speed 38 m/min Max construction length 500 m
Max mud pump flow 250 L/min Incidence angle 11~20°
Max mud pressure 8 ± 0.5 Mpa Climbing angle 14°
