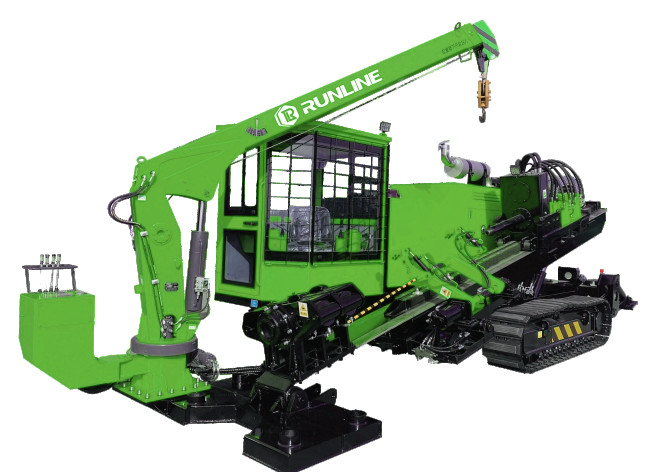

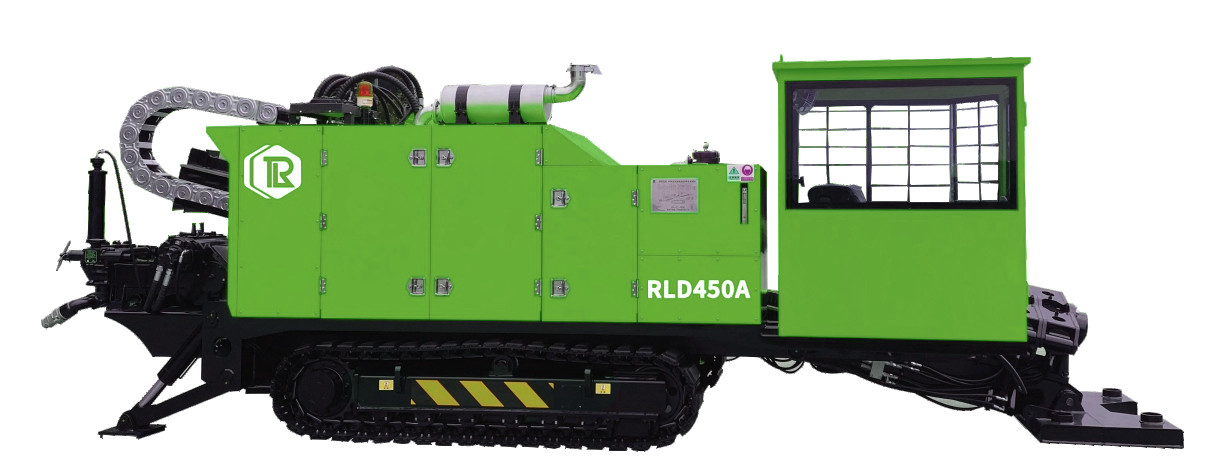

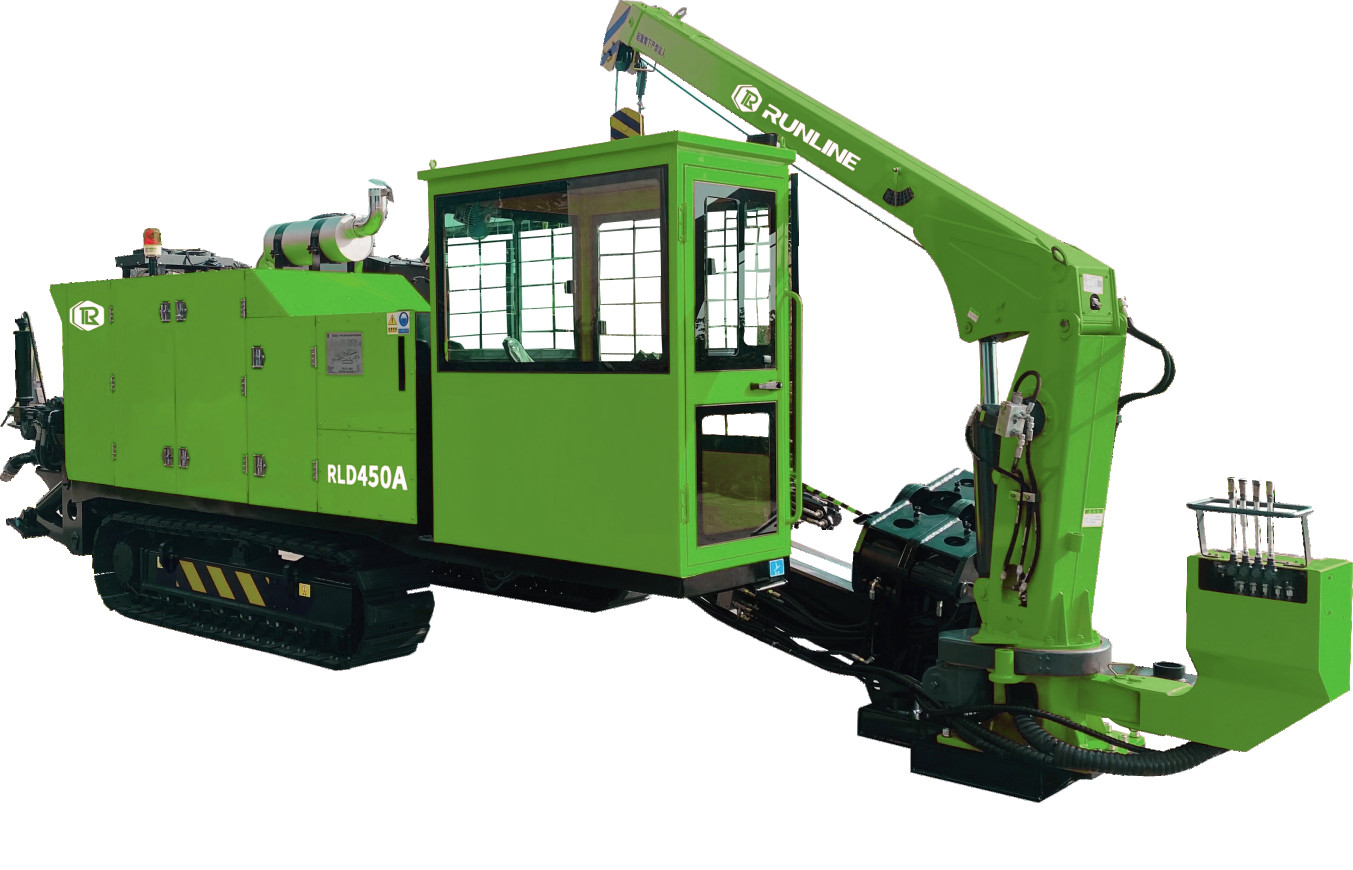

Electric Horizontal HDD Drilling Machine Wireless Walking System
Electric Horizontal HDD Drilling Machine Wireless Walking System
Electric Horizontal HDD Drilling Machine Wireless Walking System
Electric Horizontal HDD Drilling Machine Wireless Walking System
Electric Horizontal HDD Drilling Machine Wireless Walking System
Electric Horizontal HDD Drilling Machine Wireless Walking System
Electric Horizontal HDD Drilling Machine Wireless Walking System
Electric Horizontal HDD Drilling Machine Wireless Walking System
Specifications
Brand Name :
RUNLINE
Model Number :
RLD450A
Certification :
ISO9001/CE
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
20 SETS PER MONTH
Delivery Time :
5-8 WORKING DAYS
Name :
HDD Machine
Keywords :
Horizontal Directional Drilling Machine
SIZE :
Medium
STANDARD :
ISO9001/CE
Origin :
CHINA
Brand :
RUNLINE
Description

Main Performance Characteristics:

1. Close - circuit system is adopted for rotation and push &pull both, which increse work efficiency by 15-20%, and

totally save 15-20% energy compared with traditional system.

2. Rotation and Thrust motor all use Poclain motors, realizing more stable and reliable control and quicker response.

3. It is equipped with Cummins engine specialized in engineering machinery with strong power.

4. Wireless walking system ensures the safety for walking and transferring.
5. Newly developed reversible manipulator is convenient for loading and unloading drill rod. which can greatly reduce

the workers labor intensity and improve work efficiency.

6. Applicable for φ 89×3000mm drill rod, the machine its moderate field area, meeting the requirement for high

efficiency construction in small downtown district.

7. Main hydraulic components are from the international first-class hydraulic components manufacturer, which can

greatly improve the reliability of the product performance and safety.

8. Electric design is reasonable with low failure rate, which is easy to maintain.

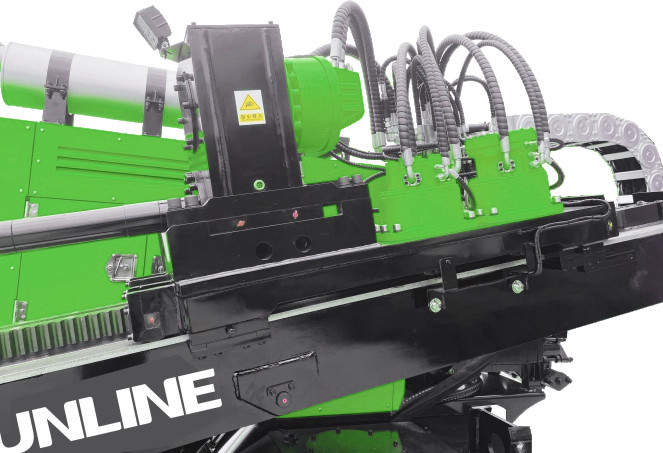

9. Rack & pinion model is adopted for push & pull, which ensures high efficiency, stable work and convenient maintenance.

10. Steel track with rubber plate can be loaded heavily and walk on all kinds of roads.

Technical Specifications:

Engine 194/2200 KW Dimension (L*W*H) 7800X2240X2260mm
Max thrust force 450 KN Weight 13 T
Max Pullback force 450 KN Diameter if drill rod Φ89 mm
Max Torque 25000N.M Length of drill rod 3 m
Max rotary speed 138 rpm Max dia of pullback pipe Φ1400 mm
Max push& pull speed 42 m/min Max construction length 700 m
Max mud pump flow 450 L/min Incidence angle 11~20°
Max mud pressure 10 ± 0.5 Mpa Climbing angle 14°
