Specifications
Supply Ability :
50000 pieces/month
Rear Interfaces :
6*Intel I225 / I226V 2.5G LAN ports, 1*DC 12V
Material :
Aluminum alloy
Model Number :
X56
Memory :
2*SODIMM slots, support dual channel DDR4 3200MHz memory, up to 32GB
MOQ :
1 Piece
Delivery Time :
15 work days
OS Support :
Win10, Win11, Linux
Function :
Wake on LAN / PXE
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Front Interfaces :
1*power button, power indicator + HDD indicator, 1*ATX power on switch, 1*CMOS clear switch, 1*HD-MI 2.0, 1*DP 1.4, 1*SIM card slot, 2*USB2.0, 1*Cisco standard RS232 serial port, 2*USB3.1
Motherboard size :
120mm x 120mm
Price :
245.23usd
Fan header :
Back mounted CPU fanless cooling design, with 1*4-pin CPU fan header reserved
Certification :
Ce, Rohs, Sgs
Network :
6*Intel i225 or i226 2.5G network ports
Place of Origin :
China
Storage :
1*7-pin SATA 3.0 hard drive interface, transfer rate up to 6Gbps, 1*M.2 Key-M 2280 SATA SSD slot / NGFF2280
Packaging Details :
Color Box
Watchdog :
Supports hardware reset function (256 levels, 0~255 seconds)
Brand Name :
Helor PC
Processor System :
Intel Celeron J6412 Processor
Description

Soft Router Intel Celeron J6412 Processor Soft Router With 6 Lan 1 HD-MI 1 DP


Firewall Mini PC Product Introduction

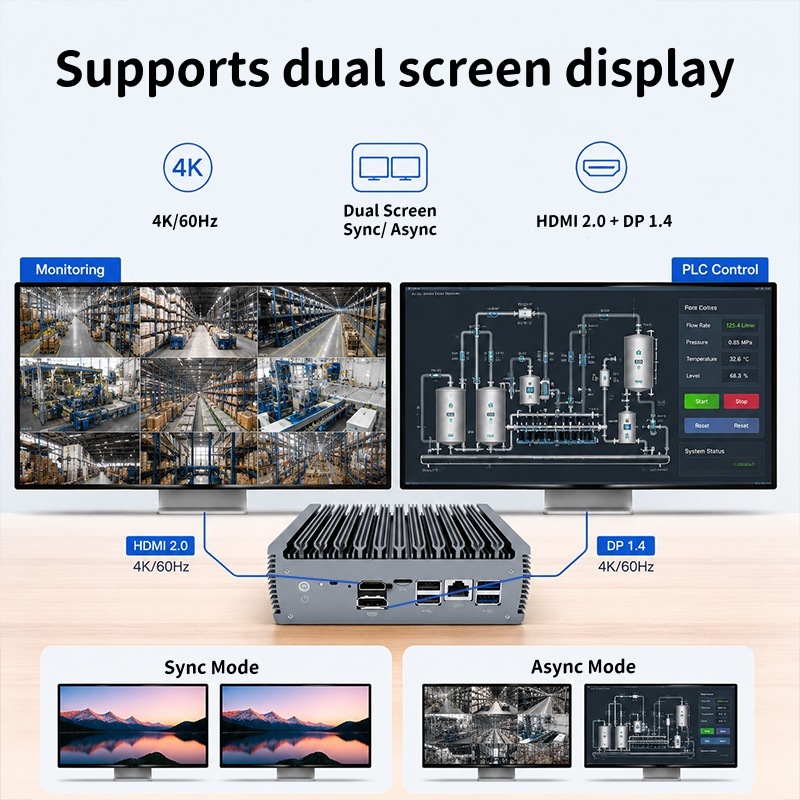

This Router PC can be equipped with 6*Intel I225 or I226 2.5G network adapters and supports Wake-on-LAN / PXE, making it suitable for software routing, industrial control and server deployment scenarios. It features HD-MI 2.0 + DP 1.4 dual video interfaces that support synchronous/asynchronous dual display output up to 4K@60Hz for flexible multi screen operation. For memory, it adopts 2*SODIMM slots supporting dual-channel DDR4 3200MHz RAM with a maximum expandable capacity of 32GB. In terms of storage, it comes with 1*M.2 Key-M 2280 SATA SSD (NGFF2280) slot plus 1*7-pin SATA3.0 hard drive interface with a transfer speed of up to 6Gbps, fully meeting storage requirements such as data caching and log retention.

Firewall Mini PC Product Specifications


Processor System Intel Celeron J6412 Processor
Extension slot 1*Mini-PCIe slot, supports USB, WiFi module, or 4G module.
BIOS 128Mb Flash ROM
GPU Intel UHD Graphics for 10th Gen Intel Processors
Power Input 12V 5A
Operating Temperature -10℃ ~ 60℃
Storage Temperature -20°C ~ 70°C
Storage Humidity 5% ~ 95% relative humidity, non condensing
Installation method Supports desktop, embedded and wall mounted
Dimensions 155*127*52mm

Firewall Mini PC CPU Performance


Powered by Intel Celeron J6412 processor for smooth operation. It adopts a 4 core 4 thread architecture with a base frequency of 2.0GHz, equipped with 1.5MB L2 cache and 4MB L3 cache to reduce data latency and improve packet forwarding performance. Featuring ultra low 10W TDP, it is ideal for long term uninterrupted operation.

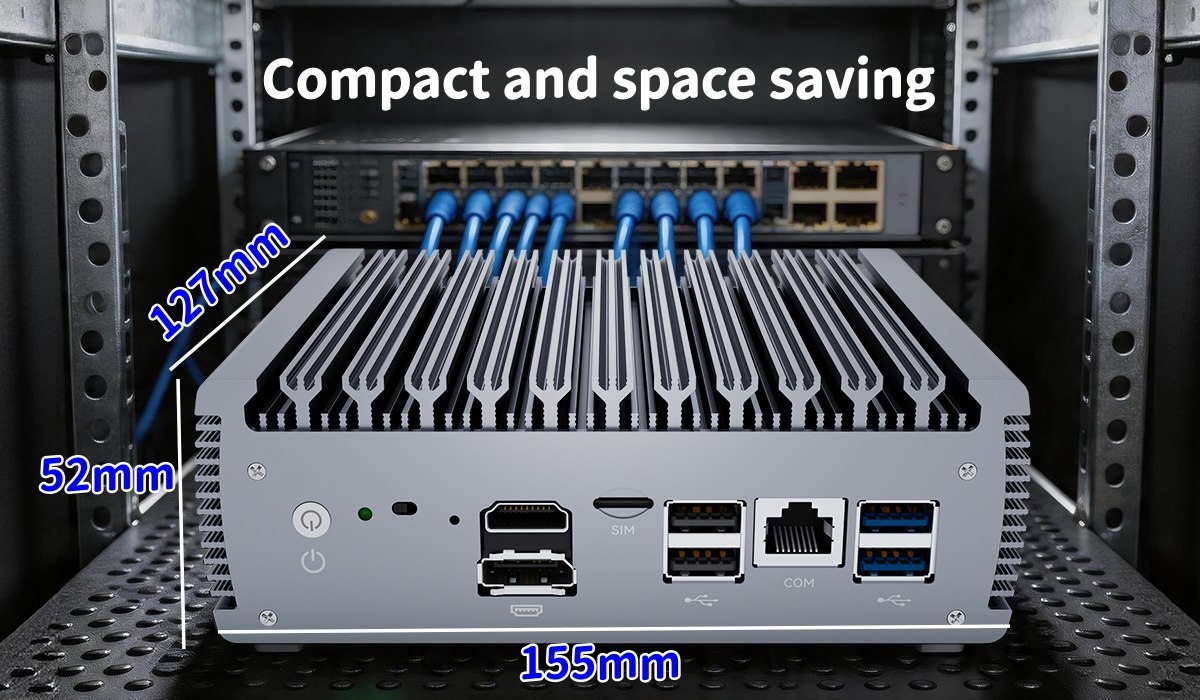

Firewall Mini PC Compact Chassis


This box router boasts a compact size, which can be easily embedded into industrial control cabinets, equipment enclosures and limited installation spaces. It supports wall mounted, embedded and desktop installation methods, greatly saving deployment space and fitting industrial scenarios with space constraints.

Intel Celeron J6412 Processor Soft Router With 6 Lan 1 HD-MI 1 DP

Firewall Mini PC Application Scenarios


This network router adapts to multiple industries to satisfy networking demands across diverse use cases. It is widely deployed in enterprise networking (multi-port routers, gateways, firewalls), industrial automation (industrial monitoring, PLC control), communications (4G gateways, base station auxiliary equipment), and office server rooms (cloud terminals, multi-display terminals, small server deployment).

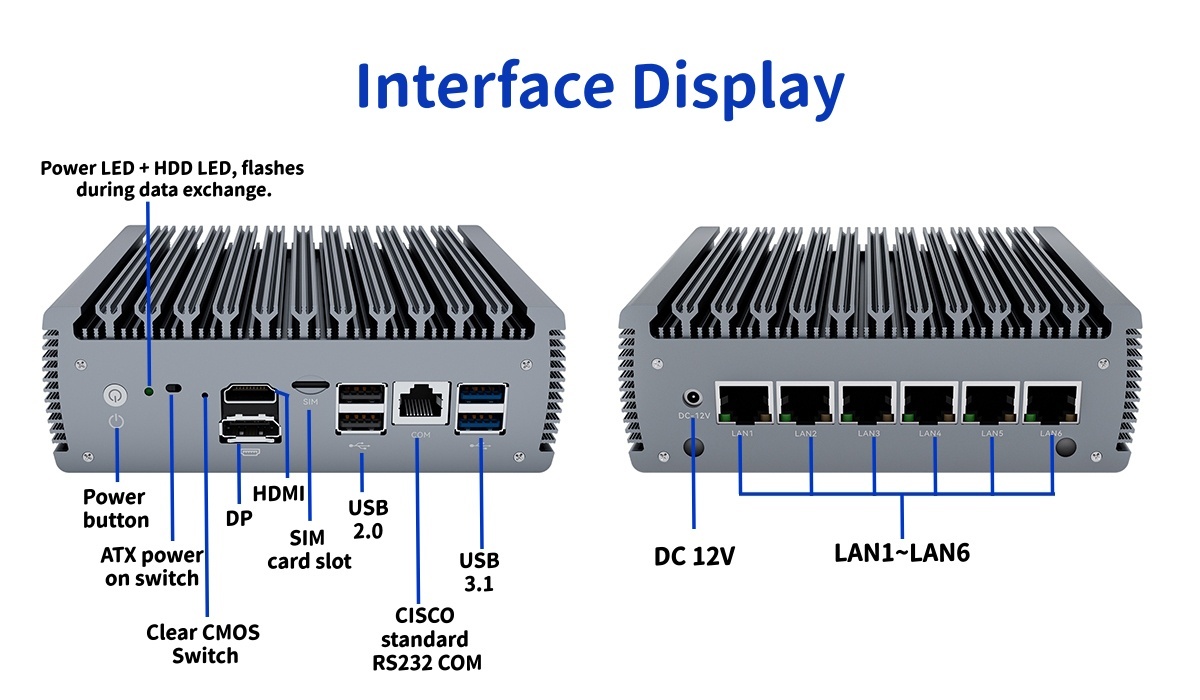

Firewall Mini PC Interface Description


This computer router features clearly partitioned front and rear interfaces. Front panel: 1*power button, power indicator + HDD indicator, 1*ATX power on switch, 1*CMOS clear switch, 1*HD-MI 2.0, 1*DP 1.4, 1*SIM card slot, 2*USB2.0, 1*Cisco standard RS232 serial port, 2*USB3.1;
Rear panel: 6*Intel I225 / I226V 2.5G LAN ports, 1*DC 12V.

Intel Celeron J6412 Processor Soft Router With 6 Lan 1 HD-MI 1 DP

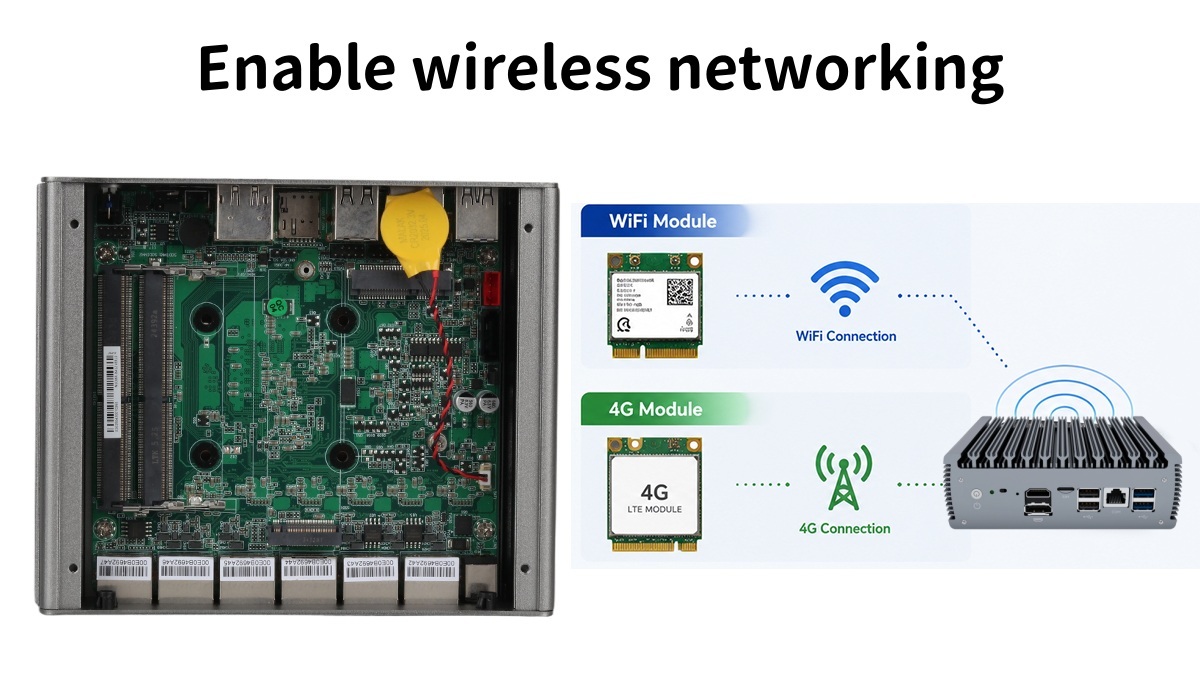

Firewall Mini PC Expansion Features


This 6 Ethernet port mini PC is fitted with 1*Mini PCIe slot based on USB protocol, compatible with WiFi modules or 4G modules. For industrial sites and edge locations without wired network cabling, WiFi or 4G modules enable wireless connectivity to resolve issues of uncovered wired networks.
