Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM
Specifications
Model Number :
X44
Memory :
1*DDR4, up to 16GB
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
OS Support :
Win8/10, Ubuntu / Linux / CentOS / iKuai / LEDE / ESXi 6.7
Rear Interfaces :
6*Gigabit Ethernet ports, 1*Power connector
Supply Ability :
50000 pieces/month
Function :
Wake-on-LAN, PXE Boot, Power-on by AC power loss
Front Interfaces :
4*USB3.0, 1*RS232 COM, 1*RJ45 COM, 1*HD-MI, 1*Reset button, 1*Power button
Price :
312.27usd
USB :
The motherboard supports expansion with an additional 2*USB 2.0 ports
Certification :
Ce, Rohs, Sgs
Network :
6*Intel i225 or i226 2.5G network ports
MOQ :
1 Piece
Delivery Time :
15 work days
Serial Port :
Supports expansion to COM3
Chassis Material :
High-strength aluminum alloy reinforced housing
Brand Name :
Helor PC
Processor System :
Intel Core i5 8279U
Place of Origin :
China
Storage :
1*SATA 2.5" HDD (maximum data transfer rate: SATA 3.0), 1 *Full-Size mSATA socket
Packaging Details :
Color Box
Expansion :
Supports 1*Full-Size Mini PCIe slot for WiFi / 3G / 4G modules
Description

Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM


Firewall Mini PC Product Introduction

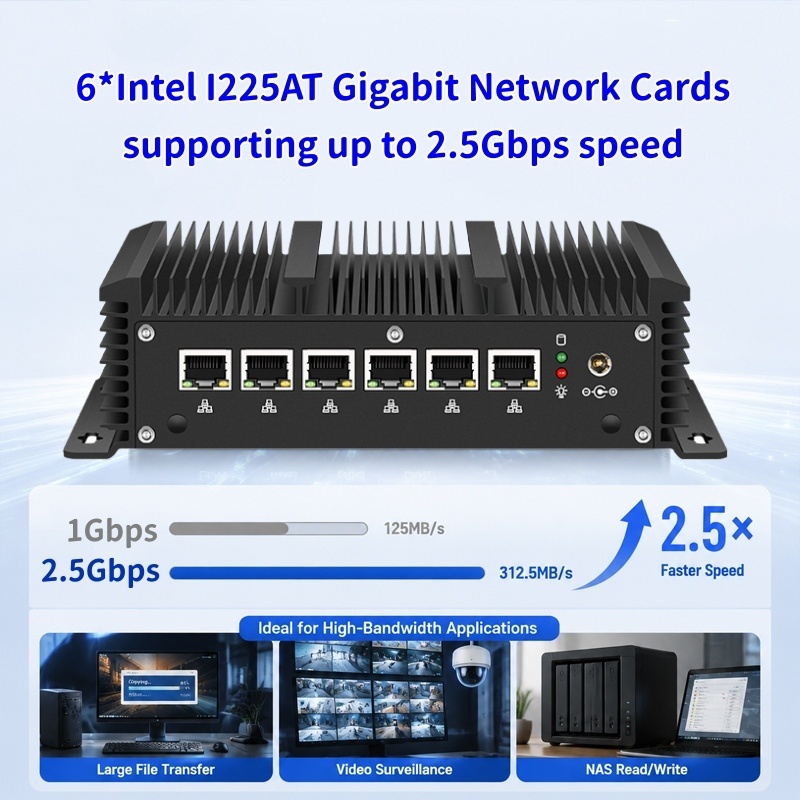

This mini router PC is equipped with 6*Gigabit RJ45 Ethernet ports and features 6*Intel I225/I226 2.5GbE network cards, delivering network speeds up to 2.5 times faster than standard Gigabit Ethernet. It is suitable for soft routers, industrial gateways, NAS storage, and mini PC applications requiring long-term 24*365 days operation. The device is equipped with RS232 serial ports and an RJ45 COM interface, making it suitable for industrial applications such as industrial automation, equipment debugging, and data acquisition. It features DDR4 memory slots supporting up to 16GB RAM, allowing multiple operating systems to run simultaneously with smooth performance. Even under long-term high-load operation, the system maintains stable performance and reliable network connectivity. For storage, it supports 1*SATA 2.5" HDD (maximum data transfer rate: SATA 3.0) and 1 *Full-Size mSATA socket, providing a balance between high-speed read/write performance, fast response, and large-capacity data storage requirements.


Firewall Mini PC Product Specifications


Processor System Intel Core i5 8279U
Power Input 12V 5A
Operating Temperatur -20℃~65℃
Operating Humidity 5%–95% relative humidity, non-condensing
Storage Temperature -20℃~75℃
Installation method Supports desktop
Dimensions 209*150*58mm
Weight

1.3KG

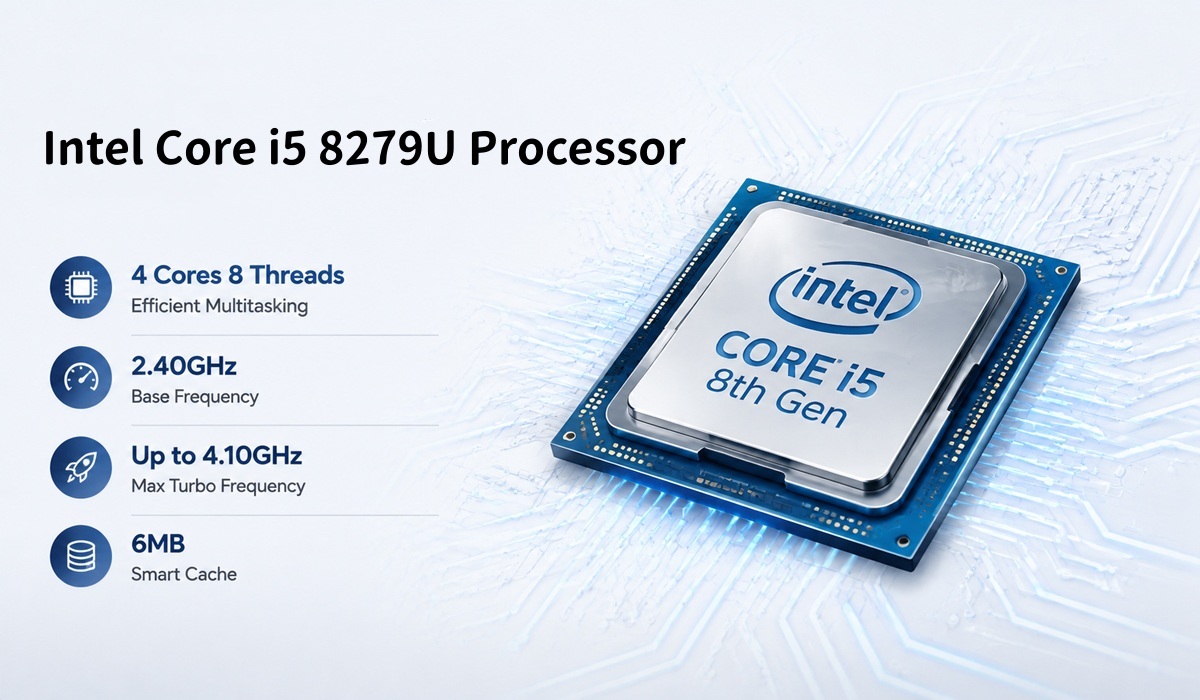

Firewall Mini PC CPU Performance


This computer router is powered by the 8th generation Intel Core i5 8279U processor with a 4 core 8 thread design for outstanding multi task processing capability. Its 2.40 GHz base frequency enables low power daily time operation, while the maximum 4.10 GHz turbo frequency delivers powerful burst mode performance. Built in 6 MB smart high speed cache guarantees fast software response on the mini PC, which easily handles heavy duty tasks including multi program launching and office computation.

Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM

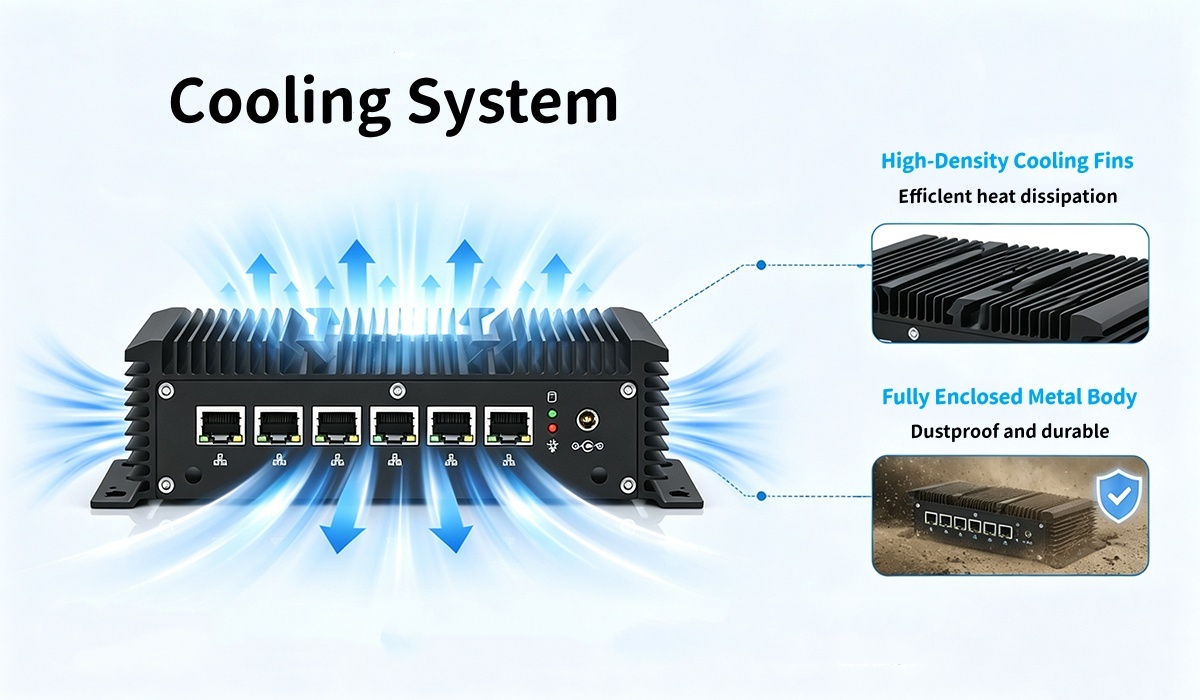

Firewall Mini PC Cooling System


This mini router adopts a fanless fully enclosed metal chassis paired with high density cooling fins for excellent heat dissipation. The sealed housing provides dust‑proof protection and supports round the clock non stop operation.

Intel Core i5 8279U Processor Soft Router 6 LAN 1 RS232 COM 1 RJ45 COM

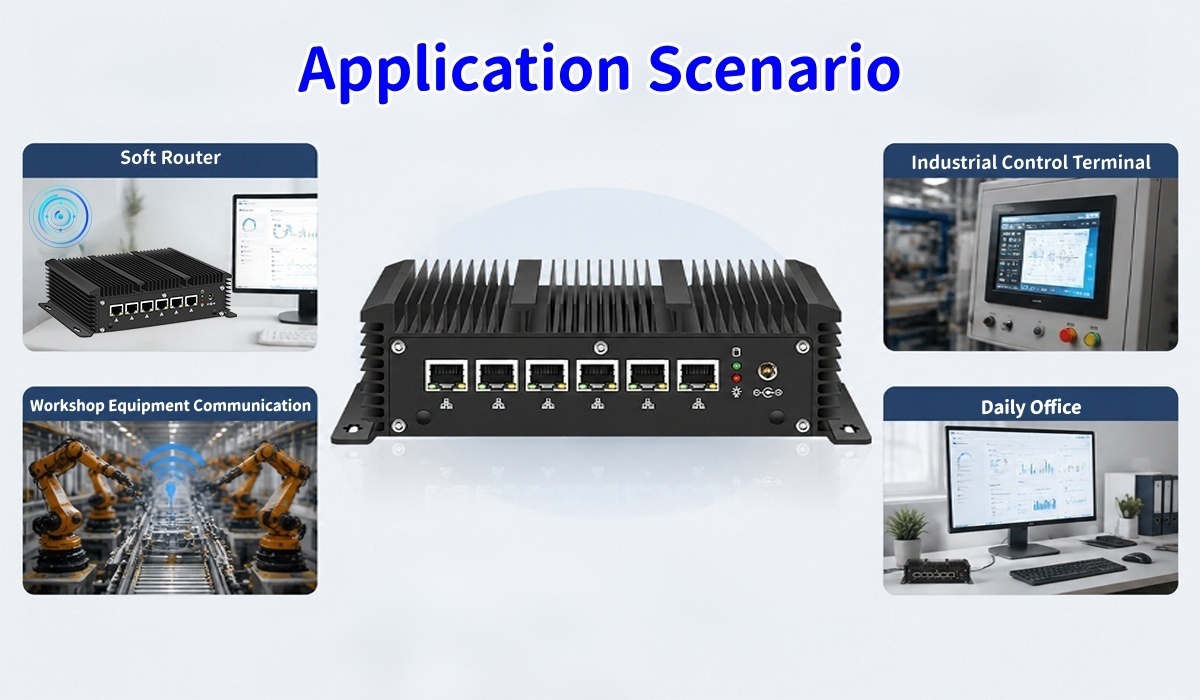

Firewall Mini PC Application Scenarios


This network router device fits a wide range of professional scenarios. It is widely deployed for enterprise grade broadband gateways, industrial control terminals, workshop device communication, daily office networking and other commercial and industrial fields.

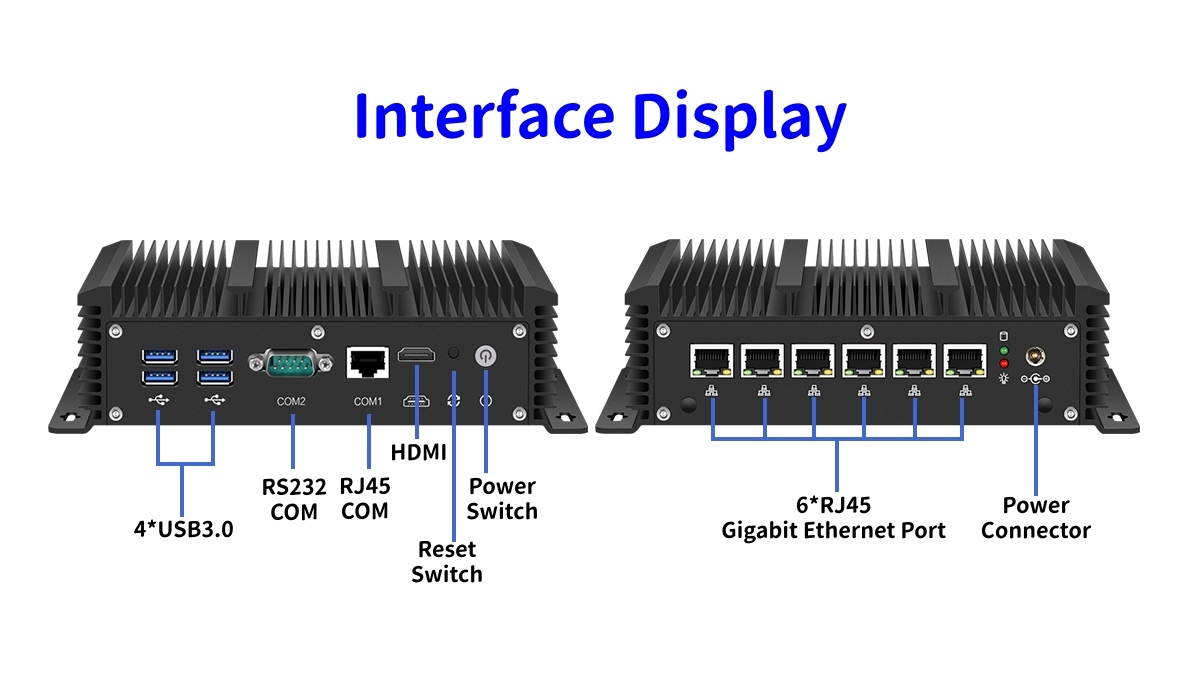

Firewall Mini PC Interface Description


This computer router features a rich interface configuration. The front interfaces are equipped with: 4*USB3.0, 1*RS232 COM, 1*RJ45 COM, 1*HD-MI, 1*Reset button, 1*Power button; The rear interfaces include: 6*Gigabit Ethernet ports, 1*Power connector.

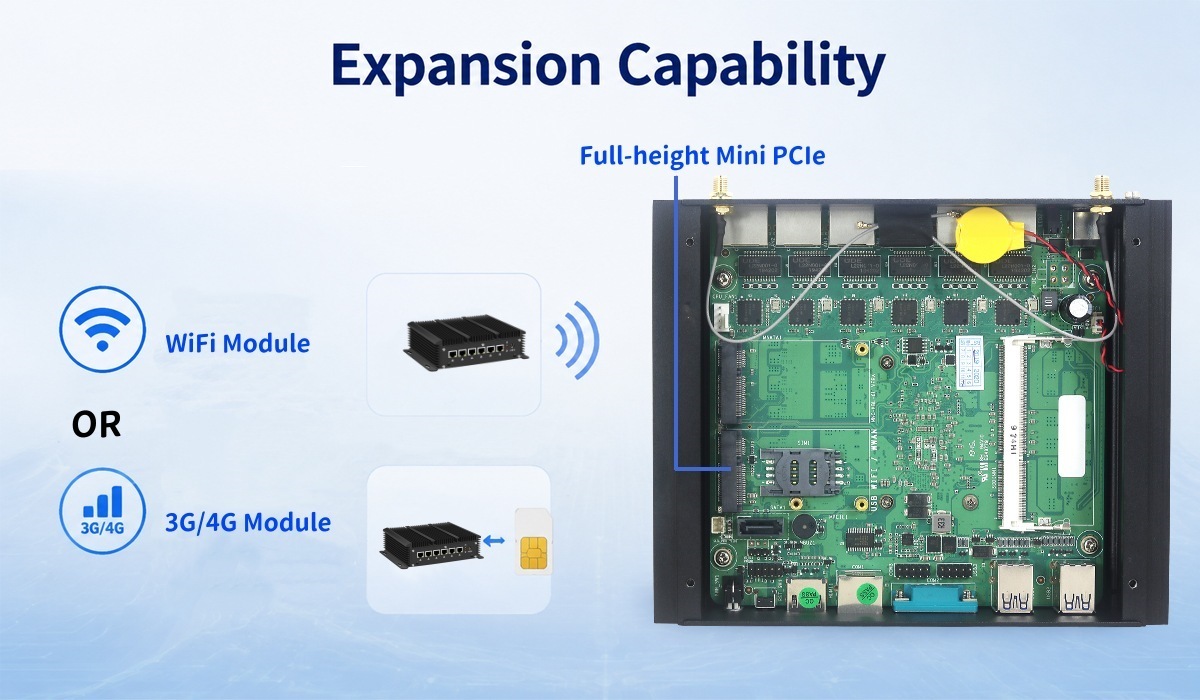

Firewall Mini PC Expansion Features


Supports 1*Full-Size Mini PCIe slot for WiFi / 3G / 4G modules. By installing a WiFi module, the device can achieve wireless network connectivity. In outdoor environments, remote areas, or locations without wired broadband access, users can install a 3G or 4G module and insert a SIM card to enable mobile network connectivity.
