Intel Core U5 135U Processor Fanless Industrial Mini PC With

2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces


Product Introduction of Mini Industrial PC


This industrial mini PC powered by Intel Core 135U processor delivers balanced and comprehensive hardware configurations, catering to diverse scenarios including
industrial production, corporate office work, multimedia monitoring and outdoor networking. It is equipped with dual Realtek 8111H Gigabit RJ45 Ethernet ports to
deliver outstanding high-speed wired transmission, meeting networking demands such as daily corporate data exchange, server room routing, small local area network
setup and security surveillance data backhaul. Built-in 2*RS232 industrial serial ports enable seamless connection with PLCs, sensors and other industrial peripherals.
For video output, it features 2*HD-MI ports and 1*DP port supporting multi-screen split display, perfectly suited for industrial visualization, multi-station office work and
multi-view monitoring dispatch.


Product Specifications of Mini Industrial PC


Processor System Core U5 135U
Memory 1*DDR5 SOIMM, up to 64GB
Network 2*GbE RJ45 Realtek 8111H
Storage

1*M.2 2280 (NVMe protocol only), 1*2.5-inch HDD/SSD
Front Interfaces
1*Power Button, 4*USB3.0, 4*USB2.0, 2*COM (RS232)
Rear Interfaces
2*WiFi Antenna Ports, 1*Audio Jack, 1*Microphone Jack, 2*LAN, 1*DP, 2*HD-MI, 1*DC Power Jack
Expansion Slots
1*M.2 2232 WiF, 1*M.2 3042 slot for 3G/4G module, with on-board SIM card slot
Power Input
12V-19V
OS Support

Win10, Win11, Linux
Functions

Supports Watchdog and Diskless Boot


Environmental Adaptability of Mini Industrial PC


This fanless industrial mini PC boasts outstanding environmental adaptability. Engineered for harsh industrial conditions, it features dustproof, moisture-proof, shock
-resistant and wide temperature tolerance properties for long-term stable and reliable operation.

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces


Application Scenarios of Mini Industrial PC


This RS232-equipped mini PC boasts extensive cross-industry compatibility. It can be widely deployed in smart device terminals, digital signage, vending machines,

industrial sites, entertainment venues, commercial institutions, financial facilities, surveillance systems, medical equipment and more vertical sectors.


Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

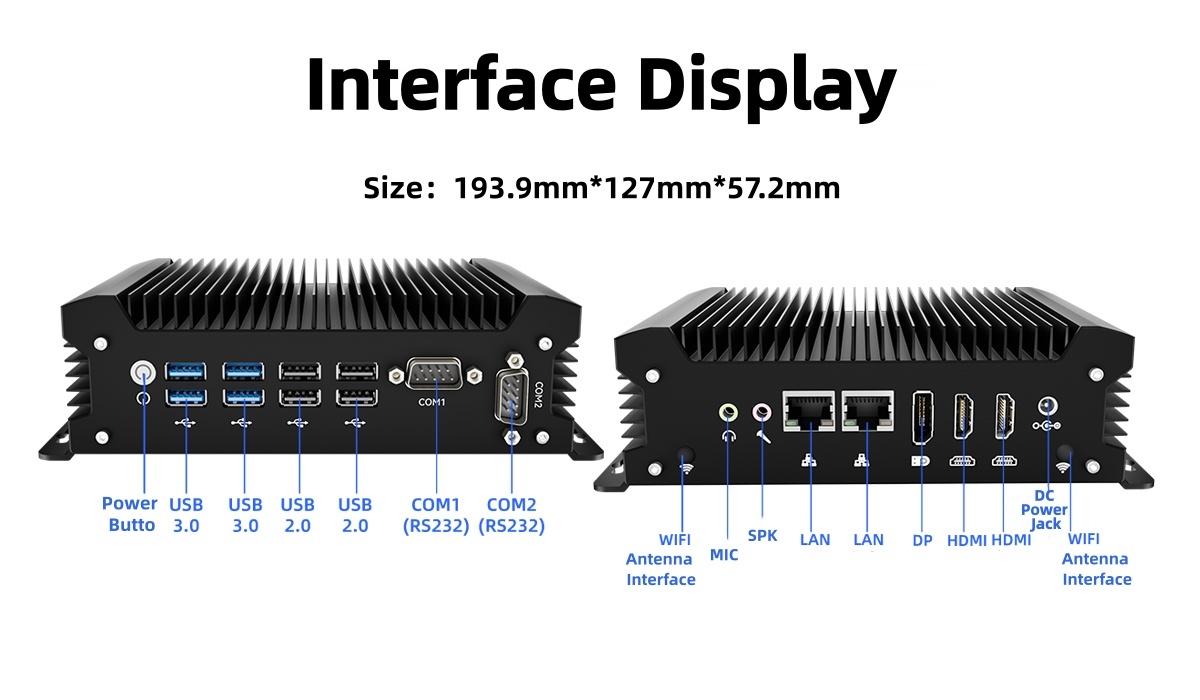

Interface Description of Mini Industrial PC

This industrial mini PC comes with full-range abundant interfaces on front and rear panels: Front Panel: 1*Power Button, 4*USB3.0, 4*USB2.0, 2*COM (RS232);
Rear Panel: 2*WiFi Antenna Ports, 1*Audio Jack, 1*Microphone Jack, 2*LAN, 1*DP, 2*HD-MI, 1*DC Power Jack. It fulfills all-in-one demands for industrial control, office
monitoring, multi-screen operation and peripheral expansion.

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

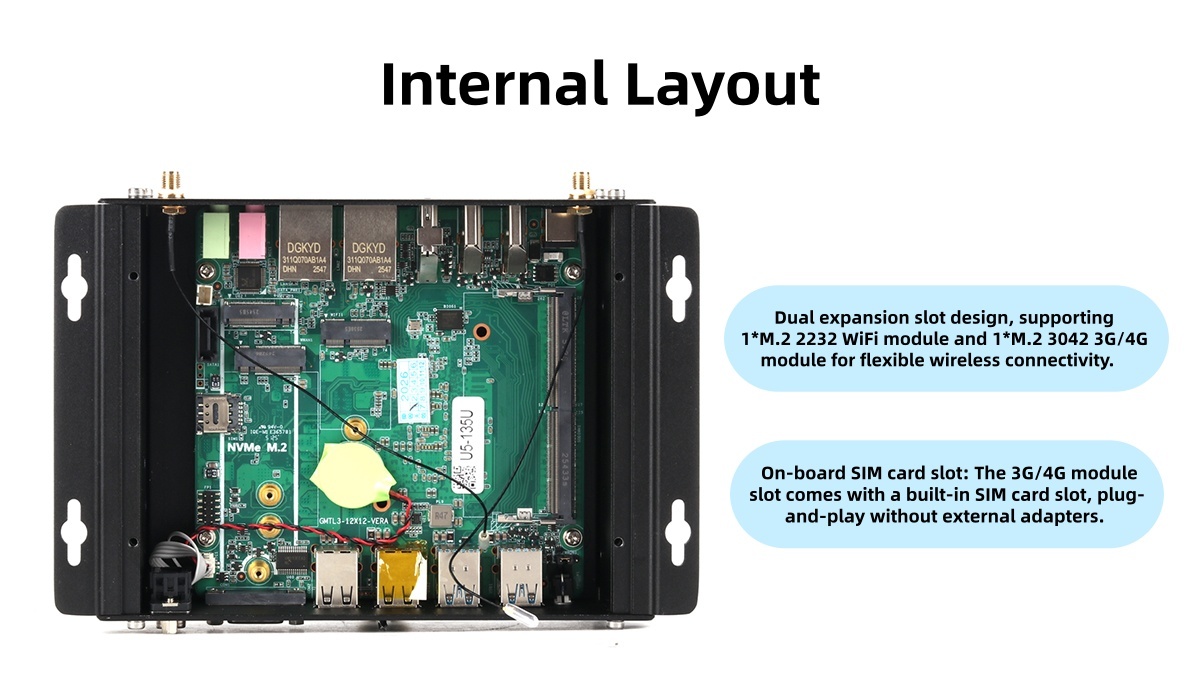

Expandable Functions of Mini Industrial PC


This industrial mini PC adopts dual expansion slot design, supporting 1*M.2 2232 WiFi module and 1*M.2 3042 3G/4G module for flexible wireless connectivity options.
On-board SIM card slot: The 3G/4G module slot integrates a built-in SIM slot, plug-and-play without extra adapters, ideal for mobile network deployment.
Applicable scenarios: Industrial control, security monitoring, edge computing and other equipment requiring dual backup of WiFi and cellular networks.
