Specifications
Model Number :
X56
Memory :
Dual channel DDR4 3200MT/s, up to 64GB.
MOQ :
1 Piece
Delivery Time :
15 work days
OS Support :
Win10, Linux
Function :
PXE boot, Wake on LAN, Watchdog
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Front Interfaces :
1*power button, 4*USB3.1 ports, 1*RS232 COM, 1*HD-MI port
Super I/O :
ITE, supports 1*COM, built in COM2 pin header.
Price :
338.28usd
Video :
Intel Iris Xe Graphics, HD-MI
Temperature Monitoring :
Supports CPU/Motherboard/HDD temperature monitoring
Hardware Monitoring :
Supports 4 in, 4 out GPIO
Supply Ability :
50000 pieces/month
Rear Interfaces :
1*DC-12V, 6 LAN
Material :
Aluminum alloy
Brand Name :
Helor PC
Processor System :
Intel Core i7 1185G7
Certification :
Ce, Rohs, Sgs
Network :
Network 6* Intel i225 NIC
Place of Origin :
China
Storage :
1*SATA 3.0, 1*M.2 2280
Packaging Details :
Color Box
Cooling Method :
Full aluminum alloy ice spike
Description

Intel Core i7 1185G7 Processor Soft Router With 6 LAN 4 USB3.1


Firewall Mini PC Product Introduction


This device is a high performance Router PC. It is equipped with 6*Intel i225 network controllers as core network configuration, supporting Wake on LAN and diskless boot. It enables multi WAN access, internal and external network isolation, and link aggregation, making it ideal for deploying soft routers, gateways and network security equipment. It supports dual channel DDR4 3200MT/s memory, expandable up to 64GB to effortlessly run various applications. For storage, it supports both SATA 3.0 hard drives and high speed M.2 2280 SSDs to meet diverse storage requirements. Built in hardware watchdog and temperature monitoring for CPU, motherboard and hard drive allow automatic system reset in case of anomalies.

Firewall Mini PC Product Specifications


Processor System Intel Core i7 1185G7
Memory Dual channel DDR4 3200MT/s, up to 64GB.
Power Consumption 15W
Power Function Supports Power On After Power Loss
Power Input 12V
Operating Temperature -20°C ~ 60°C
Storage Temperature -40°C ~ 80°C
Storage Humidity 0% ~ 90% relative humidity, non condensing
Installation method Supports desktop and wall mounted
Dimensions 155*126*52mm

Firewall Mini PC CPU Performance


Powered by Intel Core i7 1185G7 processor for smooth operation. With 4 cores and 8 threads, it handles multi tasking and lightweight productivity workloads efficiently. It reaches a maximum turbo frequency of 4.80 GHz to deliver strong burst performance. Equipped with 12 MB Intel Smart Cache, it reduces data access latency and greatly improves efficiency for office work and light content creation.

Intel Core i7 1185G7 Processor Soft Router With 6 LAN 4 USB3.1

Firewall Mini PC Cooling Solution

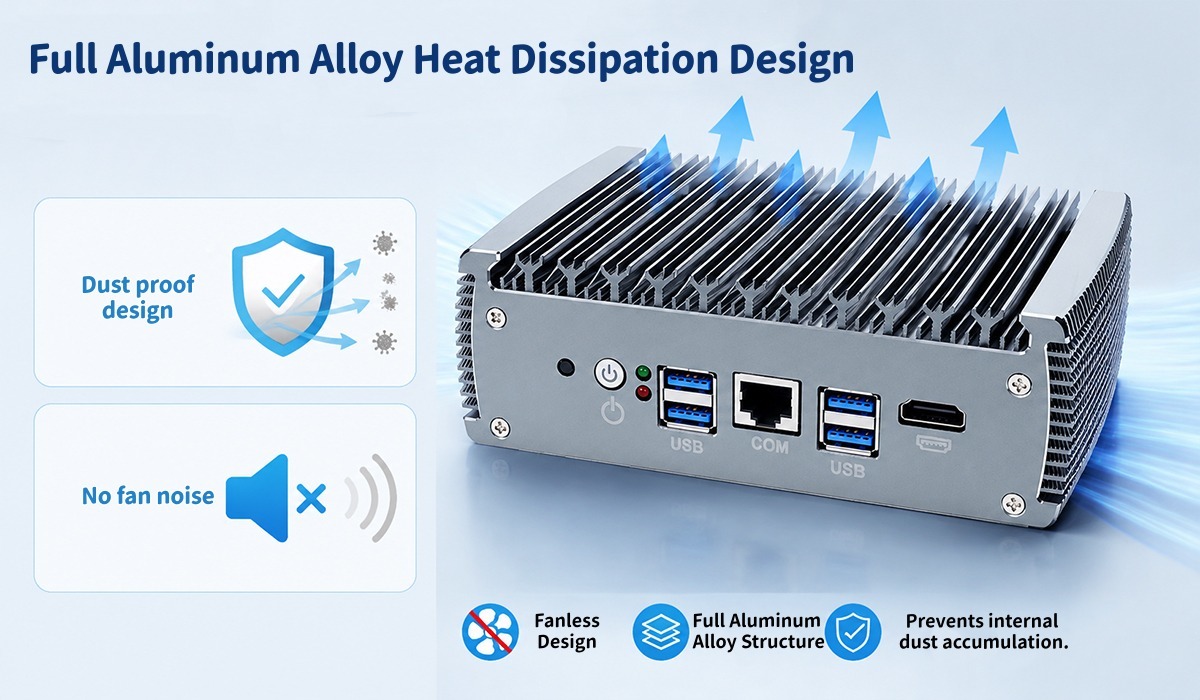

Full aluminum passive cooling design effectively prevents dust accumulation inside the unit and eliminates noise generated by cooling fans.

Intel Core i7 1185G7 Processor Soft Router With 6 LAN 4 USB3.1

Firewall Mini PC Application Scenarios


This network router is widely deployed for enterprise & corporate networks, rental apartments, hotels, security surveillance, small data centers and server rooms.


Intel Core i7 1185G7 Processor Soft Router With 6 LAN 4 USB3.1


Firewall Mini PC Interface Description

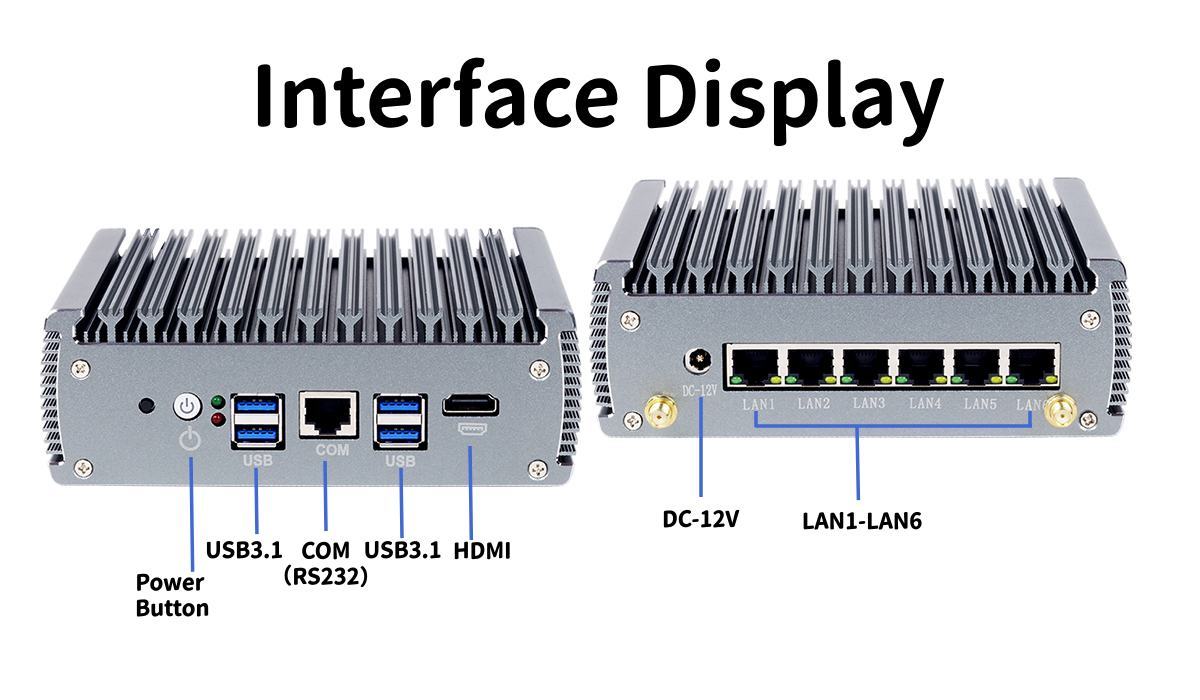

This computer router features well partitioned interfaces. The front panel includes 1*power button, 4*USB3.1 ports, 1*RS232 COM port and 1*HD-MI video output port. The rear panel is equipped with 1*DC-12V power input and 6*Gigabit LAN ports. The native 6*LAN router design balances network forwarding, industrial peripheral connection and display debugging.
