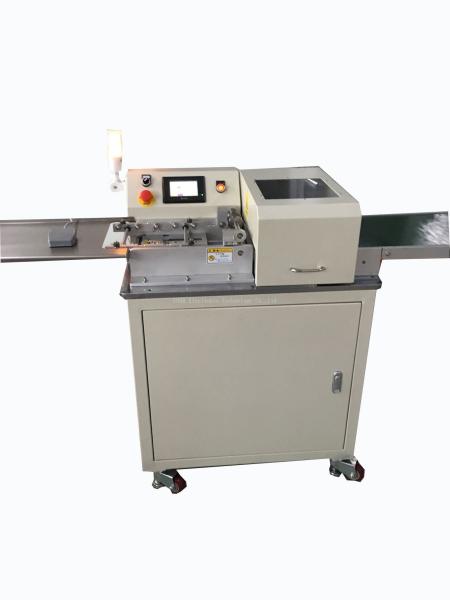

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine
Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine
Specifications
Description

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine



Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine:

1.The machine is equipped with standard upper and bottom 20 groups of blades which can separate the 10 lines or more LED light bars at same time.all blades are made of 2.endurable SKD11 high speed steel.

3.PCB clamping and conveying system ensure precise separating without deformation and burrs.

4.The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

5.Full english operation interface , easy to operate.

Multiple Groups Of Blades PCB Depaneling YSVJ-650 Machine



Features:

● The conveying speed can be adjusted.

● The single separated PCB width is 8-20 mm. Max cutting width 300mm;

● Machine with automatic feeding system;

● Machine is equipped with safety protection device.

● Suitable cutting material of PCB :aluminum ,FR4,glass fiber.

● Equipped with SMEMA connector ,easy to connect with upstream machine

● The machine adopts the touch screen and PLC which can monitor production information.

● MDS-900 is equipped with multiple sets of blades which can separate the whole light

bar board one time.

● The distance between upper and lower cutter can be precisely adjusted, the separating

thickness of PCB range is : 0.8MM-3.0MM.


YSVJ-650- Specifications

Model

YSVJ-650

Total Dimension

L2600*W850*H1050mm

Inlet conveying length

850mm

Outlet conveying length

850mm

Separating blades number

20 groups of upper and lower blades , total:40pcs

Max length of PCB

unlimited

PCB Thickness

0.6-5.0mm

Separating PCB bar number at one time

11 LINES

Separting width of single PCB

8-20MM

Max PCB width

280 mm

Max component height

30 mm

Blade material

SKD11

Blade average lifespan

1,000,000 times (1.2m long , 3mm thick PCB)

Voltage

220V/50Hz or 110V

Machine weight

210 kg

Power

200W
