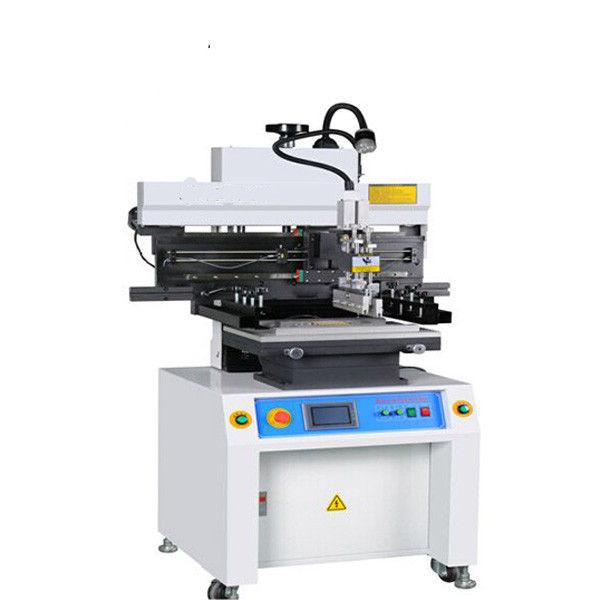

Semi-auto solder paste printer YS-SP600
Semi-auto solder paste printer YS-SP600
Specifications
Description

Semi-auto solder paste printer

Semi-auto solder paste printer YS-SP600

Semi-auto solder paste printer YS-SP600

Feature:

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3.Block can be adjusted before and after the blade, to choose the right printing position.

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.

5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.

6.Can be set to one-way and two-way, a variety of printing methods.

7.With the automatic counting function to facilitate the production of output statistics.

8.Adjustable blade angle, steel blade, rubber scraper are suitable.

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.

10.Printing speed display, can be adjusted.

Specifications:

Model Yush SP600
Dimensions 1400*800*1680mm
Platform size 300×600mm
PCB size 250×550mm
Template size 550×830mm
Printing speed 0-8000mm/min
PCB thickness 0-50mm
PCB fine tuning range Front/side±10mm
Power supply 1PAC220V 50/60HZ
Platform height 850±20mm
Repeatability precision ±0.01mm
Positioning mode Outside/Reference hole
Weight Approx.300Kg
