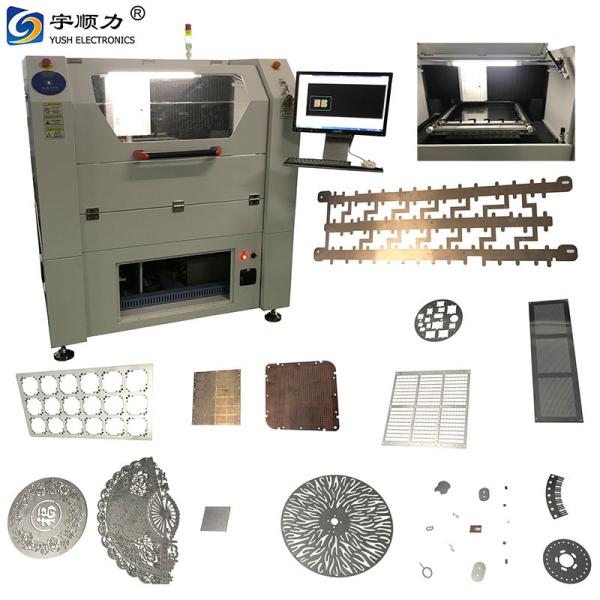

SMT Laser Template Cutting Machine
SMT Laser Template Cutting Machine
Specifications
Description

Can high-precision cutting for stainless steel,carbon steel,galvanized sheet, silicon steel sheets, silicon steel sheets, titanium alloys, copper,brass, aluminum, ceramics, etc.

Model

YSV-6060-200W

YSV-6560-100W

Laser power

50W/100W/200W

50W/100W/200W

Wavelength

1070nm

Beam quality

M²<1.1

Working area

600mm*600mm

650mm*650mm

Clamping size

650mm*720mm

650mm*720mm

Cutting thickness

0.3mm

1.0mm

(Cutting speed)pad/h

19200

24000

(Overall dimension)

1640mm*1380mm*1500mm

(Weight)

2200Kg

(Positioning accuracy)

±2μ

(Repeated positioning accuracy)

±2μ

(Supply voltage)

220V

(Power consumption)

<2KW

(Upper computer)

Adavantech

(Operating software)

SmartCut

(Cut document)

LMD、CNC、DXF

(Auxiliary cutting gas)

(Oxygen)8-10Kg，(Compressed air)16Kg

(Main material)

(savageness granite)





Note:The above model laser power can be ordered according to customer needs.

1. It use iron core linear motor and double driver structure, large thrust, maximum acceleration can reach 2.0G, ensuring precise movement of machine under high speed.

2.Imported IPG fiber laser, stable output power, long life, maintenance-free, smooth hole processing, and ensure the stability of the processing process.

3. Using imported drives from the US, high-end adjustment and tuning algorithms greatly improve cutting performance and ensure machining accuracy

4.The whole machine uses natural marble as the base structure, which is safe and stable.

5.Equipped with a high-precision grating full-closed loop system for real-time feedback to reduce repetitive positioning errors.

6. Low energy consumption, the power consumption of the whole machine is about 2.5KW/h.
