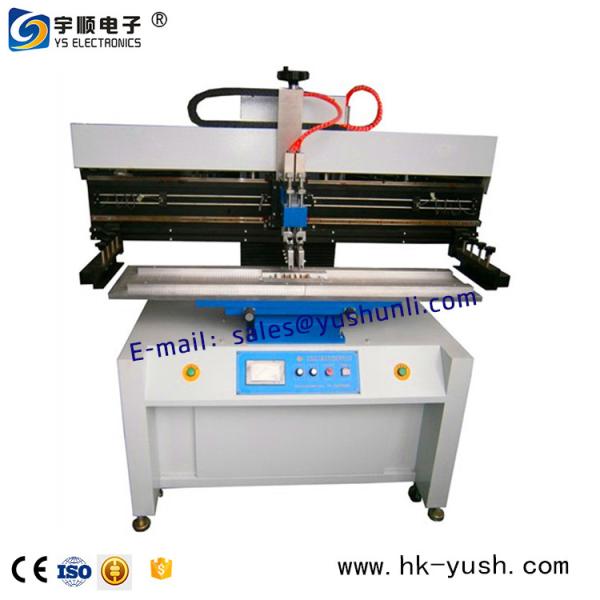

SMT PCB solder paste printing machine
SMT PCB solder paste printing machine
Specifications
Description


Working table size at X,Y direction:

1280X300mm

Max frame size at X,Y direction:

1300X320mm

Max print size of PCB board at X,Y direction:

1200X300mm

Max pcb Stencil Sizes:

L 1260mm*W 430mm

Thickness of PCB

0-100.0mm

Positioning

PCB Outer Or Pin holes Positioning

Range of micro-adjustment: X, Y

Front/back ±10mm R/L ±10mm

Printing accuracy

±0.01mm

Machine repeatability accuracy

±0.02mm

Min internal

0.35mm

Air pressure

0.4-0.6Mpa/4-6kgf/cm2

Power supply

Single phase 220V,50/60Hz,100W

Dimensions

L1600XW900XH1650mm

Weight

(about)300kgs

SMT PCB solder paste printing machine


Overview

Quick Details
Warranty:
1 Year
Color & Page:
Single Color
