YSL-STAR | SMT PRINTER

Above & Beyond Your Expectation

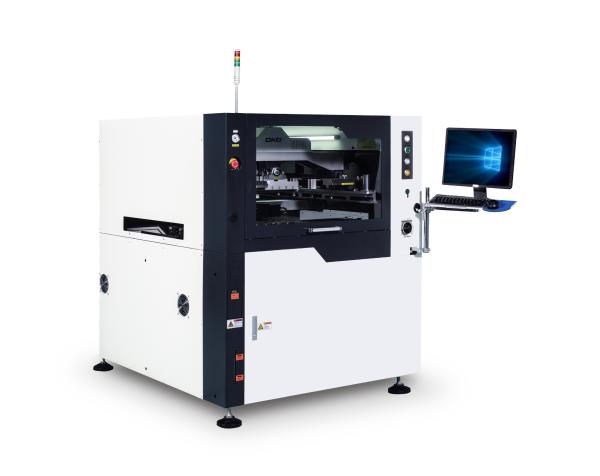

The Fully Automatic SMT Printer YSL-STAR features machine vision technology for automatic identification, employing a high-precision servo drive dynamic system to ensure fast and accurate alignment.

Computer control enables effortless adjustment of printing height, squeegee pressure, printing stroke, speed, cleaning cycle, and other printing parameters with just a simple click

The YSL-STAR is equipped with features such as auto stencil positioning, automatic top clamp & motorized side clamp, and stencil lock. These capabilities help ensure superior printing quality with minimal human intervention.


STANDARD FEATURES



Fully Automatic SMT Printer YSL-Star features machine
Back to Back Ready


2 machines back-to-back are perfect match for dual-lane SMT line. Therefore, the internal structure of the YSL-Star is pre-assembled in back-to-back configuration. It can be used as a stand-alone unit, or additional equipment can be seamlessly added in a back-to-back mode in future.

Fully Automatic SMT Printer YSL-Star features machine


Auto Stencil Positioning

The stencil Y position is adjustable via user interface, and the settings can be saved and reapplied when replacing the stencil. This function significantly reduces human errors and saves time in readjusting stencil position.


Fully Automatic SMT Printer YSL-Star features machine


Stencil Lock

The stencil lock vacuum suction firmly holds the stencil on both sides of the conveyor during printing cycle, eliminating stencil vibration by having firm contact with the PCB.


Fully Automatic SMT Printer YSL-Star features machine


PCB Clamper

The PCB clamper is a combination of retractable top clamp and motor controlled side clamp, uniquely designed by YUSH (patented). With these standard features, all of today’s available and challenging substrates can be securely clamped and print to the highest quality.



OPTIONAL FEATURES

Fully Automatic SMT Printer YSL-Star features machine


Ready for Industry 4.0

Through machine status, parameters can be uploaded automatically. Designed to support customers’ advancement towards Industry 4.0 intelligence production, YSL-Star provides seamless connection with users’ MES system, enhancing product traceability and maintenance needs.


Fully Automatic SMT Printer YSL-Star features machine

Paste Rolling Diameter Monitoring System

Tracing solder paste rolling diameter in real time and trigger the auto dispensing if it falls below 10mm. Completely eliminate insufficient solder paste on stencil and keep the paste rolling speed within optimum range to achieve best printing result with this smt printer.



Fully Automatic SMT Printer YSL-Star features machine

Auto Paste Dispensing

The paste is automatically dispensed across the entire squeegee length, maintaining at 15mm rolling diameter, adopting the common 500 grams’ solder paste jar. Completely eliminates the wastage of solder paste overflowing to the sides of squeegee.



Fully Automatic SMT Printer YSL-Star features machine

Stencil Aperture Inspection System

Using panel light installed at the top and CCD camera below to inspect stencil apertures. It automatically detects the clogging of stencil apertures to eliminate poor quality stencil being used, ensure quality printing right from the start.



PERFORMANCE
Machine Alignment Capability 2 Cmk @ ± 12.5 microns 6 sigma
Process Alignment Capability 2 Cpk @ ± 20 microns 6 sigma
Core Cycle Time
(excluding printing & cleaning time) 		< 8.5 secs
Product Changeover Time < 3 mins
New Product Set-up Time < 10 mins
BOARD HANDLING
Max. Size (L x W) 510 mm x 510 mm
Min. Size (L x W) 50 mm x 50 mm
Thickness 0.4~6 mm
PCB Thickness Adjustment Automatic
PCB Max. Weight 5 kg
PCB Edge Clearance 3 mm
PCB Bottom Clearance 23 mm
PCB Warpage Max. 1% diagonally
Clamping Method Auto retractable top clamp, motor controlled side clamp
Support Method Magnetic support pins, bars, blocks, vacuum suction
Conveyor Direction L to R, R to L, R to R, L to L
(software control)
Conveyor Height 900 ± 40 mm
Conveyor Speed 1,500 mm/s
Conveyor Width Adjustment Automatic
PRINTING PARAMETERS
Stencil Frame Size (L x W) Adjustable, 470 mm x 370 mm to 737 mm x 737 mm
Print Gap (snap-off) 0~20 mm
Printing Table Adjustment Range X: ±10 mm, Y: ±10 mm : Θ ±2°
Print Speed 10~200 mm/s
Squeegee Pressure 0.5~10kg (program control)
Squeegee Type Std.: Metal Squeegee 280 mm, 350 mm & 520mm. Opt.: Rubber
Squeegee Angle Std. 60°, Opt. 45°, 50°, 55°
Cleaning System Auto wet, dry, vacuum (Software select)
FACILITIES REQUIREMENT
Power Supply AC220V ± 10% 50/60Hz
Power Consumption 3kW
Air Supply 4 ~ 6Kgf/cm²
Air Consumption 5L/min
Dimension (excluding signal tower) 1,240mm (L) x 1,410mm (W) x 1,500mm (H)
Machine Weight 1,200kg
OPERATOR INTERFACE
Hardware LCD Monitor, Mouse & Keyboard
Operating System (OS) Windows 10
Control Method Industrial PC controlled
I/O Interface SMEMA Standard



PRODUCT DIMENSION
