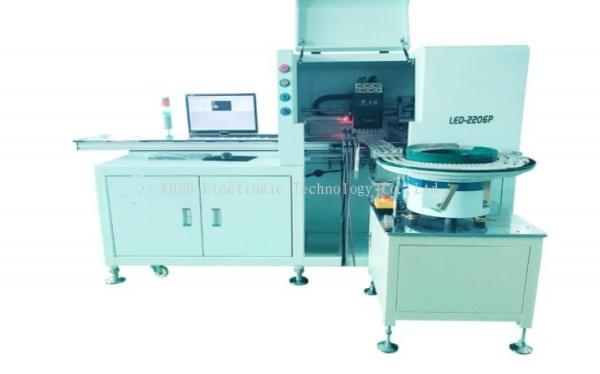

YS-LED-2206P Optical Led Lens Placement Machine
YS-LED-2206P Optical Led Lens Placement Machine
Specifications
Brand Name :
YUSH
Model Number :
YS-2206P
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
China
MOQ :
1set
Price :
USD15000
Payment Terms :
T/T,D/P,D/A,L/C
Supply Ability :
100sets
Delivery Time :
30days
Packaging Details :
woodencase
Description

1. Functions and Application of the machine

This Optical Lens Placement Machine is used for both smd components and Optical Lens Placement on pcb(printed circuit board), for Mainly for led Outdoor lighting(led Lens

or High Power bulk leds) and Led TV backboard smdprocess .Leadsmt experiences of this machines is well-skilled , not only sold in China but also delivered to Surkey,Poland and Russia Federation with reputed feedback .Year of Optical Lens placement Machine Launch.

Technical Specifications

Machine Model

YS-LED-2206P(6 Nozzle Heads Placement Machine)

Nozzle Heads Structure

Excellent Spline structure with Crash Avoidance System

Type of Nozzles for Led Lens

Specially design and Made according to the sample of Led Lens

No.of Led Lens Lane

3 Lanes for Led Lens feeding

Led Lens Feeding System

Grind & glaze surface vibration tray,3 trays for 3 lanes

Practical Speed

Approx 32000cph for smd leds, 11000cph for led lens

MAX Speed

40000CPH

Placement Accuracy

0.001mm (equipped with visual alignment Cameras for each nozzle)

Mounting Angle

0-360°

Max PCB Board Size

1220MM * 380MM

MAX Moving Range X,Y

X Axis 1220mm,Y 530mm

Max Moving Range Z

15mm

Position Method

Camera Position

Components Available types

0402-1210 Specifications,Including IC ,smd Leds,smt connectors,resistors,led

lens or bulk high power led ,Max range 20mm*20mm, Max Height 11mm

Programming type

Computer imaging +camera position

Feeder Model Available

8mm,12mm,16mm,24mm and 32mm Yamaha type feeders

No.of feeders Position

12 PCS

Feeder Type

Original Pneumatic Feeders (electric Feeders Optional)
