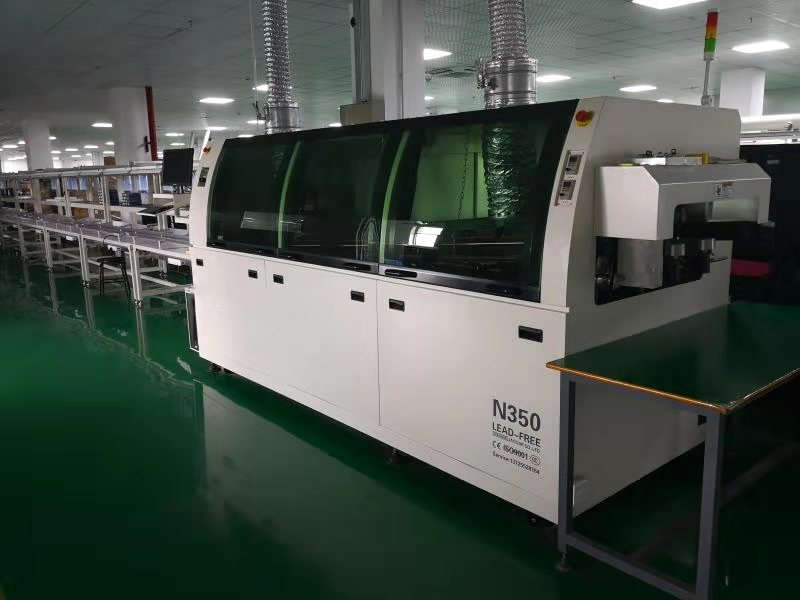

High Efficiency Lead-Free Wave Soldering Machine with PLC Control for PCB Assembly
High Efficiency Lead-Free Wave Soldering Machine with PLC Control for PCB Assembly
Specifications
Brand Name :
YUSH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
28800USD
Payment Terms :
L/C,D/A,T/T,D/P
Supply Ability :
100
Delivery Time :
20 Workdays
Packaging Details :
WOODEN CASE
Description
High Efficiency Lead Free Wave Soldering Machine
High Efficiency Lead-Free Wave Soldering Machine with PLC Control for PCB Assembly
Advanced Features & Benefits
  • Energy-efficient, lead-free design for environmental safety and operational efficiency
  • Automatic power system with frequency converter control and board input automation
  • Precision flux spray system with Japanese nozzles and PLC-controlled rodless pneumatic cylinders
  • Three-zone independent temperature control preheating system with ±2ºC uniformity
  • Special titanium alloy transport claws prevent solder adhesion and ensure PCB quality
  • Imported high-frequency conversion motor for stable solder pot performance
  • Environmentally safe lead-free solder furnace with easy cleaning access
  • Advanced PID control with dual infrared heating for precise temperature management
  • Programmable timer with preset switching functions and 90-minute heating capability
  • Black box memory function for production management records and efficiency tracking
  • Automatic claw cleaning system maintains operational cleanliness
  • Comprehensive safety alarm system ensures operator protection and machine reliability
Technical Specifications
Model No. N350
Number of Heating Zones 3
Length of Heating Zones 1600mm
Body Size 3900(L)×1400(W)×1560(H)
Outside Dimension 4100(L)×1400(W)×1560(H)
Weight 1100KG
Power Rating 24KW/6-8KW
Air Supply 0.5MPa
Preheating Method Micro Air
Preheating Power 220V 8KW
Control Method PC + PLC
Temperature Control Range Room Temperature - 300ºC
Preheating Time 10-15 minutes to reach 150ºC
Solder Type Lead-free
Solder Pot Capacity 320KG
Solder Pot Temperature 300ºC
Solder Power 380V 12KW
Solder Temperature Control PID & SSR
Wave Crest Drive Power 1KW 220V
Solder Warm-up Time Approximately 120 minutes to reach 250ºC
PCB Width 350mm
Conveyor Speed 300-2000mm/min
Conveyor Direction Left to Right (Right to Left optional)
Conveyor Angle 4-7º
Flux Pressure/Capacity 3-5 bar/6.5L
Premium Components & Parts
No. Component Name Brand Origin
1 Display LENOV0 China
2 Computer Industrial Computer China
3 PLC Siemens Germany
4 Temperature Control Module Siemens Germany
5 90W Conveying Motor Panasonic Japan
6 Solder Pot Wave Motor ZIK China
7 Preheating Coils Taizhan China
8 Solder Pot Heating Tube Taizhan China
9 Main Switch Mitsubishi Japan
10 Contactor and Currency Limiter OMRON Japan
11 Intermediate Relay OMRON Japan
12 Fuse Holder and Fuse Tube OMRON Japan
13 Programming Controller CARLO GAVAZZI Switzerland
14 Frequency Converter Delta Taiwan
15 Power Button and Indicator Light Izumi Japan
16 Temperature Detector Nihon Dennetu Japan
17 SSR CARLO GAVAZZI Switzerland
18 Photoelectric Sensor SICK Japan
19 Cylinder SMC Japan
20 Flux Sprayer 7-UP Taiwan
21 Patented Titanium Alloy Claws JAGUAR China
22 Air/Main Switch CHNT China
23 AC Contactor CHNT China
24 Button Switch Schneider France
