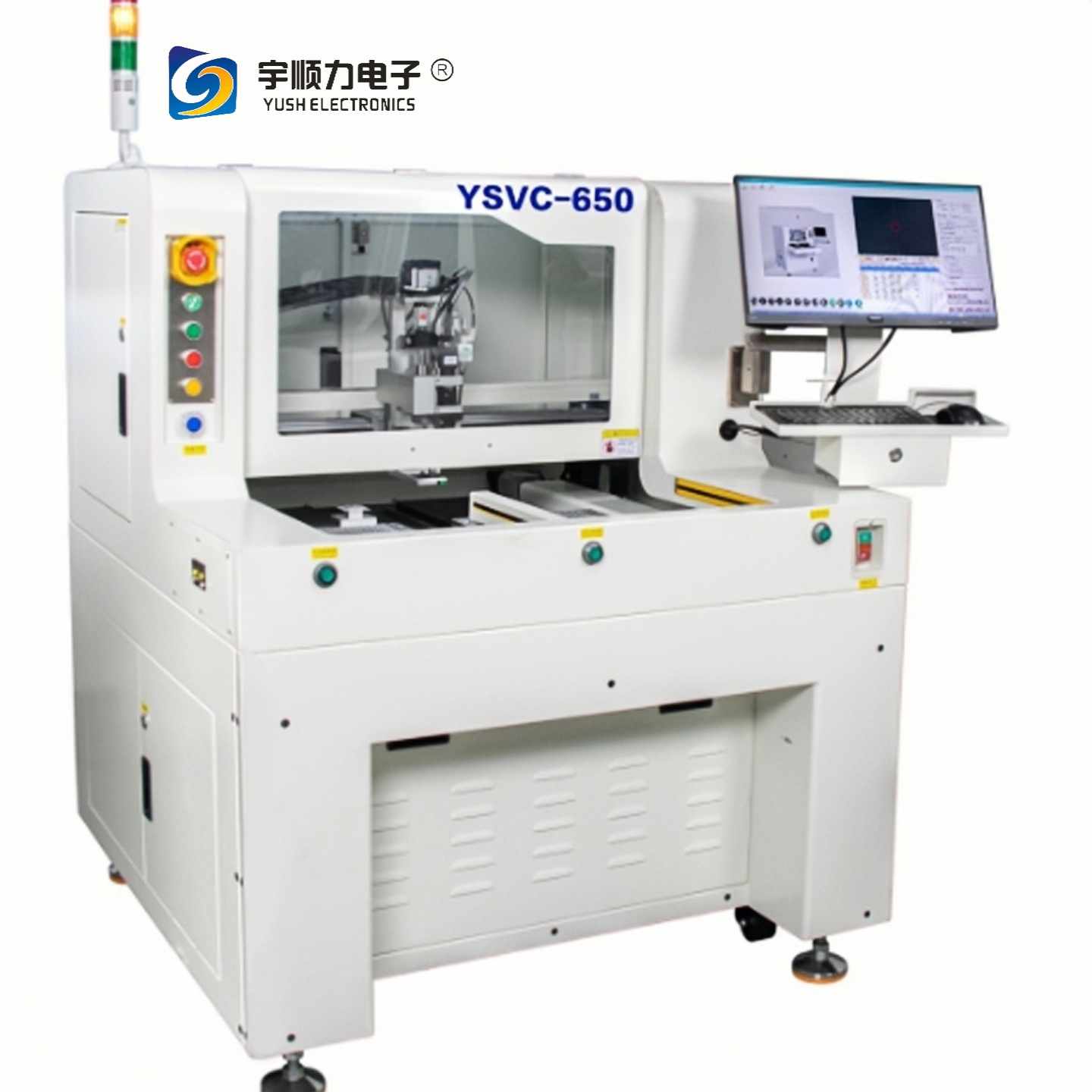

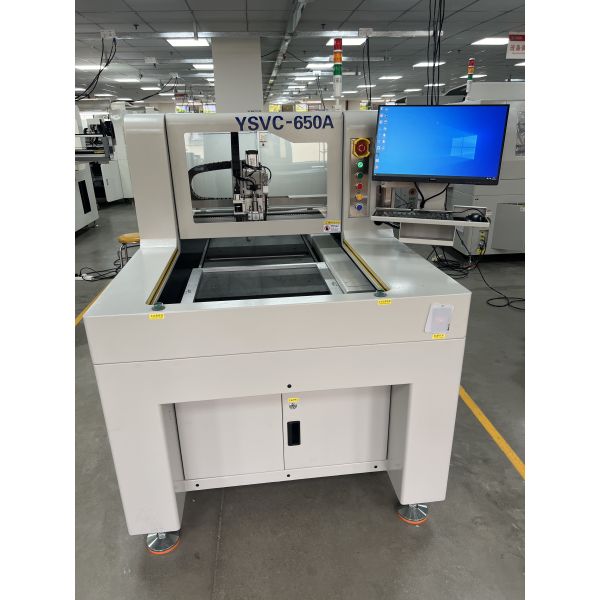

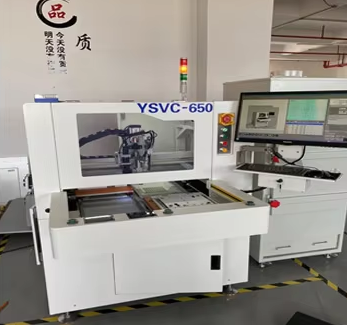

YSVC-650 High Speed PCB Router Machine with 610X500mm Maximum Board Length and UV Laser Cutting for High Precision ±3um PCB Depaneling
YSVC-650 High Speed PCB Router Machine with 610X500mm Maximum Board Length and UV Laser Cutting for High Precision ±3um PCB Depaneling
Specifications
Brand Name :
YUSH
Model Number :
YSVC-650
Place of Origin :
Guangdong
MOQ :
1
Price :
USD60000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000
Delivery Time :
20work days
Maximum length of the board: :
610X500mm
Package Size: :
1818mm X 2317mm X 1550mm
Thickness: :
1mm
Weight: :
3500kg
Description
High Speed Stable PCB Router Machine YSVC-650 Universal PCB Routing Tool
YSVC-650 Laser PCB Depaneling Machine
YUSH Technology is a reputable instrument brand specializing in PCB industry equipment. Our FPC ultraviolet laser cutting machine is designed for precision cutting of CVL, FPC, RF, and thin plywood materials.
Laser Machine Applications
Available for flexible circuit boards and organic coating precision cutting without requiring molds or protective plate fixation. Utilizing high-energy laser sources with precise beam control enables improved processing speed and exceptional machining accuracy.
YSVC-650 High Speed PCB Router Machine with 610X500mm Maximum Board Length and UV Laser Cutting for High Precision ±3um PCB Depaneling
FPC Ultraviolet Laser Cutting Machine Features
  • Proprietary control software with intuitive interface, comprehensive functionality, and simple operation
  • Capable of processing any graphics with optimized optical system design ensuring high beam quality and precision
  • High-performance UV laser with optimal wavelength, superior beam quality, and high peak power characteristics
  • Minimal thermal effect with no delamination, delivering precise, smooth cutting with steep sidewalls
  • Vacuum sample fixation system eliminates need for mold protection plates, enhancing processing efficiency
  • Versatile material compatibility including silicon, ceramic, glass, and various substrates
  • Advanced automation features: automatic correction, positioning, multi-plate cutting, thickness measurement and compensation
YSVC-650 High Speed PCB Router Machine with 610X500mm Maximum Board Length and UV Laser Cutting for High Precision ±3um PCB Depaneling
Technical Specifications
Laser Source: Solid-state UV laser
Wavelength: 355nm
Laser Power: 10W
Maximum Processing Format: 610mm * 500mm (24" * 18")
XY Platform Speed: 50m/min maximum
Positioning Accuracy: ±3μm
Repeatability: ±1μm
System Precision: ±20μm
Galvanometer Scanning Range: 50mm * 50mm
Cutting Thickness: <1mm
Power & Environmental Requirements
Power Supply: AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Air Requirement: 516m³/h
Dimensions: 1818mm * 2317mm * 1550mm
Weight: 3500Kg
Ambient Temperature: 20℃ ±2℃
Humidity: <60% RH non-condensing
Ground Amplitude: <5μm
Vibration Acceleration: <0.05g
Ground Pressure: 2200kgf/m²
Control System
Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Features 17" monitor, 300G+ hard drive, and supports standard G-code, Gerber data, and CAD formats.
YSVC-650 High Speed PCB Router Machine with 610X500mm Maximum Board Length and UV Laser Cutting for High Precision ±3um PCB Depaneling
Quick Specifications
Maximum Board Length 610 * 500mm
Package Size 1818mm * 2317mm * 1550mm
Thickness 1mm
Power Supply AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Working Air Pressure 516m³/h
Weight 3500kg
Scope of Application All V-CUT SMD PCB FPC boards
