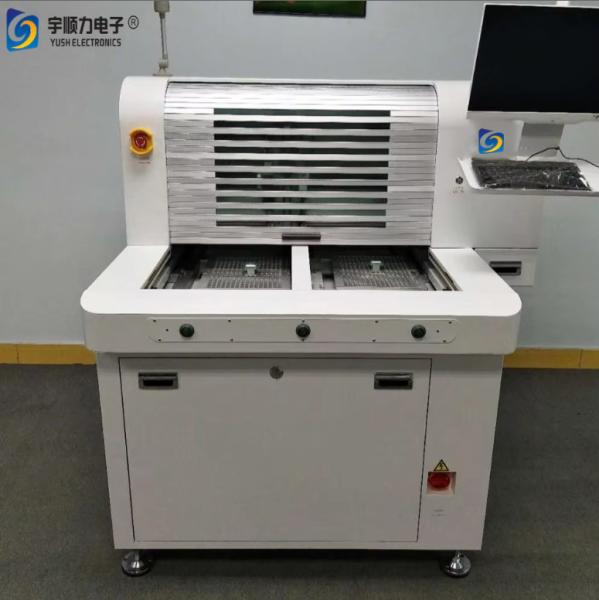

High Speed Stable PCB Router Machine YSVC-650 with 610X500mm Maximum Processing Format and 355nm UV Laser Wavelength
High Speed Stable PCB Router Machine YSVC-650 with 610X500mm Maximum Processing Format and 355nm UV Laser Wavelength
Specifications
Brand Name :
YUSH
Model Number :
YSVC-650
Place of Origin :
Guangdong
MOQ :
1
Price :
USD60000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000
Delivery Time :
20 work days
Maximum length of the board: :
610X500mm
Package Size: :
1818mm X 2317mm X 1550mm
Thickness: :
1mm
Power supply: :
AC220V 50Hz / 2.2KW; three-phase 380V 50Hz / 5.5KW
Description
High Speed Stable PCB Router Machine YSVC-650 Universal PCB Routing Tool
YSVC-650 Laser PCB Depaneling
The FPC UV laser cutting machine is designed for flexible circuit boards and organic coating precision cutting without requiring molds or protective plate fixation. Utilizing a high-energy laser source with precise beam control enables superior processing speed and delivers precise machining results.
High Speed Stable PCB Router Machine YSVC-650 with 610X500mm Maximum Processing Format and 355nm UV Laser Wavelength
Key Features
  • Proprietary control software with intuitive interface, comprehensive functionality, and simple operation
  • Capable of processing any graphics with optimized optical system design ensuring high beam quality and precision
  • High-performance UV laser with 355nm wavelength, superior beam quality, and high peak power characteristics
  • Vacuum sample fixation eliminates need for mold protection plates, enhancing processing efficiency
  • Versatile material compatibility including silicon, ceramic, glass, and various substrates
  • Advanced automation with automatic correction, positioning, multi-plate cutting, thickness measurement, and compensation
High Speed Stable PCB Router Machine YSVC-650 with 610X500mm Maximum Processing Format and 355nm UV Laser Wavelength
Technical Specifications
Laser Source: Solid-state UV laser, 355nm wavelength
Laser Power: 10W
Maximum Processing Format: 610mm * 500mm (24" * 18")
XY Platform Speed: 50m/min maximum
Positioning Accuracy: ±3μm
Repeatability: ±1μm
System Precision: ±20μm
Galvanometer Scanning Range: 50mm * 50mm
Cutting Thickness: <1mm
Power Requirements: AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Air Consumption: 516m³/h
Dimensions: 1818mm * 2317mm * 1550mm
Weight: 3500kg
Operating Temperature: 20℃ ±2℃
Humidity: <60% RH non-condensing
Control System: Industry-specific equipment with flexible processing software, motion control card, and IPC control
Display: 17" monitor, 300G+ hard drive
Data Compatibility: Standard G-code, Gerber data, CAD files
High Speed Stable PCB Router Machine YSVC-650 with 610X500mm Maximum Processing Format and 355nm UV Laser Wavelength
Quick Specifications
Maximum Board Length 610mm * 500mm
Package Size 1818mm * 2317mm * 1550mm
Thickness 1mm
Power Supply AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Working Air Pressure 516m³/h
Weight 3500kg
Scope of Application All V-CUT SMD PCB FPC boards
