YS-FL Series Fiber Laser Marking Machine
YS-FL Series Fiber Laser Marking Machine
Specifications
Brand Name :
YUSH
Model Number :
YS-FL
Place of Origin :
Guangdong
MOQ :
1
Price :
USD9800
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000
Delivery Time :
20work days
model :
YS-FL
laser power :
20/30/50/60/80/100/120/150/200/300W
Description

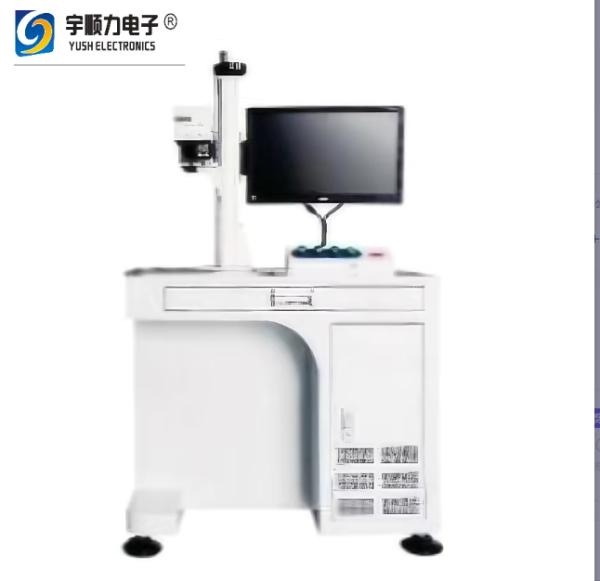

YS-FL Series Fiber Laser Marking Machine



Product Features

The FL series fiber laser marking machine is also known as a metal laser marking machine. It creates marks by either evaporating the surface material to expose the underlying material, or by causing physical changes in the surface material through light energy, or by burning off some of the material using light energy to reveal the desired engraved patterns, texts, barcodes, and other various graphic elements. The fiber laser has the advantages of a small size (without water cooling device, using air cooling), excellent beam quality (fundamental mode), and no maintenance requirements.

Technical Specification

Model

YS-FL
laser wavelength 1064nm
laser power 20/30/50/60/80/100/120/150/200/300W
frequency range 10-400KHz
Pulse width range 200ns
Marking speed ≤7000mm/s
minimum line width 0.02mm
Minimum character 0.05mm
repeatability ±0.1µm
Marking range 150mm*150mm(optional)
Cooking mode air cooling
working power supply AC220V/50Hz
