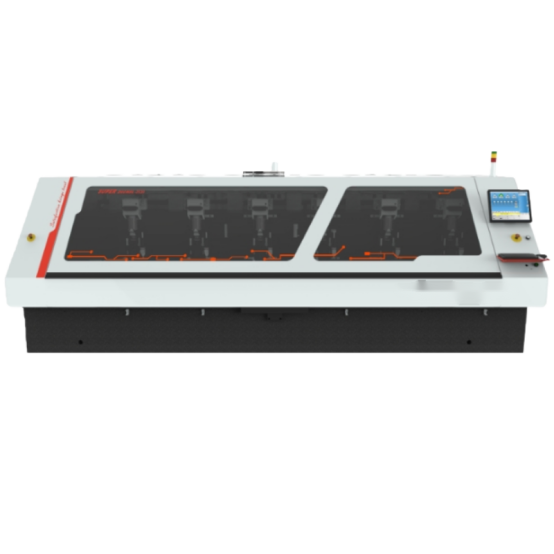

High Precision Substrate CCD Drilling Machine For PCB Products
High Precision Substrate CCD Drilling Machine For PCB Products
Specifications
Brand Name :
YUSH
Model Number :
Extra D6-2530
Certification :
ce
Place of Origin :
GUANGDONG
MOQ :
1
Price :
USD68500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000
Delivery Time :
20Work days
Weight :
13600kg
Dimensions (L*W*H) :
4600mm*2000mm*1590mm
Humidity :
50%-65%
Number of Axis :
6
Drill Size Range :
0.1mm-6.5mm
Max Speed of Spindle :
200krpm
Description

Substrate CCD Drilling Machine

High Precision Substrate CCD Drilling Machine For PCB Products


This advanced drilling machine is specifically designed for high-precision PCB products including LED panels, optical communication module boards, HDI mobile phone boards, and aluminum server boards.
High Stability Performance
  • Germany SIEB & MEYER CNC 84.00 or 95.00 control system
  • Stable anti-interference optical fiber technology
  • Optimum operation via digital drive technology
  • X-axis with absolute linear scale, resolution up to 1 nm with strong resistance to dust pollution
Precision Drilling Capabilities
  • Auto fiducial mark recognition and registration algorithm for board stretch, shrink and tilting error compensation
  • IWS (Independent Work Station) Structure with offset, rotation, and scale compensation for each board
  • High-precision Blind Hole Processing Function with CBD Depth-controlled drilling accuracy: ±0.015mm (VEGA testing condition)
  • 3D back drilling technology (Optional) with back drill stub length control process capacity up to 2~6mil
  • See-Hole-Drill-Hole process scans through-holes with high-definition camera and individually compensates for each hole's offset
Technical Specifications
Machine Type D6-2530
X/Y Axis Velocity 90m/min
Z Axis Velocity 50m/min
Number of Axis 6
Max Speed of Spindle 200krpm
Drill Size Range 0.1mm-6.5mm
Tool Magazine Capacity 300
Spindle Maintenance Automatic chuck cleaning
Positioning Accuracy ±0.004mm
Repeatability Accuracy ±0.002mm
Drilling Accuracy ±0.017mm ( testing condition)
Control Method CBD High Precision Control
Alignment System CCD High Definition Lens
Blind Drilling Accuracy ±0.015mm ( testing condition)
Back Drilling Alignment D+3mil ( testing condition)
Air Requirement 7-8bar
Cooling Requirement 17℃-20℃
Power Requirement 3PH-AC380V ±8%+PE, 50/60HZ 20KVA
Temperature 22±2℃
Humidity 50%-65%
Dimensions (L*W*H) 4600mm*2000mm*1590mm
Weight 13600kg
