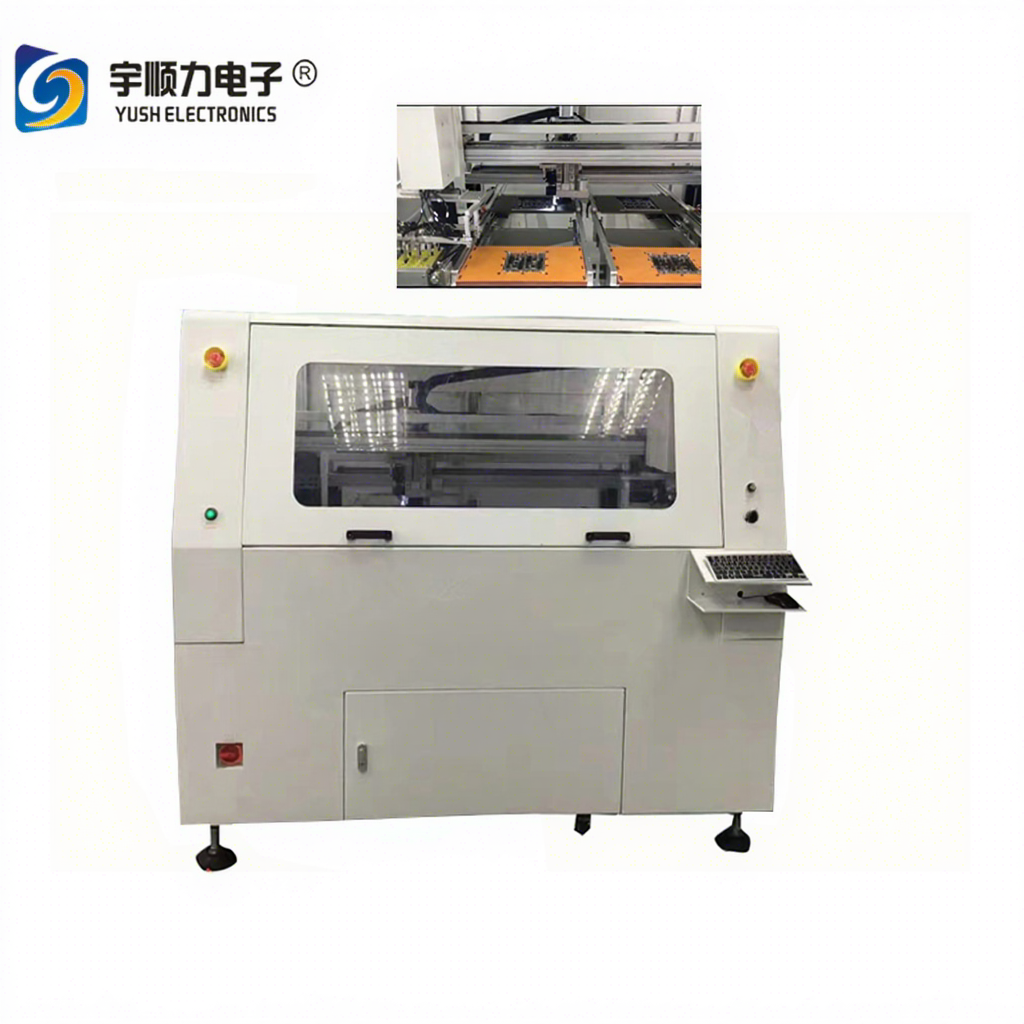

High Efficiency PCB Router Machine with 610mm × 500mm Maximum Processing Format and 355nm UV Laser Wavelength for Precision Cutting
High Efficiency PCB Router Machine with 610mm × 500mm Maximum Processing Format and 355nm UV Laser Wavelength for Precision Cutting
Specifications
Brand Name :
YUSH
Model Number :
YASTM-4C
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
USD12000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10
Delivery Time :
20 WORK DAYS
Packaging Details :
WOODEN CASE
Description

High Efficiency PCB Router Machine with 610mm × 500mm Maximum Processing Format and 355nm UV Laser Wavelength for Precision Cutting

Laser Cutting Machine
YUSH Technology is a leading instrument brand specializing in PCB industry equipment. Our FPC ultraviolet laser cutting machines are primarily used for precision cutting of CVL, FPC, RF, and thin plywood materials. The company is committed to continuous research, development, and production of advanced PCB manufacturing equipment.
Applications
Our FPC UV laser cutting machines are designed for flexible circuit boards and organic coating precision cutting without requiring molds or protective plate fixation. Utilizing high-energy laser sources with precise beam control significantly improves processing speed while delivering exceptional machining accuracy.

High Efficiency PCB Router Machine with 610mm × 500mm Maximum Processing Format and 355nm UV Laser Wavelength for Precision Cutting

Key Features
  • Proprietary control software with user-friendly interface, comprehensive functionality, and simple operation
  • Capable of processing any graphics with synchronized hierarchical cutting for different thicknesses and materials
  • Optimized optical system ensures high beam quality and reduced focused spot size for superior precision
  • High-performance UV laser with optimal wavelength, exceptional beam quality, and high peak power characteristics
  • Vacuum sample fixation eliminates need for mold protection plates, enhancing processing efficiency
  • Versatile material compatibility including silicon, ceramic, glass, and various substrates
  • Advanced automation with automatic correction, positioning, multi-plate cutting, thickness measurement, and compensation

High Efficiency PCB Router Machine with 610mm × 500mm Maximum Processing Format and 355nm UV Laser Wavelength for Precision Cutting

Technical Specifications
Laser Source Solid-state UV laser, 355nm wavelength
Laser Power 10W
Maximum Processing Format 610mm × 500mm (24" × 18")
XY Platform Maximum Speed 50m/min
Positioning Accuracy ±3μm
Repeatability ±1μm
System Precision ±20μm
Galvanometer Scanning Range 50mm × 50mm
Cutting Thickness <1mm
Power Requirements AC220V 50Hz / 2.2KW or Three-phase 380V 50Hz / 5.5KW
Air Requirement 516m³/h
Dimensions 1818mm × 2317mm × 1550mm
Weight 3500kg
Operating Temperature 20℃ ± 2℃
Humidity <60% RH non-condensing

High Efficiency PCB Router Machine with 610mm × 500mm Maximum Processing Format and 355nm UV Laser Wavelength for Precision Cutting

Quick Specifications
Maximum Board Length 610 × 500mm
Package Size 1818mm × 2317mm × 1550mm
Thickness 1mm
Power Supply AC220V 50Hz / 2.2KW or Three-phase 380V 50Hz / 5.5KW
Working Air Pressure 516m³/h
Weight 3500kg
Scope of Application All V-CUT SMD PCB FPC boards
