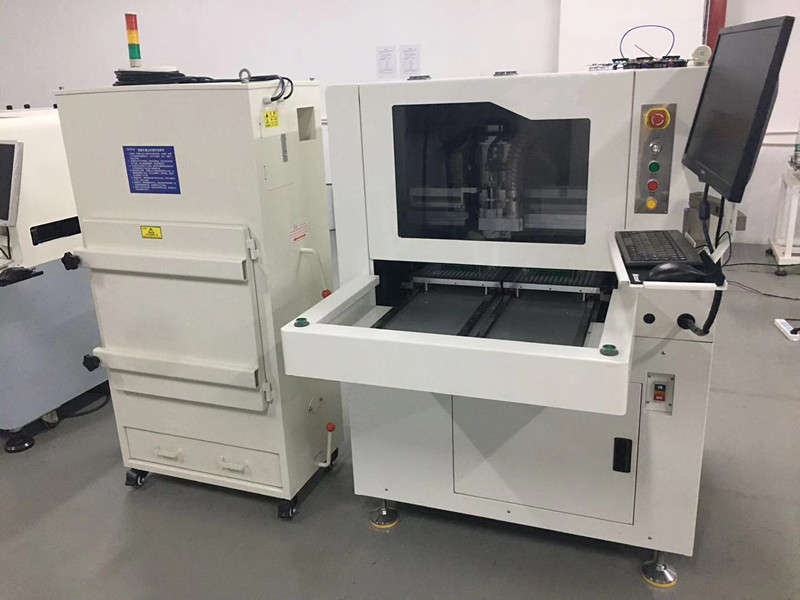

YSVC-650 A /YSVC-650B Series are fast and accurate stand-alone PCB routers witha CCD camera and sophisticated image-processing software.

A: Solution for low-Stress Depanelization

High-speed router bit precisely cuts densely populated PCBs without stressing the boards. Cutting paths can be set as close as 0.5mm to a component.

B:Advanced Image-Processing Software Offers Point-and-Click

Operation for Programming Router Paths. CCD Camera captures an image of the PCB and easy programming of cutting paths is achieved by simple Point-and -Click Windows-based operation on the computer screen. Time is reduced and programming is simplified by this software.

C: Automatic Alignment Compensation by CCD Camera.

CCD Camera reads fiducial marks on a PCB and compensates for variance on relative position of cutting paths.

D: Extended Router Bit Life.

Automatic 5-stage depth adjustment extends bit life and reduces time and cost of replacement.

E: High-Speed X-Y Robot and Z-axis Servo Motor

Reduces tact time and improves productivity.

Parameters

Router Programming Goes High-Tech:0

A. A quick and easy method to learn and use.

B. Accurate software programming to microns.

C. Ideal for programming arcs and circles

D: Save thousands of programs as Windows files.

E. Transfer programs to other routers with a jump drive.

F. Real time display of cutting pattern, sequence and X/Y coordinates.

Features:

YSVC-650 series is a visual alignment automatic PCB router machine, equipped with high-speed CCD vision correction device, especially for precision and high-capacity PCB boards routing operations, suitable for mobile phones, GPS, PDA and MODULE and other small The PCB is divided into boards. Using NAKANISHI Japanese precision spindle ( Also can be selected according to customer requirements Germany KAVO spindle etc), Without cutting stress, Board edge after cut is smooth, with high precision.
