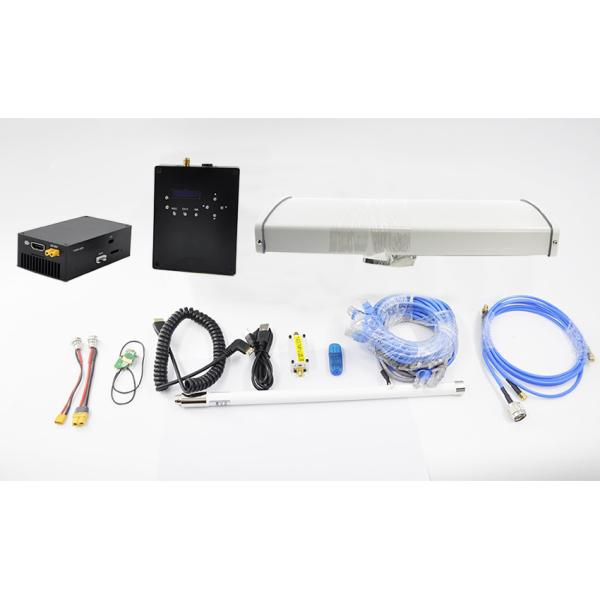

Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter
Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter
Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter
Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter
Specifications
Brand Name :
IFLY
Model Number :
FIM-1440
Certification :
FCC, CE
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200sets/month
Delivery Time :
5-8working days
Packaging Details :
1set/carton
Modulation :
DVB-T/DVB-T2/DVB-T2
Video Res :
1080P
Video Input :
HDMI
Video Output :
HDMI to Monitor and IP to PC
Parameters :
Adjustable by software
Rx Antenna :
Panel Directional Antenna
RF Power :
2.5Watts
Range :
Air to ground 45km, ground to ground 1-2km NLOS
Description

Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter


Description

  • Provide up to 3-5Mbps data stream, dynamic adaptive rate allocation technology
  • Support transparent PTP&PMD network technology
  • Support high-speed mobile transmission
  • Provide standard HDMI + RJ45
  • Support high standard industrial applications
  • Small volume, light weight, easy to carry, fin type aluminum chassis
  • High definition OLED panel digital display, simple interface and easy to operation


Main features:

  • Miniature design at 200 grams
  • Simultaneous Ethernet and Serial Data
  • 2.5W power output
  • Up to 5 Mbps throughput
  • Extended temperature range
  • Delay time very short less than 50ms


Applications:

  • VTOL uav
  • Heavy lift octocopter
  • Heavy fixed wing uav
  • Heavy lift VTOL uav with long endurance
Plug to Play 50km Wireless drone Video Camera Transmitter For Heavy Lift Octocopter
Parameters
Wireless Channel1.400-1.499Ghz(Adjustable by software)
Communication Bandwidth2/4/8MHZ
RF Transmission Power2.5W
Data Rates1.5/3/6Mbps
RX Sensitivity-103dbm
Interfaces on Transmitter1080P60 HDMI RX×1
Power Input Interface--XT30 Industrial Grade ×1 DC 16-48V
USB 2.0--For linking configure software only.
SMA RF ×1
Interfaces on Receiver1080P60 HDMI Mini TX×1
LCD--Displaying RSSI and link state.
Buttons×5--For configuring receiver model.
Power Input Interface--XT30 Industrial Grade ×1 DC 9-24V
SMA RF ×2
Wireless Fault ToleranceFEC/MPEG
ModulationDVB-T/DVB-T2/DVB-T2
Distance Range

35-60km
Notes: True distance is related to the environment.

Total Latency50ms
Reconnection timeLess than 1s after signal has been recovered
Adjustment of COFDMQPSK one-way
Overall Consumption Power(Maximum)

Transmitter terminal: 25W
Receiver terminal: 12W

Temperature Range

Operating temperature: -40—85℃
Storage temperature: -55 - 125℃

Dimensions

TX: 97mm×57mmx30mm
RX: 91mm×72mmx30mm

RadiatorFancooler or aluminum heat sink
Gram

TX: 200g
RX: 202g
