Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin
Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin
Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin
Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin
Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin
Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin
Specifications
Brand Name :
Hongjie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
5-7working days
Packaging Details :
export standard wooden case
Product name :
Water softener
Flow Rate :
0.5m³/h – 200m³/h (Customizable )
Core Technology :
Ion Exchange
Core Component :
Pressure vessel, valve
Operation Mode :
Fully Automatic (PLC Control)
Product Features :
Stable Water Quality, Low Operation Cost
Description
I.Water Softening Equipment: Enhance Efficiency, Extend Equipment Life
Water softening equipment is designed to reduce water hardness by removing calcium and magnesium ions from deep well water or sources with high hardness. This process minimizes scale formation in hot water equipment and pipelines, significantly improving thermal efficiency and extending the service life of your equipment.


II:Working principle

Since the hardness of water is mainly formed and expressed by calcium and magnesium, cation exchange resin (water softener) is generally used to replace Ca2+ and Mg2+ (the main components of scale formation) in the water. As the Ca2+ and Mg2+ in the resin increase, the efficiency of the resin in removing Ca2+ and Mg2+ gradually decreases.


When the resin absorbs a certain amount of calcium and magnesium ions, it must be regenerated. The regeneration process is to flush the resin layer with brine in the salt box, replace the hardness ions on the resin, and discharge them out of the tank with the regeneration waste liquid. The resin then resumes its softening and exchange function.

Since the hardness of water is mainly formed by calcium and magnesium, the principle of sodium ion exchange softening treatment is to pass the raw water through sodium type cation exchange resin to exchange the hardness components Ca2+ and Mg2+ in the water with Na+ in the resin, thereby adsorbing Ca2+ and Mg2+ in the water to soften the water.


III:Parameter

Specification Description
Inlet Water Hardness ≤8 mmol/L
Outlet Water Hardness ≤0.03 mmol/L
Working Pressure 0.2-0.6 MPa
Working Temperature 2-50℃
Free Chlorine in Inlet Water ≤0.3 mg/L
Suspended Solids in Inlet Water <5 mg/L
Iron Content in Inlet Water 0.3 mg/L
Flow Range 1-100 t/h (customizable)
Tank Materials FRP / Carbon Steel with Rubber Lining / Stainless Steel
Valve Materials High-strength Plastic / Copper / Ceramic
Power Supply 220V/380V, 50/60HZ
Control Modes Time-based / Flow-based
Regeneration Methods Downflow Regeneration / Upflow Regeneration

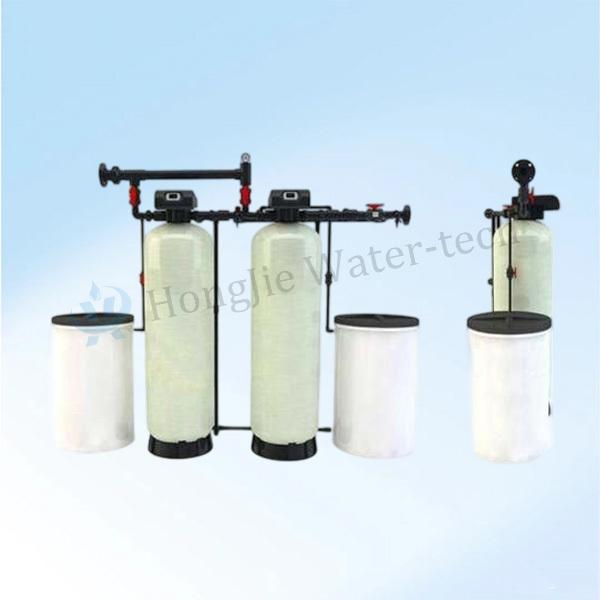

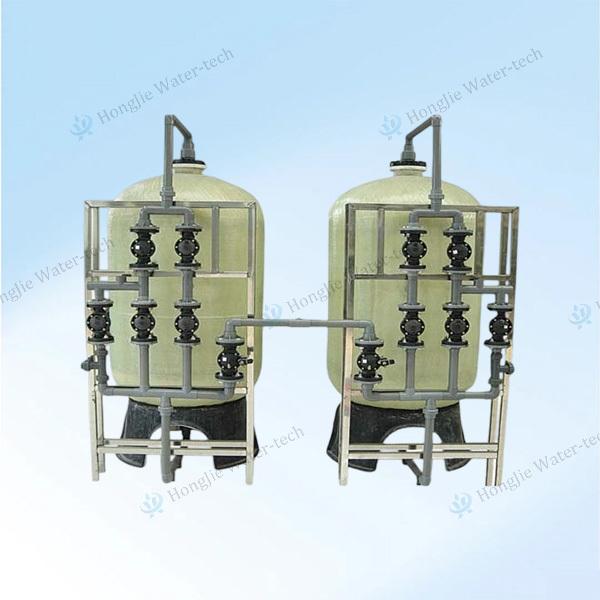

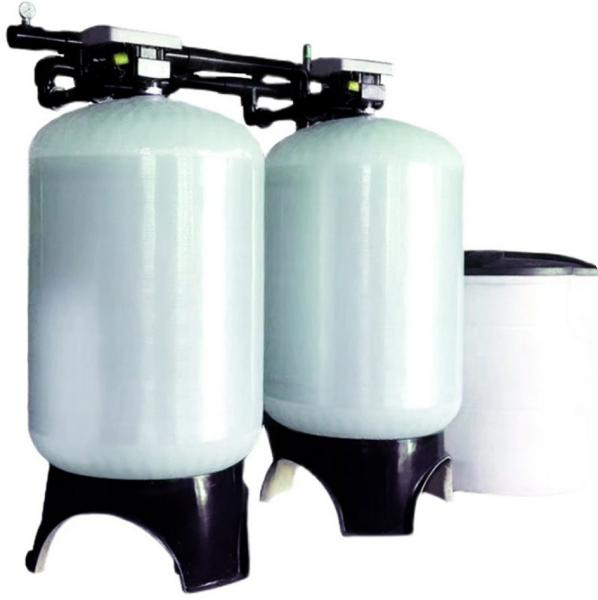

IV:Photo

Automatic PLC Control Water Softener System With FRP Resin Tank Ion Exchange Resin

V:FAQ

Q1: Why did I choose your product?
We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.

Q2: What materials are needed if you want to customise large-scale water treatment machinery?
Water circuit: raw water quality, required water quality, water quantity; Circuit: voltage,frequency, rated power, installed power, adapted plug; industry and use; equipment placement: outdoor or indoor; budget: accordingto the budget of the exclusive customised program.

Q3: How long does it usually take for your products to ship?
Generally, the delivery time is two to three weeks.

Q4: Do you support OEM service?
Yes, we fully support OEM services and welcome you to customize our products.

Q5: Can I get a cheaper price?
Of course, please contact us, we can give you a cheaper price.

Q6:What if the product breaks down in the future?
Don't worry, we offer a very long warranty,.
