30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment
30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment
30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment
30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment
30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment
30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment
Specifications
Brand Name :
Hongjie
Model Number :
HJ-ROFB1500L
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
>=1sets
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
7-10 working days
Packaging Details :
export standard wooden case
Product name :
Reverse Osmosis Filtration System
Voltage :
220 V、380V
Capacity :
30TPH
Raw water TDS :
<30000PPM
Pure water TDS :
<500PPM
Warranty :
1 Year
Description
30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Electrical Industry
This advanced 30m³/H double-stage industrial reverse osmosis system integrates ultrafiltration, two-stage RO process, electrodeionization (EDI), and polishing mixed bed technologies to deliver ultra-pure water with conductivity below 0.05 µS/cm, specifically designed for the electrical industry.
System Configuration
The system combines multiple advanced filtration technologies including Ultrafiltration (UF), Two-Stage Reverse Osmosis (RO), Electrodeionization (EDI), and Polishing Mixed Bed (PMB) to produce ultra-pure water suitable for pharmaceutical manufacturing, semiconductor production, laboratories, and electronic manufacturing applications.
Equipment Technology
Core components feature internationally renowned brands with high-efficiency, low-noise high-pressure pumps and reverse osmosis membrane elements achieving up to 99.8% desalination rate.
  • High-pressure piping uses SUS304 stainless steel for durability
  • Low-pressure lines utilize UPVC for corrosion resistance and cleanliness
  • PLC automatic control with touchscreen interface
  • Automatic start/stop, pressure protection, and membrane flushing
  • Online water quality monitoring capabilities
  • Intuitive user interface for real-time operational monitoring
  • Fully unattended operation after commissioning
Technical Specifications
Parameter Value / Description
Capacity 30T/H
Feed Water Tap water
Technology SWRO (Reverse Osmosis)
Operating Pressure ~55-65 bar (depending on water quality)
Numbers of Membrane of UF 16pcs/set two sets
Pre-treatment Ultrafiltration System
RO Membrane Type 8040 Dow
RO Membrane Material FRP
Permeate Water Quality Drinking water standard (WHO / local)
Post-treatment pH adjustment, UV / Chlorine disinfection
Automation PLC / SCADA control for monitoring & alarms
Power Supply 380V / 50Hz (customizable)
Company Advantages
One-Stop Support
Complete service from design and manufacturing to installation, operation, and maintenance.
High-Standard Manufacturing
  • Precision pipe welding accurate to the millimeter
  • Mirror-finished joint grinding
  • Clear electrical wiring layouts with uniform labeling
  • Comprehensive testing and debugging of all valves and pipelines
Experienced Installation Team
Professional installation team with extensive industry experience.

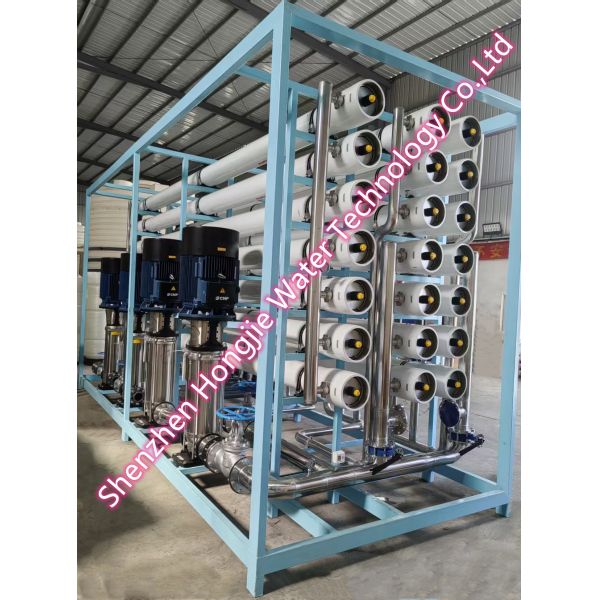

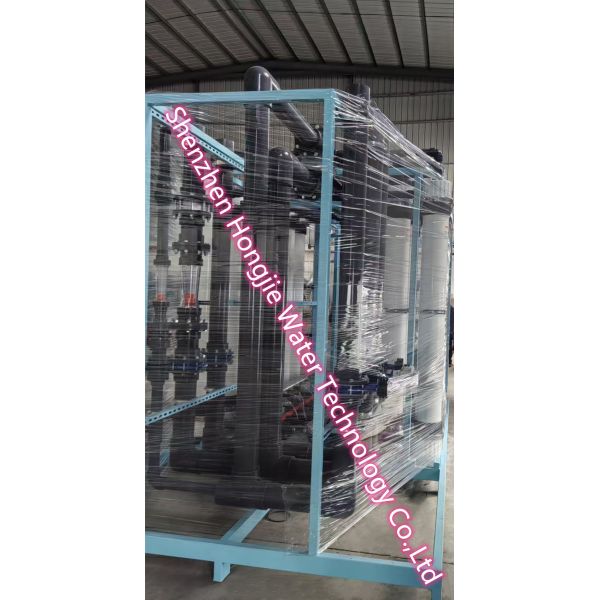

System Images
30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment 30m³/H Double-Stage Industrial Reverse Osmosis System With EDI For Ultra-Pure Water Treatment
Frequently Asked Questions
Are you a trading company or a factory?
We are a source factory in Huizhou with offices in Shenzhen, China.
How Does Reverse Osmosis Work?
Reverse osmosis systems purify water by forcing pressurized water through a fine Aromatic polyamide membrane. For well or private water sources, disinfection and pre-filters may be required to remove contaminants that could damage the membrane.
How Do I Know What Size Unit to Buy?
R/O units are rated by daily treated water production. Consider factors like line pressure, water temperature, and storage tank backpressure when selecting unit size, and choose a larger-rated unit if these conditions are suboptimal.
Material of the reverse osmosis system?
Options include FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe, or total stainless steel construction.
What's your production Period?
50Hz voltage units require 5 working days; 60Hz units require 30 working days.
Guidelines for Getting a Proper Quotation
  • Specify your required production capacity (500L/H, 1T/H, 2T/H, etc.)
  • Identify your source water type (tap water, underground water, etc.)
  • Describe the intended use of the product water (drinking, bottled water, etc.)
  • Provide water analysis report if available
