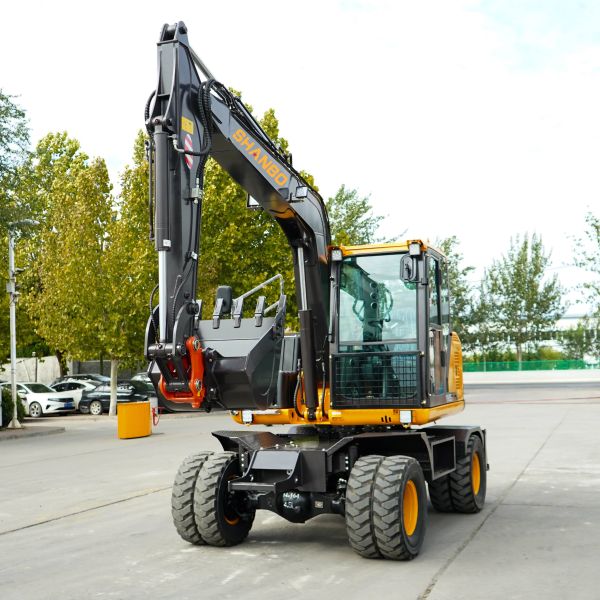

Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Specifications
Operating Weight :
8.5Ton
Place of Origin :
Shandong, China
Brand Name :
Original
Moving Type :
Wheel Excavator
Bucket capacity :
0.3m³
Maximum Digging Height :
6010mm
Maximum Digging Depth :
3760mm
Machine Weight :
8200 kg
Max Digging Radius :
6525mm
Rated Speed :
28 km/h
Warranty :
3 months
Hydraulic Cylinder Brand :
HJH
Hydraulic Pump Brand :
HJH
Hydraulic Valve Brand :
HJH
Engine Brand :
Yanmar 4TNV98
UNIQUE SELLING POINT :
High operating efficiency
Power :
46.3 kw
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
6 Months
Core Components :
PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox, Other
Model :
PW90
Displacement :
3.319 L
Max. Digging radius on ground :
6340mm
Cab Height :
2790mm
Max.travel speed :
28 km/h
Fuel tank capacity :
170L
Swing speed :
11 rpm
Engine Fuel tank capacit :
170L
Total Tire Width :
2130mm
wheelbase :
1680mm
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining
Showroom Location :
None
Condition :
New
Marketing Type :
Ordinary Product
Price :
$36,999.00/sets 1-2 sets
MOQ :
1 set
Description
Company Profile
The factory is located in Jining City, Shandong Province, covering an area of approximately 40000 square meters with over 100 employees. We are a leading construction equipment manufacturer in China that integrates research and development, manufacturing,and sales. We mainly produce and sell excavators, bulldozers, and construction machinery, manufactured strictly in accordance with
international quality and safety standards, capable of handling the most extreme weather conditions and complex terrains.We look forward to establishing a long-term good business relationship with you!
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Product Overview
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
整机重量Operating Weight
8200kg
标准铲斗容量 Bucket capacity
0.3m³
型号 Model
Yanmar 4TNV98
排量Displacement
3.319 L
额定功率/转速 Rated power / Speed
46.3 kw/2200rpm
最大扭矩 Maximum torque
223.3~243.5N.m/1600±100r
最大行走速度 Max.travel speed
28 km/h
回转速度 Swing speed
11 rpm
最大爬坡能力 Max. Grade ability
30°
液压系统 Hydraulic system
负载敏感系统 Load Sensing System
泵型式 Pump type
变量X1 Variable X1 pump
设定压力 Pressure P1 P2
26 Mpa
流量 Flow rate P1 P2
149 L/min
液压油箱容量Hydraulic Tank Capacity
118L
燃油箱容量 Fuel tank capacity
170L
发动机燃油箱容量 Engine Fuel tank capacity
12L
总长度 Total length
6200mm
总高度 Total Height
2790mm
后端回转半径 Counter weight turning radius
1582mm
发动机罩高度Hood Height
2032mm
配重离地间距 Counterweight Ground Clearance
1050mm
上部回转平台总宽度Upper structure width
2000mm
驾驶室高度 Cab Height
2790mm
轮胎总宽度Total Tire Width
2130mm
最小离地间隙 Minimum Ground Clearance
300mm
轮间距 Wheel Tread
2415mm
回转中心至后桥间距 Distance of swing center to rear wheel
1000mm
前部外伸量 Front Extension
580mm
PRODUCT SPECIFICATIONS
Excavator
PC200-3-5-6-7-8,PC300-5-6-7-8,PC400-5-6-7-8,PC600,P650,PC1250
Wheel Loader
WA380-1-3,WA400-1,WA420-3,WA470-3,WA500-1,WA600-1
Bulldozer
D65 ,D85 ,D155, D275 ,D355, D375, D475
Engine
S6D95; S6D102; S6D107; S6D108; S6D114; S6D125; 6D140; S6D155; S6D170
Engine
6BT,6CT,M11,NT855,NH220,K19,K38,IK50,QSB6.7,QSM11
Excavator
320B,C,D; 320DL; 325B,C,D; 330C,D; 336D; 345B.C,D; 365C; 385C,D; 349D; 390D.
Bulldozer
D5C,D,M; D6C,D,N,T,R; D7G,D8K, D8H, D8L, D8N, D9G, H, D10N , D11N.
Wheel Loader
950, 966, 970, 977, 980, 983, 988 series
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Main Product Catalog
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
PRODUCT CONFIGURATION
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Accessories
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Successful Project
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Project in Thailand
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Project in India
Yanmar 4TNV98 Engine 8.5Ton Wheel Excavator with Supporting Legs and 0.3m3 Bucket Capacity
Project in Russia
FAQ
Q1:How long is the warranted time?
For natural broken, 3 months. Guarantee genuine parts.

Q2: What's payment you can accept?
T/T, WESTERN UNION, CHINESE BANK,PAYPAL.

Q3: What's package? Can you give me the package according my requirement?
Yes, Original packing or Neutral packing with wooden box or carton.

Q4: How about the lead time?
1) In stock: 1-3days.Always in 24 hours.
2) Out of stock: It's according to your quantity, and we have cooperated with factory. We will let you know when we quote.

Q5: What's the shipping way you can offer?
1) Big order: By sea or by air.(It can reduce the costs).
2) Small order: DHL, TNT, UPS, FEDEX, EMS,ARAMEX.

Q6: What's the terms of the transaction?
EXW, FCA, FAS, FOB, C&F, CIF, CPT, CIP, DAF, DES,DDP.

Q7: Do you accept small order?
Yes, small order can accept.

Q8: What's brand you can offer in your company?
1) OEM, 100% Genuine parts.
2) Genuine parts.
