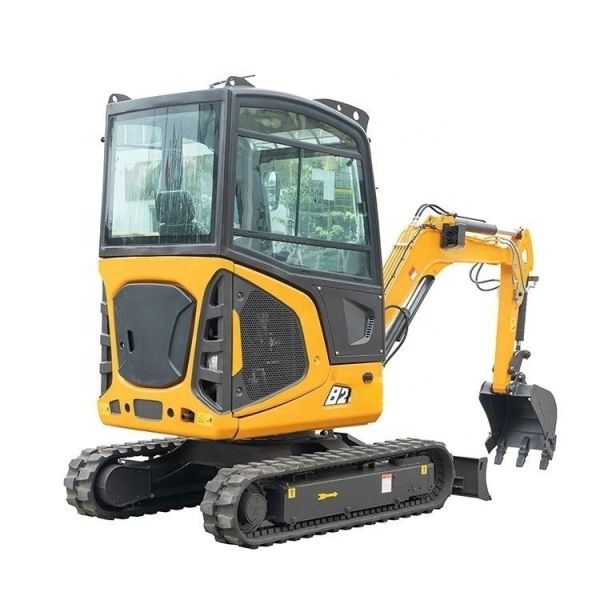

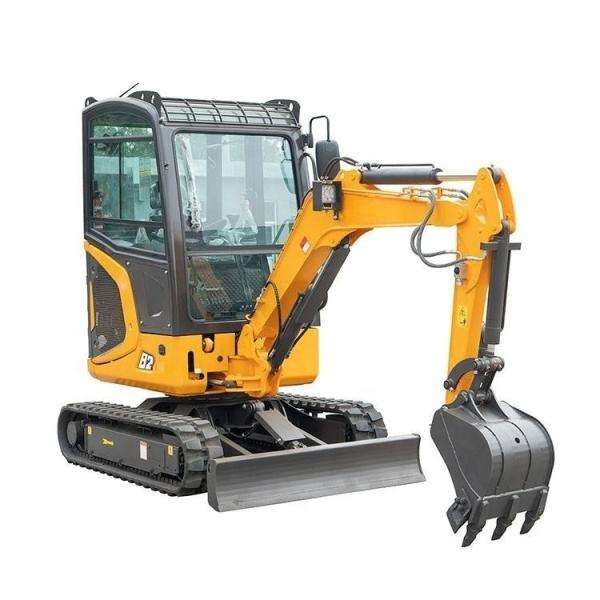

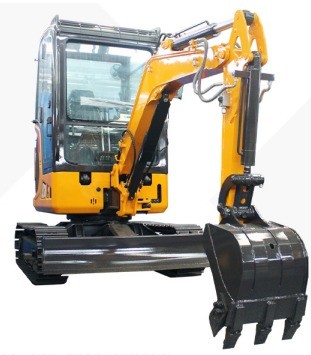

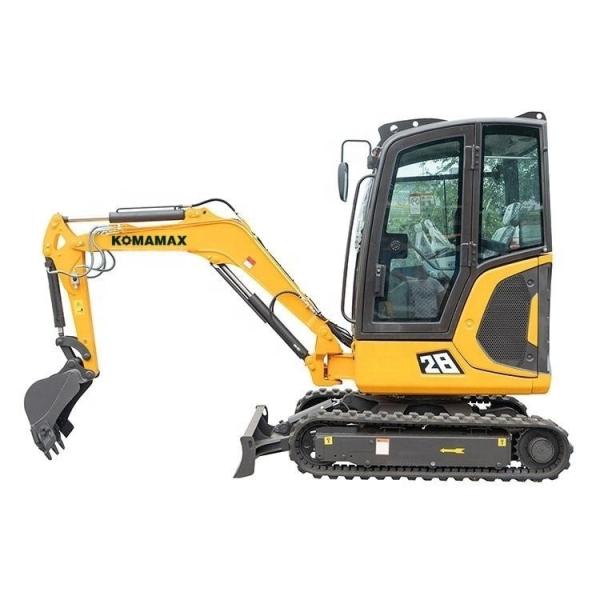

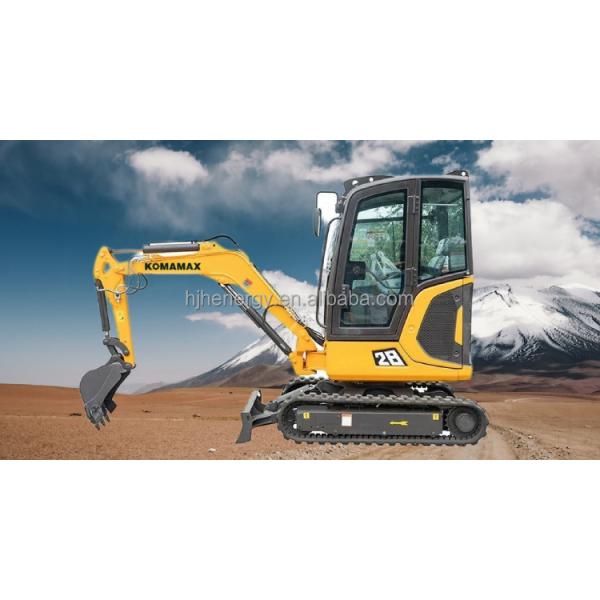

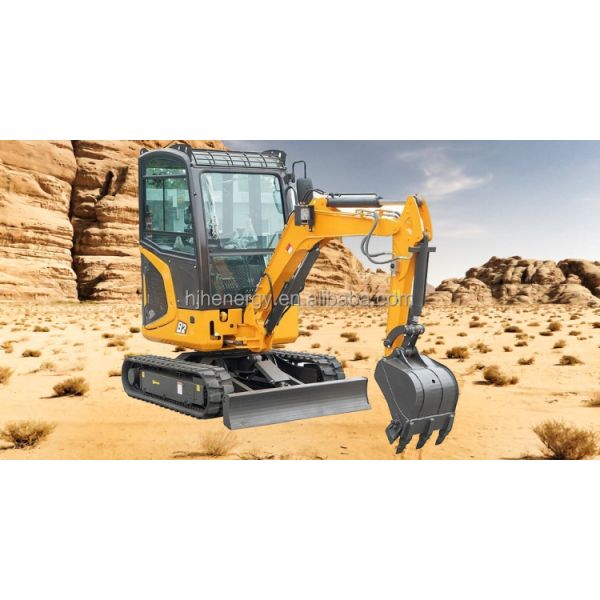

Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Specifications
Operating Weight :
2640kg
Place of Origin :
Shandong, China
Moving Type :
Crawler Excavator
Bucket capacity :
0.05m³
Maximum Digging Height :
4153mm
Maximum Digging Depth :
2396mm
Machine Weight :
2640 kg
Max Digging Radius :
4168mm
Rated Speed :
1.4 / 2.7km/h
Warranty :
1 Year
Hydraulic Cylinder Brand :
JF
Hydraulic Pump Brand :
JF
Hydraulic Valve Brand :
JF
Engine Brand :
Japanese production
UNIQUE SELLING POINT :
With the cab; side swing; telescopic
Power :
14KW
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
Product name :
tracked bucket Mini Excavator
Rated Power :
14.6 kw/2400r/min
Displacement :
1.267L
Bucket digging force :
16.14KN
Max. Pressure :
22Mpa
Overall dimension( LxWxH) :
3918x1454x2469 mm
Wheelbase :
1440mm
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location :
None
Condition :
New
Marketing Type :
Ordinary Product
Price :
$18,570.00/sets 1-9 sets
MOQ :
1 set
Description
Company Profile
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator

About Company
As a large-scale producer for excavator and bulldozer, we have a comprehensive brand and a wide range of models, which can provide
you with the most favorable price.
I look forward to answering your questions about new or used cars.
Click "Query" to get in touch with us!
Products Description
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator

Click here for more details
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Side Swing Mini Excavator Xn28 Micro Digger 2640kg Crawler Excavator 0.05cbm Tracked Bucket Excavator
Exhibition
Product Paramenters
Model
XN28
Brand
RHINOCEROS
Machine Weight
2640kg
Bucket capacity
0.05cbm
Bucket width
558mm
Engine
Yanmar 3TNV80F-SPSY2 / Kubota D1105
Rated power
14.6 kw/2400r/min / 14kw
Displacement
1.267L
Max. speed
1.4 / 2.7km/h
Ground pressure
36Mpa
Swing speed
9rpm
Max. Grade ability
30°
Bucket digging force
16.14KN
Arm digging force
11.7KN
Maximum traction force
13KN
Max. Pressure
22Mpa
Max. Flow rate
61.6 L/min
Fuel tank capacity
22L
Hydraulic oil tank
25.3L
Engine oil tank
3.4L
MAIN DEMENSIONS
Overall dimension( LxWxH)
3918x1454x2469 mm
Wheelbase
1440mm
Total length of track
1892mm
Upper chassis ground clearance
535mm
Counterweight turning radius
885mm
Track width
250 mm
Track height
455 mm
Height of seat to ground
1904mm
Boom swing - left
539mm
Boom swing - right
477mm
OPERATING RANGE
Max. Digging depth
2396mm
Max. Vertical digging depth
2093mm
Max. Digging height
4153mm
Max. Dumping height
2909mm
Max. Digging radius on ground
4168mm
Min. Rotation radius
1857mm
Max. Lifting height of dozer blade
257mm
Max. Digging depth of bulldozer blade
413mm
