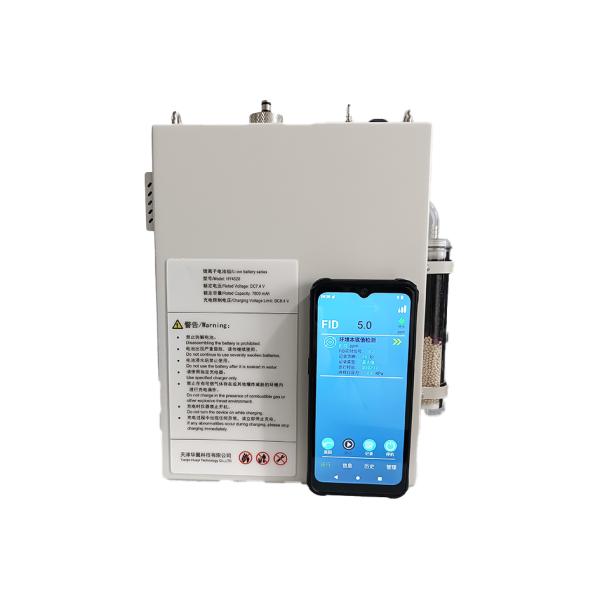

PTM100 Portable VOC Analyzer with Flame Ionization Detector FID

PTM100 volatile organic gas analyzer is equipped with flame ionization (FID) and photoionization (PID) detectors that can work simultaneously and adopts explosion-proof design. It is used for LDAR detection, leakage detection of closed points in oil and gas collection and recovery systems , detection of VOCs on leaking and open liquid surfaces, rapid screening of soil pollutants and comprehensive regional surveys.

Support hydrogen flame ionization (standard configuration) and photoionization dual detectors;
Digital display of hydrogen pressure and intelligent reminder of remaining working time;
Intelligent reminder of battery power and remaining time;
FID automatic ignition, flame temperature real-time monitoring;
Built-in database of more than 200 volatile organic gases;
Host explosion-proof mark: Ex db ia IIC T4 Gb;
The explosion-proof hand operator uses a 6.5-inch touch screen and supports Bluetooth and WIFI;
Explosion-proof mark of handheld operator: Ex ib IIC T4 Gb/ Ex ibD 21 T130℃.

This instrument is used for testing and calibration of gas analysis instruments, reactor gas supply, sample gas debugging, gas mixture synthesis, etc. It can pre-set the output gas concentration and duration, and automatically complete the gas matching experiment project. For example: "Determination of Volatile Halogenated Hydrocarbons in Waste Gas from Stationary Pollution Sources - Air Bag Sampling - Gas Chromatography (HJ1006-2018)", "Determination of Total Hydrocarbons, Methane and Non-methane Total Hydrocarbons in Ambient Air - Direct Injection - Gas Chromatography (HJ 604-2017)", "Determination of Benzene Series in Waste Gas from Stationary Pollution Sources - Air Bag Sampling/Direct Injection - Gas Chromatography (HJ 1261-2022)", and CO/SO2 matrix test in "Determination of Sulfur Dioxide in Waste Gas from Stationary Pollution Sources - Constant Potential Electrolysis (HJ57-2017)".

​

​
