Specifications
Model Number :
RDO-9136A/B
Place of Origin :
china
MOQ :
1
Price :
360USD/SET
Payment Terms :
T/T
Packaging Details :
980*910*810 mm
Capacity :
136L
Rated power supply :
220V 50Hz
Temperature control range :
RT10℃-300℃
Rated power :
2000W
Package size :
680*910*810
Divider standard/Max :
2/8
Gross weight :
66kg
Description

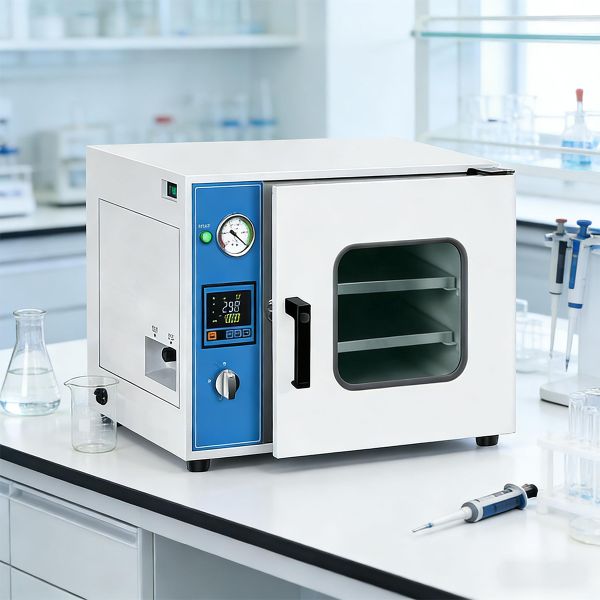

RDO-9136A Drying Oven with Digital Control

◆ The shell of the product is made of high quality cold plate processing, and the surface is treated by spraying technology.

◆ The studio can choose stainless steel or galvanized sheet processing and manufacturing.
◆ Intelligent digital display PID temperature control meter, with timing, overtemperature alarm indication, temperature deviation correction, temperature control self-tuning and other functions.
◆ Large double toughened glass observation window, easy to observe the changes in the box.
◆ New synthetic silicone sealing strip, beautiful appearance, long-term high temperature operation, longer service life.
◆ Hot air circulation system adopts low noise self-cooling fan to ensure longer service life of the fan and more uniform temperature in the box.
◆ The equipment is equipped with four-speed three-speed fan speed control switch, the user can adjust the wind speed according to the need.
◆ Can be installed LCD instrument, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions.

◆ Tip: The temperature deviation in the working room is large after the fan is turned off. The fan

should not be turned off without special circumstances.


HiYi RDO Series RDO-9136A/B Drying Ovenswith with Digital Control


Model RDO-9136A/B
Capacity 136L
Temperature control range RT10℃-300℃
Temperature resolution 0.1
Temperature fluctuation ±1℃ (at 100℃)
Temperature distribution accuracy ±2.5%
Liner material A: Galvanized inner liner B: 201 stainless steel inner liner
Shell material Cold-rolled steel plate (surface electrostatic spraying)
Insulating layer Ceramic fibre
heater Stainless steel heating pipe
Rated power 2000W
Exhaust hole φ35mm(top) one
Control panel LCD
Temperature sensor PT100
Timing function 0-9999min
Mode of operation Fixed value operation, timed operation, automatic stop
Wind speed regulation Mechanical knob (4 speed 3 speed)
Constant wind speed operation 450*550*550
Overall dimensions (mm) 620*860*715
Package size (mm) 980*910*810
Divider standard/Max 2/8
Spacer spacing 55mm
Bulkhead bearing 16kg
Gross weight 66kg
Additional function Sensor deviation correction, overtemperature alarm, temperature overshoot PID self-tuning, internal parameter locking, power off parameter recovery
Optional function Program control instrument, printer, 485 interface, USB interface, SMS alarm
