Specifications
Model Number :
RE200-Pro
Place of Origin :
China
MOQ :
1
Price :
4689-4989USD/set
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Packaging Details :
1160*600*1860mm
Supply Ability :
1000/set/month
Delivery Time :
5-7 business days
Description

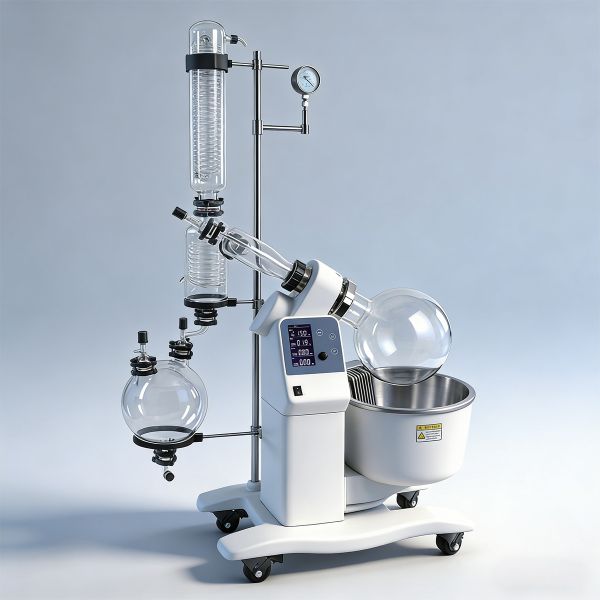

HiYi RE200-Pro Industrial Digital Rotary Evaporator 20L
Product Overview
The RE200-Pro Industrial Digital Rotary Evaporator is a high-capacity 20L system designed for industrial-scale solvent recovery and concentration applications. Featuring advanced digital controls and robust construction, this evaporator delivers reliable performance for demanding laboratory and manufacturing environments.
Key Features
  • Large LCD digital display showing heating temperature, rotation speed, direction, and time
  • One-click automatic motor lifting with 180mm stroke for smooth, silent operation
  • Water/oil heating bath with wide temperature range from room temperature to 180℃
  • Speed range from 10 to 150rpm with clockwise and anticlockwise interval operation for drying processes
  • Two-section vertical triple coil condensing tube with large surface area for high-efficiency sample recovery
  • Quick-connect device for easy and fast installation of evaporating flask
  • PTFE double sealing ring providing excellent sealing performance
  • Switch valve for continuous collection without compromising system vacuum during solvent distillation
HiYi RE200-Pro Industrial Digital Rotary Evaporator
Technical Specifications
Performance Parameter Specification
Temperature Range Room temperature to 180℃ (water and oil bath)
Temperature Control Accuracy Water: ±1℃, Oil: ±3℃
Rotation Speed 10-150rpm
Evaporation Capacity Maximum 4.5L/h (75% Alcohol)
Power Requirements 220V/50-60Hz, 4600W total power
Heating Power 4400W
Time Setting Range 0-999 minutes
Lift Stroke Motorized 180mm
Display LCD (temperature/speed/clockwise and anti-clockwise/time)
Temperature Control Micro processor PID control
Component Specifications
Component Specification
Evaporation Flask Round flask 20L
Receiving Flask Round flask 10L with drain valve
Condenser Two-section vertical triple coil condenser, cooling surface 1.2m²
Heating Bath Size 450*240mm
Hose Connection Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm
Dimensions [D*W*H] 1160*600*1860mm
Safety Features
  • Motor over-current protection
  • Earth-leakage protection
  • Lifting overload protection
  • Boil-dry protection
  • Overheating protection
