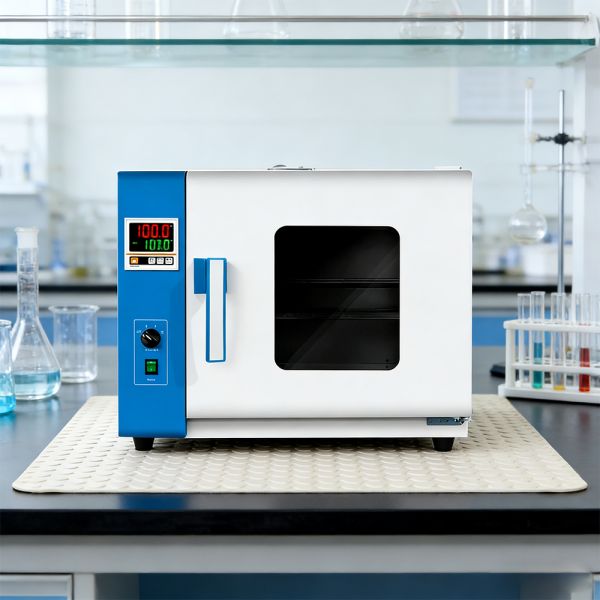

HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
Specifications
Supply Ability :
1000/set/month
Model :
RDO-9042A/B
Rated power :
1000w
Package size mm :
580*730*600mm
Delivery Time :
5-7 business days
Volume :
42L
Temperature control range :
RT10℃-300℃
Divider standard/Max :
2/4
Gross weight :
43kg
Model Number :
RDO-9042A/B
Place of Origin :
china
MOQ :
1
Price :
260USD/SET
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Packaging Details :
580*730*600mm
Description
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control
HiYi RDO-9042A/B Air Drying Oven with Precise Temperature Control 42L Volume and Hot Air Circulation System
Product Overview

The RDO-9042A/B Air Drying Oven features advanced temperature control technology and durable construction for reliable industrial drying applications.

Key Features
  • High-quality cold plate shell with electrostatic spray surface treatment
  • Stainless steel or galvanized sheet studio options
  • Intelligent digital PID temperature control with timing and overtemperature alarm
  • Large double-toughened glass observation window
  • Synthetic silicone sealing strip for extended high-temperature service life
  • Low-noise self-cooling fan for uniform temperature distribution
  • Four-speed fan control for adjustable airflow
  • Optional LCD display, program control, printer, and communication interfaces
Technical Specifications
Model RDO-9042A/B
Volume 42L
Power Supply Voltage 220V/50HZ
Temperature Control Range RT10℃-300℃
Temperature Resolution 0.1℃
Temperature Fluctuation ±1℃ (at 100℃)
Temperature Distribution Accuracy ±2.5%
Liner Material A: Galvanized inner liner
B: 201 stainless steel inner liner
Shell Material Cold-rolled steel plate (surface electrostatic spraying)
Insulating Layer Ceramic fibre
Heater Stainless steel heating pipe
Rated Power 1000W
Exhaust Hole φ35mm (top) one
Control Panel LCD
Temperature Sensor PT100
Timing Function 0-9999min
Mode of Operation Fixed value operation, timed operation, automatic stop
Wind Speed Regulation Mechanical knob (4 speed 3 speed)
Working Chamber Dimensions 350*350*350mm
Overall Dimensions 520*660*530mm
Package Size 580*730*600mm
Divider Standard/Max 2/4
Spacer Spacing 60mm
Bulkhead Bearing 16kg
Gross Weight 43kg
Additional Functions

Sensor deviation correction, overtemperature alarm, temperature overshoot PID self-tuning, internal parameter locking, power off parameter recovery

Optional Functions

Program control instrument, printer, 485 interface, USB interface, SMS alarm

Important Note: Temperature deviation in the working chamber increases significantly when the fan is turned off. The fan should remain operational except under special circumstances.
