Industrial Air Distribution Diffuser for High Pressure Compressed Air Lines – GKQ-II
Industrial Air Distribution Diffuser for High Pressure Compressed Air Lines – GKQ-II
Specifications
Brand Name :
Zetron
Certification :
CE Atex
Place of Origin :
China
MOQ :
1
Price :
200~10000USD
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
999
Description

Industrial Air Distribution Diffuser for High Pressure Compressed Air Lines – GKQ-II

Product Specifications
Gas types Air, N2, CO2, O2, Ar, and other inert gases
Traffic flow rates 100 LPM, 50 LPM, and 28.3 LPM are available.
Input pressure range 1.5-8 bar
Intake pipe dimensions Inner diameter: 5mm; Outer diameter: 8mm
Air outlet pipe dimensions Inner diameter: 10mm
Shell material 316L stainless steel
Operating conditions: Temperature 5°C-30°C, relative humidity <80% (no condensation)
Storage conditions: Temperature 0°C - 40°C; Relative humidity: <80%; No condensation.
Warranty 1 year
Overview

The GKQ-II high pressure diffuser is designed for safe pressure reduction and stable sampling of compressed gases before particle or microbial testing. It converts high-pressure air or inert gases to atmospheric pressure and delivers clean, steady flow to downstream instruments such as airborne particle counters (APC) and biological air samplers (BAS). Compliant with ISO 8573-4, it features an integrated exhaust filter to minimize cross-contamination and supports multiple flow rates of 28.3, 50, and 100 L/min for reliable cleanroom and compressed gas monitoring applications.

Application

Industrial Air Distribution Diffuser for High Pressure Compressed Air Lines – GKQ-II

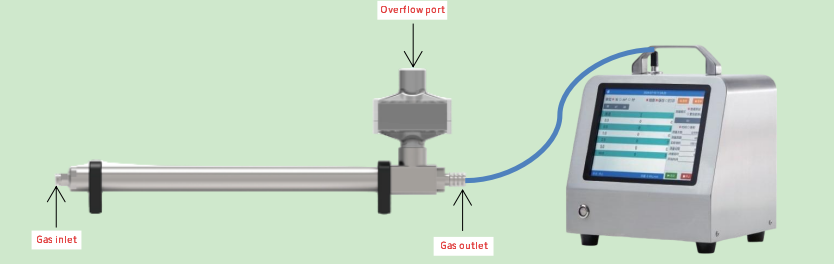

Compressed gas is depressurized to atmospheric pressure by a high-pressure gas diffuser and then transported to the downstream sampling/detection device for sampling or detection.
