Dedicated UVC 254 nm Germicidal Lamp Measurement
Wireless monitoring from a certain distance using Bluetooth and the WeChat mini program.
Timed shutdown can be configured, and test data are saved automatically at shutdown.
Connection to PC software supports test-report generation and data export.
LS126C displays a power measurement curve to help analyze changes in light-source intensity.
A 1-meter hook supports measurement at the specified 1-meter distance.

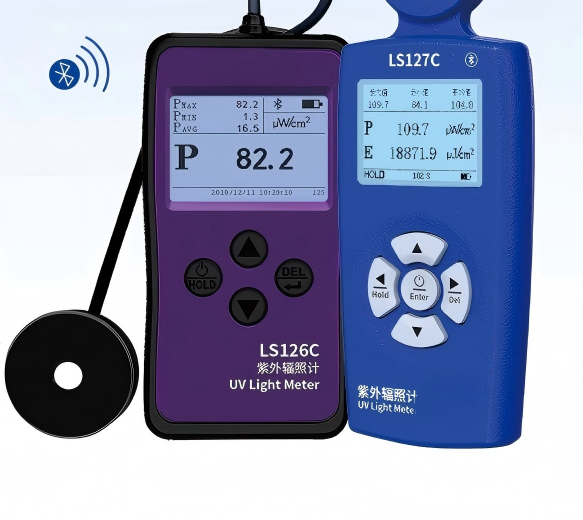

| Model | LS126C UV Light Meter | LS127C Integrated UV Light Meter |
|---|---|---|
| Spectral Response | 230–280 nm, λp = 254 nm | 230–280 nm, λp = 254 nm |
| Measuring Range | 0–20,000 μW/cm² | 0–20,000 μW/cm² |
| Resolution | 0.1 μW/cm² | 0.1 μW/cm² |
| Relative Indication Error | ±8% (relative to NIM standard) | ±8% (relative to NIM standard) |
| Power Value Storage Interval | 1 s / 10 s / 60 s (optional) | — |
| Recording Period | 10 min / 100 min / 600 min | 0–99,999 s |
| Auto Power-off Time | 1–10 min | 1–255 min |
| Recording Data | 25 sets | 9 sets |
| PC Software Data Export | Yes | Yes |
| Power Measurement Curve | Yes | No |
