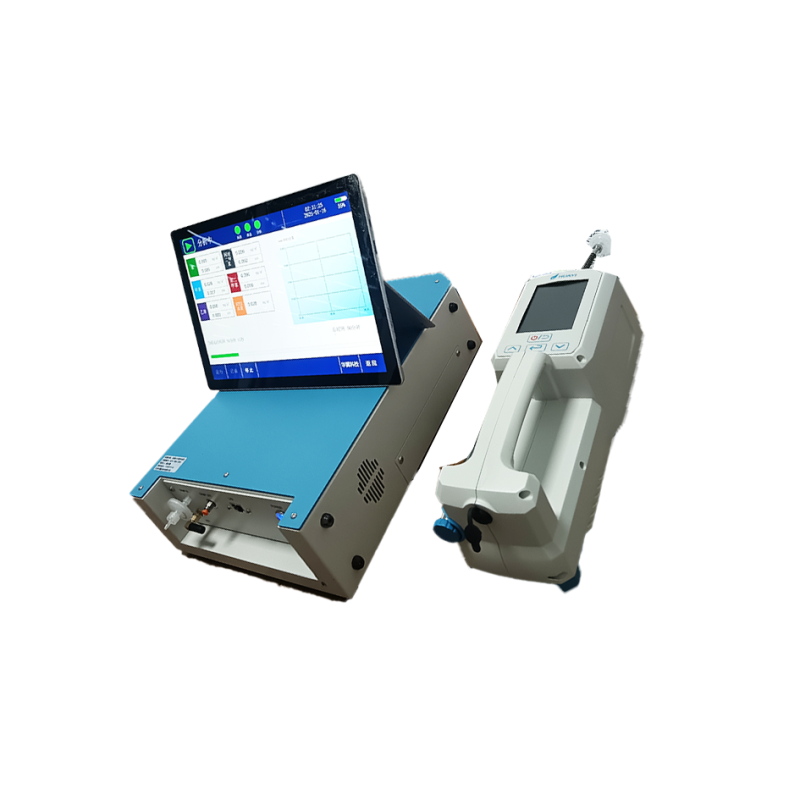

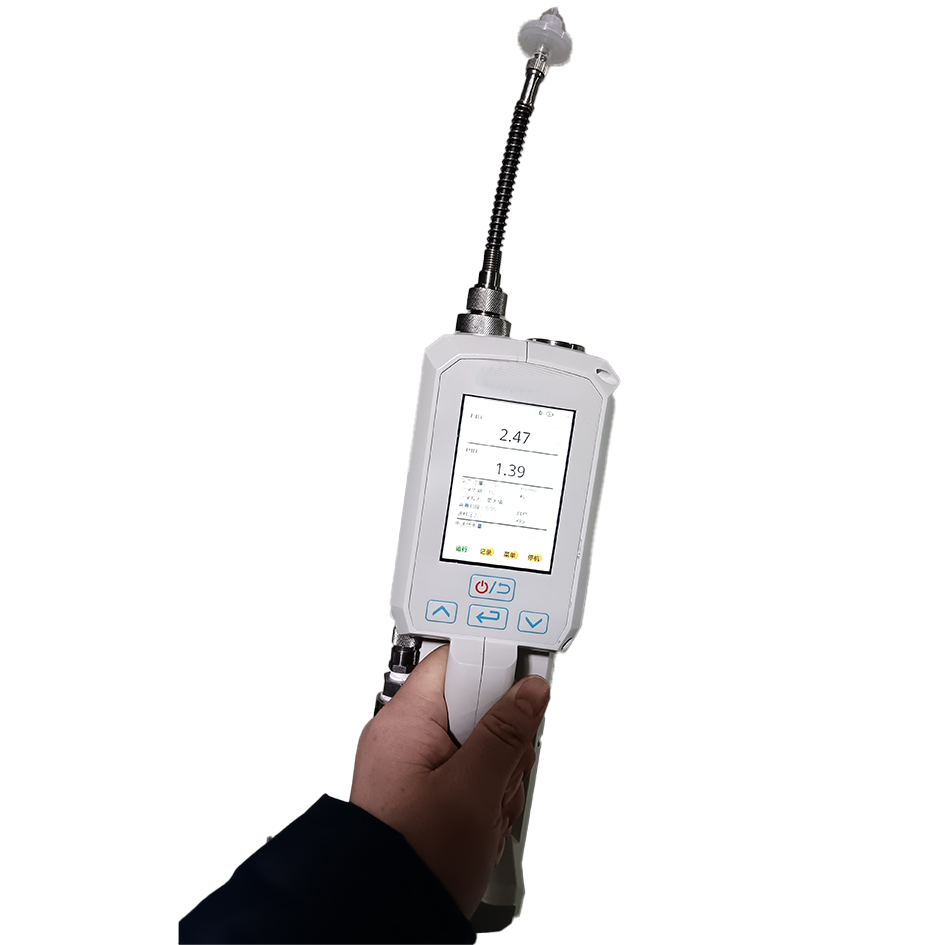

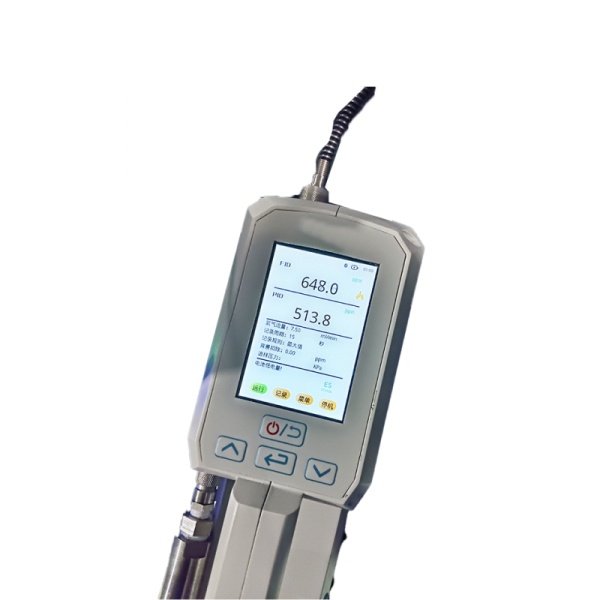

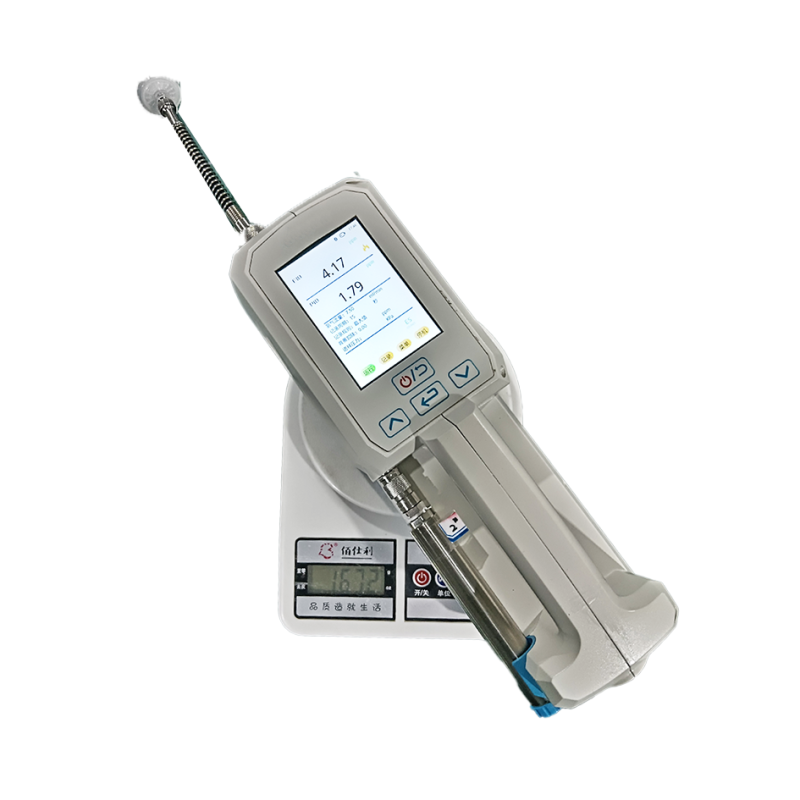

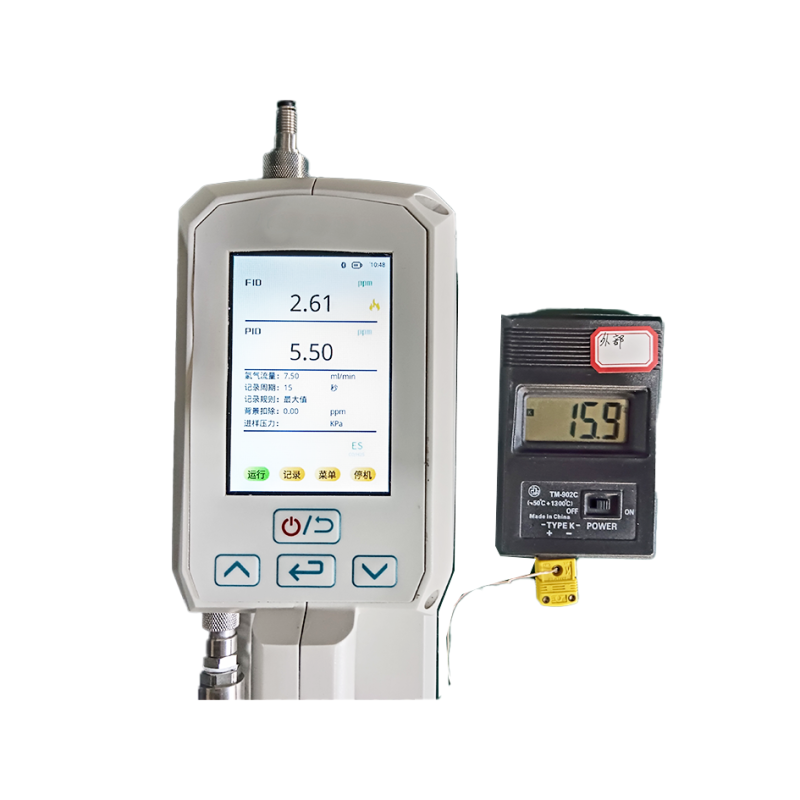

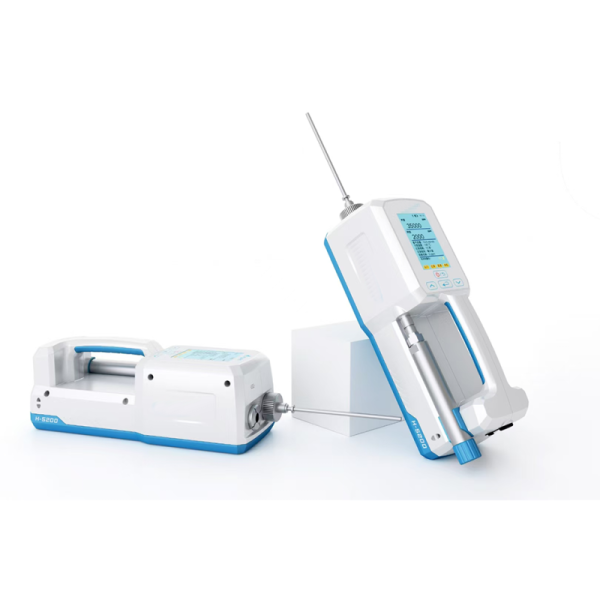

PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
PTM100-H Handheld Organic Gas Analyzer
Specifications
Brand Name :
Zetron
Certification :
CE Atex
Place of Origin :
China
MOQ :
1
Price :
2000~30000USD
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
999
Description
PTM100-H Handheld Organic Gas Analyzer
Product Specifications
Main parameters Parameter range
Measuring range FID: 0～ 45,000 ppm
PID: 0～2,000 ppm , multiple ranges available; [Optional configuration]
Method detection limit FID: 0.5 ppm methane
PID: 0.5 ppm isobutylene
Accuracy ±5% of reading or ±1 ppm, whichever is greater
±5% of reading or ±1 ppm, whichever is greater
Repeatability FID: 2% at 500 ppm methane
PID: 1% at 100 ppm isobutylene
Responding to an event (T 90 ) FID: ≤3.5 s (10000ppm methane)
PID: ≤3.5 s ( 5 00ppm isobutylene)
Sampling flow ≥500 ml/ min ( adjustable)
Battery life ≥4 hours (0℃)
Hydrogen endurance ≥ 15 hours
Power adapter DC8.4 V 1A
Work Environment -10~45° C , 10 % ~95% RH
Gas interface 1/4 inch
Main parameters Parameter range
Overview

he PTM100-H handheld organic gas analyzer comes standard with a flame ionization detector (FID) and can be optionally equipped with a photoionization detector (PID). It features explosion-proof and intrinsically safe design, weighs only 1.6kg, making it lightweight and portable. It can effectively detect most volatile organic gases and some inorganic gases, and is suitable for applications such as LDAR testing, leak detection in oil and gas collection and recovery systems, VOCs detection from leaks and open liquid surfaces, and rapid identification and comprehensive regional surveying of soil pollutants.

Features
  • Miniature FID detector with performance comparable to online systems.
  • EPC precisely controls hydrogen flow rate to ensure data accuracy.
  • Solid-state hydrogen storage cylinder provides safe and stable hydrogen supply.
  • Detachable and quickly replaceable battery for long-lasting operation.
  • 3.5-inch screen and buttons for two-step detection startup.
  • Reserved interface for expandable sensors.
  • Stable and reliable signal processing technology.
  • Fully digital monitoring and intelligent diagnostics.
  • Explosion-proof rating: Ex db ia IIC T4 Gb.
