One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
Specifications
Brand Name :
Zetron
Certification :
CE Atex
Place of Origin :
China
MOQ :
1
Price :
12000~13000USD
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
999
Description
One-III Ultrasonic Airflow Pattern Tester for Cleanroom Validation
Product Specifications

Model

One-III

Atomization Rate

6000~10000ml

Mist Particle Size

1~10 micrometers

Atomization Medium

Deionized Water / Purified Water

Water Tank Capacity

4~6 Liters

Remote Control Distance

0~20 meters

Power Supply

AC220V 50Hz

Power Consumption

700W

Water Refill Method

Automatic / Manual

Protection Features

Overheat, Overload, Short Circuit

Continuous Operation Time

40~240minutes

Weight

10KG

Dimensions

W304 x H300 x D294 (mm)

Overview

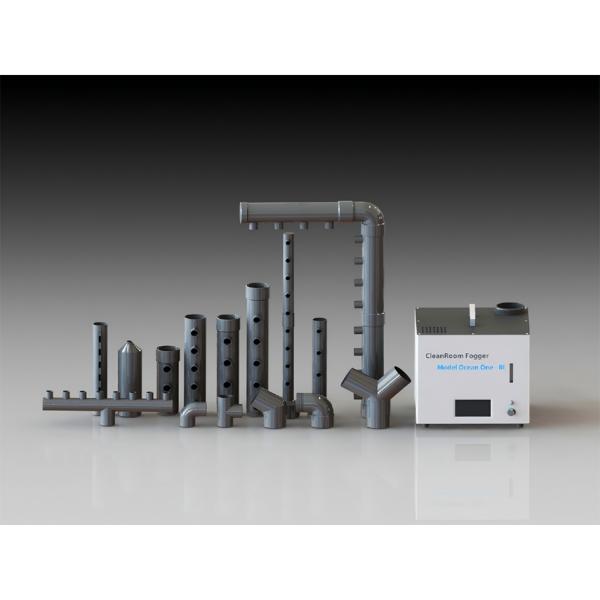

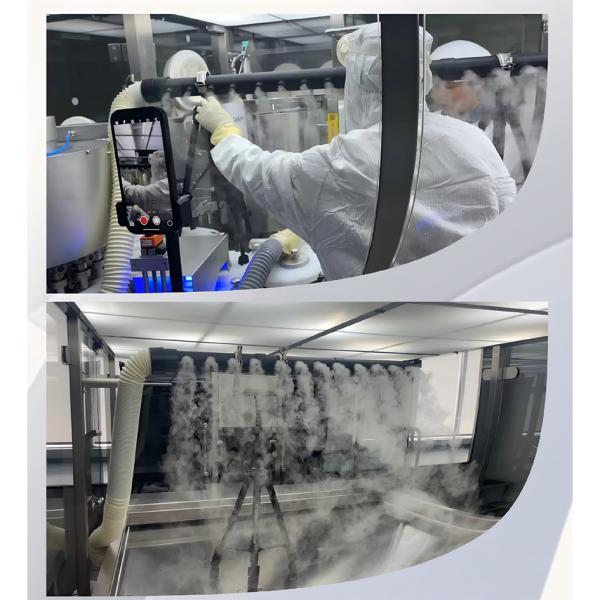

The Ocean One-III Airflow Pattern Tester is a standard ultrasonic water mist generator. This device utilizes the principle of ultrasonic atomization,using an ultrasonic atomizer to atomize purified water into high-concentration mist particles between 1-10 micrometers, which is then expelled by air pressure. When connected to a laminar flow tube,it can visually display the status of airflow organization within the tested space and identify turbulence. The consumable material used in our company's Airflow Pattern Tester is deionized water or purified water. Therefore, the generated smoke is non-toxic,non-polluting, and ensures no residue from the source. The atomization process also uses mist particle sizes with a relatively long retention time,to ensure that the pattern displayed by the mist particles during use is more intuitive. Device Application Environments: Cleanroom airflow direction testing, air purifier demonstrations, enclosure testing, laboratory duct testing,and airflow pattern inspection for related products, etc.

Features
4.3-inch full-color LCD touchscreen displays operating time, wind speed, atomization function, and other parameters, all adjustable with a simple touch.
The atomization amount and wind speed can be adjusted from 0to 100%, which is equivalent to 100gears. By cooper-ating with each other, the optimalratio suitable forallsce-narios can be adjusted
Remote control function, through remote control, all param-eters of the instrument an be adjusted, including atomiza-tion volume,wind speed,start,pause,and stop
Knob adjustment, emergency adjustment function,can also adjust all parameters
Triple antileakage protection,short circuit, overload,over-voltage,low waterlevel sel stop, and equipped with selfre-coveryinsurance,allintegrated protection.
When the automatic water replenishment function is activated, the water level can be calibrated to a constant level, ensuring that the mist output remains uniform and stable throughout long-term testing, without fluctuations due to varying water levels.

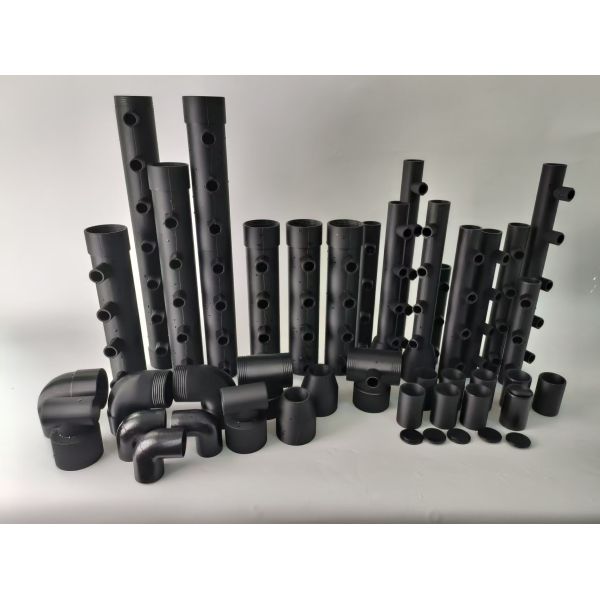

The test advection pipe is a threaded extension type that can be infinitelyextended according to the scene.It can also be connected and spliced ​​into various shapes through various angles of bends to cope with different testing scenarios angles of bends to cope with different testing scenarios
Instrument catheters can becustomized to meet various formsand stylesof catheters,special shaped tubes, and small acessory customization requirements as needed
Made from all-aluminum material, it is lightweight and durable. The sharp edges are processed using fully CNC machining technology, and all four corners feature a 4mm rounded design, making it safe and easy to clean.
