Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Zetron OPC-P2 Portable Oil Particle Counter
Specifications
Brand Name :
HiYi
Model Number :
OPC-P6
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15 work days
Packaging Details :
paper case
Detection range :
1～500μm
Detection channel :
≥5μm, ≥8μm, ≥10μm, ≥12μm, ≥25μm, ≥100μm (channels can be customized according to user requirements)
Power :
AC220V±10%; 50Hz≤90W
Dimension :
420*350*470(mm)
Description

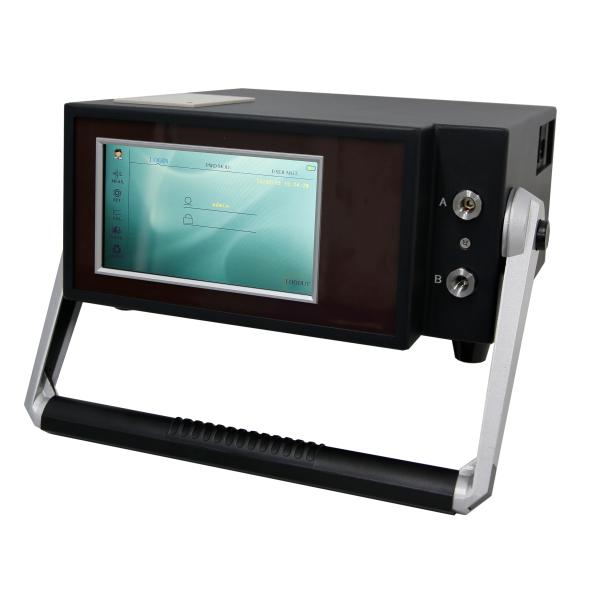

OPC-P2 Portable Oil Particle Counter

OVERVIEW


OPC-P2 Portable Oil Particle Counter adopts Laser Extinction Technology, is designed to measure the particles' size and quantity in oil liquid. It is Suitable for tests of pollution degree of solid particles in hydraulic oil, lubricating oil, fire resistant oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or Battery.

Zetron OPC-P2 Portable Oil Particle Counter

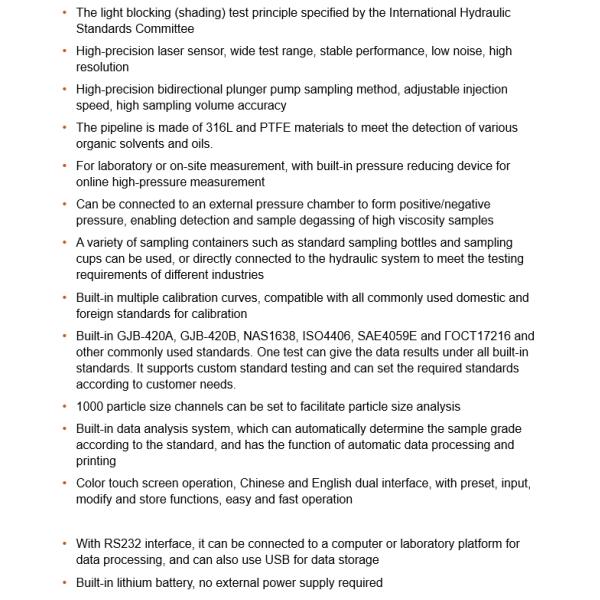

FEATURES & BENEFITS

Zetron OPC-P2 Portable Oil Particle Counter




APPLICATION


So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or Battery.



SPECIFICATIONS


​

Light source

Semiconductor laser

Particle size range

0.8-600μm (depending on different sensors)

Sensitivity

0.1μm

Customized detection channels

8+8 channels, arbitrary setting of particle size

Sampling volume

0.2-1000ml, interval 0.1mL

Sampling accuracy

better than ± 1%

Sampling speed

5-80mL/min

Cleaning speed

5-80mL/min

Cleaning volume

can be set between 0~90mL

Counting accuracy

<±5%

Resolution

≤ 10%

Repeatability

RSD<2%

Limit overlap error

12000-40000 grains/mL

Offline detection viscosity

≤100cSt (viscosity is too large optional air pressure chamber)

Pressure range

low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve)

On-line detection interval time

arbitrary settings

Testing sample temperature

0 ºC~ 80ºC

Working temperature

-20ºC~60

Storage temperature

-30ºC~80

Screen size

7 inch

Power supply

AC100-240V, 50/60Hz

Battery capacity

5200mAh

Battery running time

6-8 hours

Overall Dimension

310×305×135mm

Instrument weight

7.5kg
Zetron OPC-P2 Portable Oil Particle CounterZetron OPC-P2 Portable Oil Particle CounterZetron OPC-P2 Portable Oil Particle CounterZetron OPC-P2 Portable Oil Particle Counter

​
