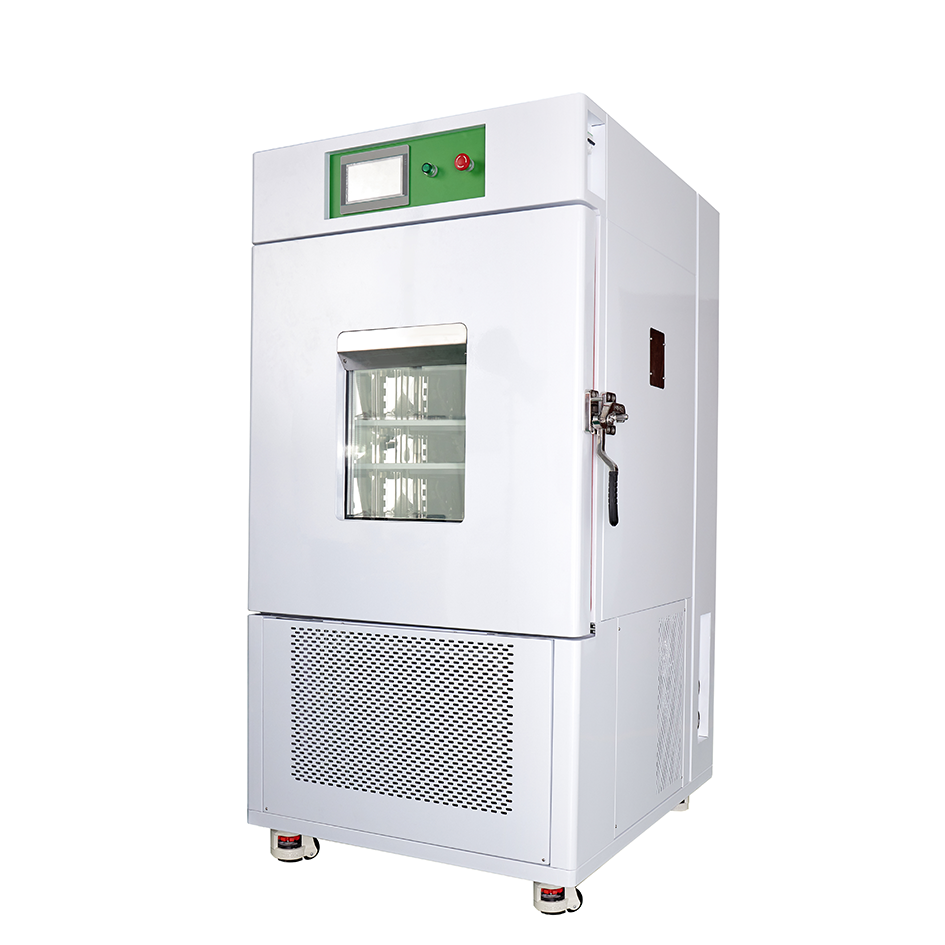

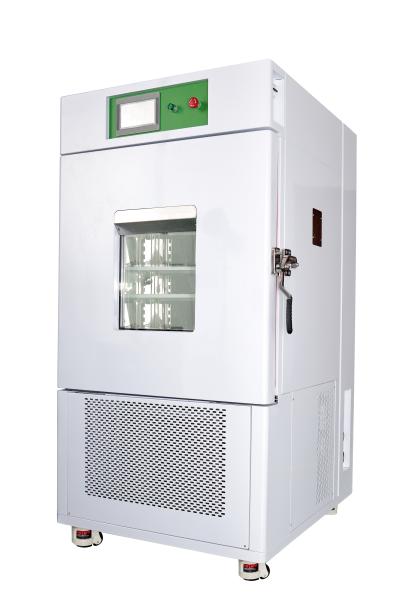

LHL Dynamic Temperature Test Chamber with Humidity Control
LHL Dynamic Temperature Test Chamber with Humidity Control
LHL Dynamic Temperature Test Chamber with Humidity Control
LHL Dynamic Temperature Test Chamber with Humidity Control
Specifications
Brand Name :
HiYi
Model Number :
LHO
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
2000~50000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15 work days
Packaging Details :
paper case
Temperature Range :
10~65℃with light / 0~65℃without light
Humidity Range (RH) :
30~95%
Operating Temperature :
5~30℃
Power supply :
AC 220V,50HZ
Timing Range :
1~99 hours/period
Description
LHL Dynamic Temperature Test Chamber with Humidity Control
OVERVIEW

For industrial and mining enterprises, laboratories, scientific research units, etc.

FEATURES & BENEFITS
  • One shot injection molding water tank, effectively preventing spillage. The water circuit system adopts upper and lower water level system, which can effectively protect and prevent dry burning.
  • Two standard test holes for threading (diameter 10cm), on the left and right sides.
  • Adopting the unique balanced temperature adjustment method, high accuracy and stable control.
  • Touch screen, PID control.
  • The refrigeration controller automatically controls the compressor and refrigeration valve according to the set value and actual value of the temperature inside the box to meet different test requirements, reduce the operating power of the equipment and ensure the safe operation of the compressor.
  • Polished stainless-steel chamber. Two racks. Powder coating steel housing.
  • Internal light bar for easy observation.
  • USB port for recording data.
SAFETY DEVICE
  • Leakage protection
  • Over temperature protection
  • Compressor over current protection
  • Over compressing protection
  • Water shortage protection
  • Heater overheats protection
  • Audible and visual alarm system
OPTIONAL
  • LAN communication interface
SPECIFICATIONS
Model LHL-120-B
LHL-120-C
LHL-120-E		 LHL-225-B
LHL-225-C
LHL-225-E		 LHL-504-B
LHL-504-C
LHL-504-E
Volume 120L 225L 504L
Temp. Range B: -20～+150℃
C: -40～+150℃
E: -70～+150℃
Temp. Stability ±0.5℃
Temp. Deviation ±2℃
Temp. Uniformity ≦2℃
Humidity Range 20~98%RH
Humidity Deviation ±3%RH(>75%RH)
±5%RH(≦75%RH)
Chamber Size(W*D*H) 45*45*60cm 50*60*75cm 70*80*90cm
Exterior Size(W*D*H) 80*110*170cm 90*126*190cm 115*150*200cm
Operating Temp. +5～25℃
Power Supply AC380±10﹪V 50±0.5Hz/AC220±10﹪V 50±0.5Hz
Power Rating 2500W 3000W 5000W
Insulation layer Polyurethane foam insulation/Fiberglass
Temp. Sensor PT100
Cooling method Compressor, Air cooling
