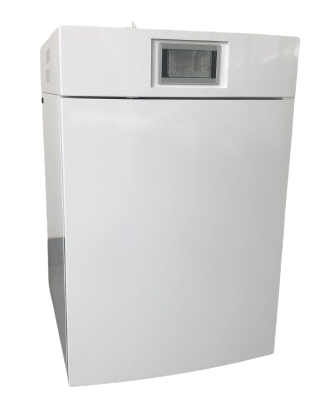

WJ-3T CO2 Incubator | Touch Screen Control | Infrared CO2 Sensor | Cell & Tissue Culture
CO2 Incubator is widely used in modern medicine, biology, chemistry and agriculture science for the culture of biological cells, tissues and bacterial.
- Microcomputer control, touch screen, accurate and easy for operation.
- Imported infrared CO2 sensor and gold-plated probes to ensure accuracy, long life time.
- Adopting PID control technology, the CO2 concentration can be freely set within range of 0 to 20%, alarm for over concentration and concentration rise too slow.
- Water jacket and air jacket structure are available, polished stainless-steel chamber with air duct. Housing is made of powder coated steel plate.
- Equipped with fan for forced convection, ensuring good temperature uniformity and the balance of CO2 concentration inside.
- When door opened, the fan and the CO2 intake valve will be automatically turned off and heating will be stopped to reduce the pollution caused by the entry of air
- Alarm function for over-heating, lack of water (water jacket), unaspirated, ensuring the safe operation of the equipment.
- Equipped with UV sterilization.
- Natural evaporation for humidification to ensure the chamber can maintain good humidity.
- Equipped with leakage protection and a spare mechanical thermostat to ensure the product work normally even the main temperature control failed.
| Model |
WJ-3-50T |
WJ-3T |
WJ-3-160T |
WJ-3-270T |
LCI-1000T |
| Chamber Volume(L) |
50 |
80 |
160 |
270 |
1000 |
| Temperature Range |
RT+5~60℃ |
| Temperature Stability |
≤±0.2℃ |
| Temperature Uniformity |
≤±0.3℃ |
| CO2 Range |
0~20% |
| CO2 Control Accuracy |
± 0.1% (Imported sensor) |
| Humidity Method |
Natural Vaporization |
| Power Supply |
AC220V,50HZ |
| Device Safety |
Over Temperature safety, Leakage breaker & Alarm Function |
| Convection |
Forced air convection |
| Testing hole on inner door |
φ16mm |
| Operating Temp. |
+18~30℃ |
| Perforated shelf (Std/Max) |
2/8 |
2/10 |
3/13 |
3/16 |
3/18 |
| Power Rating(W) |
600 |
600 |
900 |
1400 |
2600 |
| Chamber Size (W*D*H) cm |
35*35*41 |
41*44*51 |
50*51*65 |
60*60*77 |
100*100*96 |
| Exterior Size((W*D*H)cm |
45*46*68 |
56*64*90 |
65*73*105 |
72*75*112 |
115.3*117.5*143.3 |
