Specifications
Brand Name :
HiYi
Model Number :
MS600-L
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15 work days
Packaging Details :
paper case
Measuring range :
0-65535 Ppm
Detection range :
50 m
Alarm way :
LCD alarm, sound alarm
Working time :
>8 Hours
The equipment size :
74.5X36.5X142.5mm
Description

Ms600-L Remote Gas Detector for Real-Time Methane Leak Monitoring and Alerts


OVERVIEW

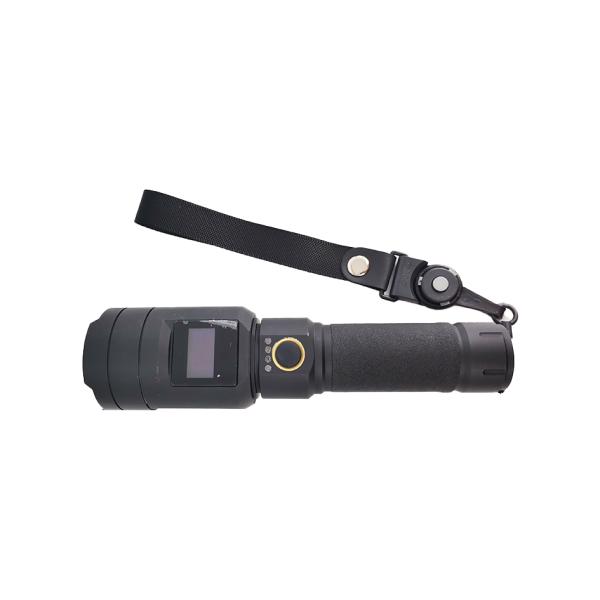

The remote detector MS600-L Remote Laser Methane Gas Detector is composed of a transmitter unit and a receiver unit, the two units are integrated in a compact housing. When it probes gas leakage in a remote area, the transmitter emits a laser beam to a distant reflector the area. While the laser beam passes through the possible leakage point in the area, the receiver receives the reflected light as the feedback signal for processing and calculation. Utilizing TDLAS ( Tunable Diode Laser Absorption Spectroscopy) technology, JJY150 / JJY100 can accurately and instantaneously provide the cumulative methane concentration results in the area, and trigger the alarm if the methane concentration is above alarm level.


FEATURES & BENEFITS
  • The remote detector can be continuously used o 8 hours.
  • In shutdown state, standby time will last more than 60 days.
  • Protection class IP65, corrosion resistance, drop resistance
  • Easy to operate by using only one button.
  • Waterproof housing design, suitable for industrial site use.
  • The remote detector has a built-in Bluetooth module (optional), which can communicate with smart phone in real time.
  • Pocket design with 380g light weight
  • User-friendly one button operation
  • Tunable Diode Laser technology guarantee the distance notless than 50 meters
  • Device intelligent phone inspection system for detectionresults and path recording



APPLICATION


The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion prevention.


SPECIFICATIONS


​​
Parameter The minimum Typical values The maximum Unit
Size Length 201 * Diameter 54 mm
Housing Material Aluminium Alloy --
Surface Finish Black Oxide --
Weight -- 350 -- g
Waterproof Level IP65 --
Detection Distance 0.1 30 50 m
Response Time -- 5 50 ms
Methane Detection range 0 -- 50000 ppm · m
Storage Temperature -40 -- 70 ºC
Detectable Pressure 20
1200 Mbar
Accuracy (0- 1000) ±50 ppm · m
(1000-50000)±20% of the actual value
Laser Safety Grade CLASS I --
Operational Voltage 6.5 7.2 8.4 V
Power Consumption 1.5 2 2.5 W
Starting -- 1 -- A
Current
Explosion-Proof Meet Ex ib IIC T4 Gb
Intrinsic Safety Uo :8.4V Io:1.2A
Operational Temperature -20 -- 50 ºC
Operational Humidity -- -- 98(No %RH
