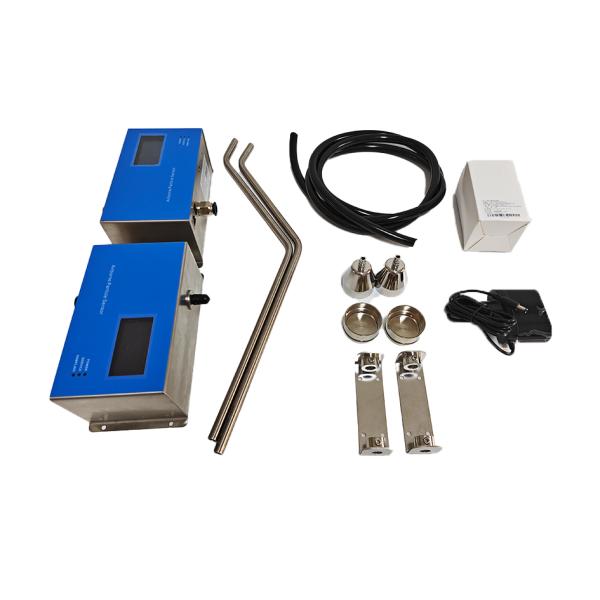

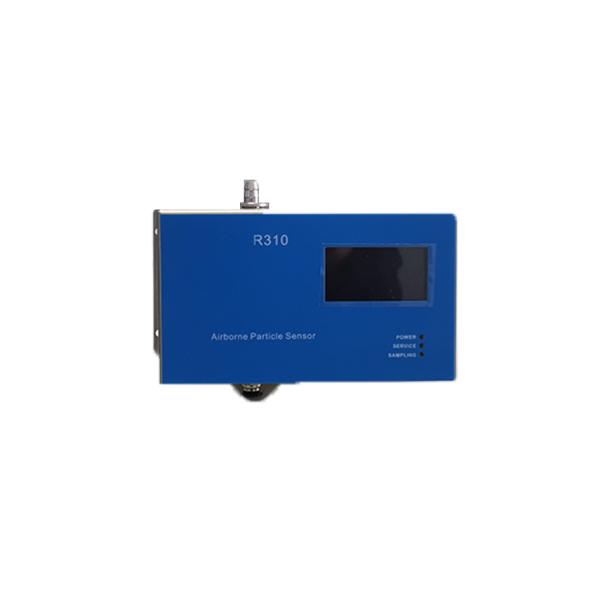

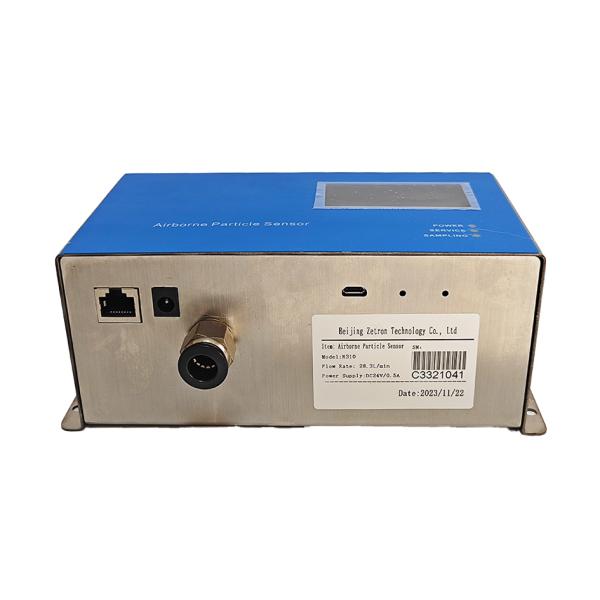

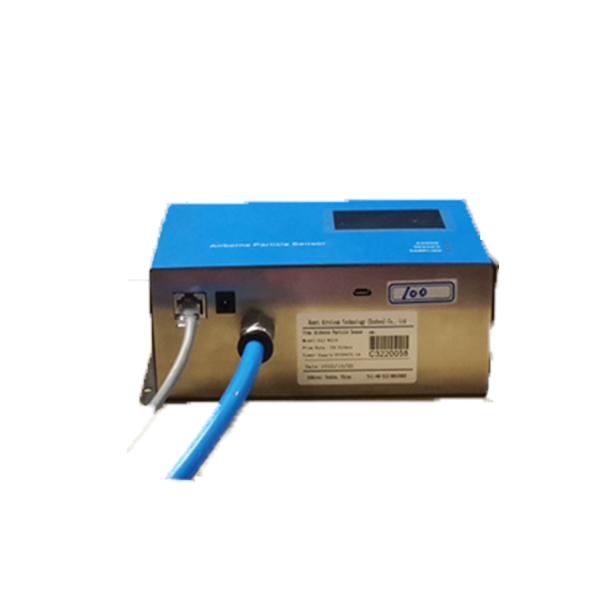

R310 Professional Remote Particle Counter for Environmental Monitoring

Remote Particle Counter Sensor

Clean Environment Monitoring System is an advanced, reliable, and user-friendly monitoring software suite that features a truly distributed architecture. High availability data bases and hot standby system fail over functionality assures (multiple manufacturers supported), temperature/humidity, differential pressures compliance and peace of mind. Standard inputs include: airborne particle counters and air velocity inputs. Any device that has a linear analog output can be integrated into the system.

EASY INSTALLATION AND RELIABLE OPERATION WITH REDUCED COSTS

R310 Remote Particle Sensor is similar with TSI Particle Counter.

R310 Remote Particle Counter is an instrument that makes it easier and cost-effective to monitor the cleanrooms. The integration of the instrument is easy while using either Ethernet (TCP/IP) or Serial Modbus RTU communications.

R310 Remote Particle Counter can also simplify its installation either by Ethernet connection (Power-over-Ethernet),or a local power supply.

• ISO 14644-14 suitability for use classified

• Sealed inlet prevents accidental ingress of cleaning solutions

• Rapid setup and unit configuration using standard USB-C cable

• Easy integration into HR- FMS Software with sensor auto discovery

• Easy Integration into third party systems with RS485 data output model options

• Meets EU and US FDA Aseptic Processing Guidelines with 0.1 CFM (2.83 L/min) flow rate, 0.3 μm and 0.5 μm size channel size options

• Portable,small size,easy to install

• Sensitivity: 0.3 um

• Two channels: 0.5 um, 5.0 um (optional)

• Real-time Data LCD Display

• TCP/IP Protocol communication LAN interface

• Provide RS485, MODBUS protocol

• Separate and long-life pump

Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.
These units provide immediate results that allow you to proactively monitor your environment.

It's widely used in GMP Controlled Areas, Isolators, Restricted Access Barrier Systems (RABS), Cleanrooms, Hospital Pharmacies, Laboratories, Industrial, Aerospace, Trend Analysis, Clean Micro-environment Monitoring, Multi-spot Monitoring, etc.
