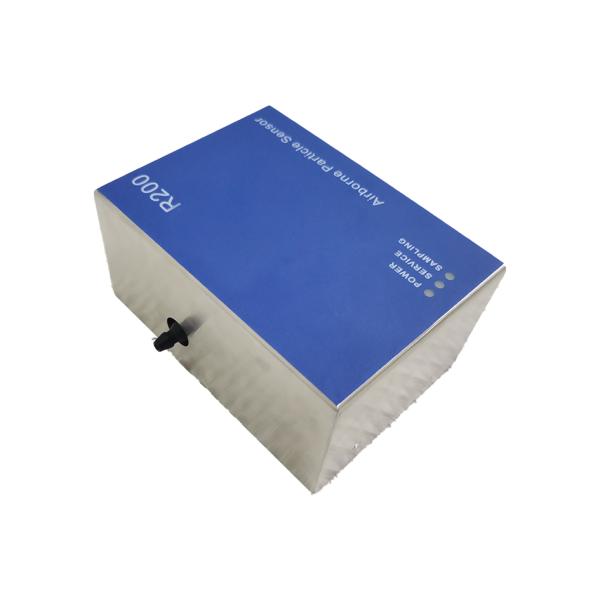

R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
Specifications
Brand Name :
HiYi
Model Number :
R310
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 1000-2500/pcs
Payment Terms :
L/C,D/A,D/P,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000 set/month
Delivery Time :
3-7 days
Packaging Details :
alloy case
Name :
HiYi 0.5 5.0μm Customization RS485 LCD Display Independent Pump 1 CFM Cleanroom Remote Particle Counter
Temperature :
0~50℃
Alarm :
Visual/ Audible
Color :
Blue
Explosion-proof :
Laser diode
Protection grade :
IP 65
Size :
120 * 65 * 132 mm
Weight :
0.6 kg
Description

R200 Online Air Quality Monitoring Particle Counter for Environmental Protection


OVERVIEW
R200 Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.


R200 Remote Particle Counter meets the requirements of GMP, and ISO21501-4. If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.


R200 Online Air Quality Monitoring Particle Counter for Environmental Protection


FEATURES & BENEFITS


28.3L/min or 1CFM flow rate;
Particle channels:0.5um & 5.0um, other for customized
RS485 Modbus output
With internal pump, 0.2-0.3Kg weight


SPECIFICATION


​

Model R200 (2.83L/min) R210(2.83L/min) R310P
R300 (28.3L/min) R310 (28.3L/min) (28.3L/min)
Channel sizes Two Channels:0.5μm,5.0μm
Three Channels:0.3μm,0.5μm,5.0μm
Four Channels:0.3μm,0.5μm,1.0μm,5.0μm
Six Channels:0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm(Customizable)
Display X Customizable Display
2.4 inch OLED 2.4 inch OLED
Output RS485(modbus) RS485(modbus)or TCPIP(modbus)
(TCPIP has no extended output)
RS485(modbus) X 4-20mA(2channels);0-5V(2channels)
Extended Output Relay(2channels);WiFi;LORA
Power Supply 12-24V 12-24V(RS485(modbus))
12-24V,48V Standard POE(TCPIP(modbus))
Pump External pump Built-in pump(R210) Built-in pump
External pump(R310)
Weight &Size 0.2-0.3Kg 0.9Kg 2.6-2.8Kg
106.5×76×49(mm) 135×120×60(mm) 217×250×138(mm)
R200 Online Air Quality Monitoring Particle Counter for Environmental ProtectionR200 Online Air Quality Monitoring Particle Counter for Environmental ProtectionR200 Online Air Quality Monitoring Particle Counter for Environmental ProtectionR200 Online Air Quality Monitoring Particle Counter for Environmental Protection

​


APPLICATION

Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.
These units provide immediate results that allow you to proactively monitor your environment.


It's widely used in GMP Controlled Areas, Isolators, Restricted Access Barrier Systems (RABS), Cleanrooms, Hospital Pharmacies, Laboratories, Industrial, Aerospace, Trend Analysis, Clean Micro-environment Monitoring, Multi-spot Monitoring, etc.


R200 Online Air Quality Monitoring Particle Counter for Environmental Protection

CLIENT CASE


R200 Online Air Quality Monitoring Particle Counter for Environmental Protection
