KANE 258 Wireless Flue Gas Analyzer With Direct CO O2 & CO Sensor Protection
KANE 258 Wireless Flue Gas Analyzer With Direct CO O2 & CO Sensor Protection
KANE 258 Wireless Flue Gas Analyzer With Direct CO O2 & CO Sensor Protection
KANE 258 Wireless Flue Gas Analyzer With Direct CO O2 & CO Sensor Protection
Specifications
Brand Name :
HiYi
Model Number :
258
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
paper case
Temperatures :
0 - 45°C
Pump :
Inner pump
Size :
216mm x 105mm x 45mm
Weight :
Approx. 0.625g
Type :
Portable Gas Detector
Description

KANE 258 Flue Gas Analyser
with direct CO O2 & CO sensor protection

OVERVIEW

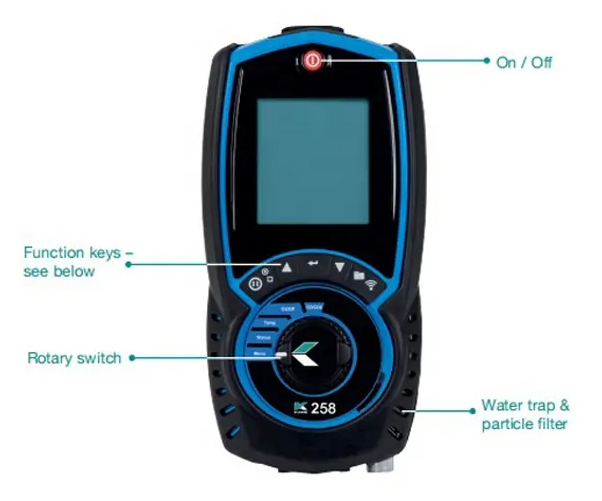

KANE258 has a protective rubber cover with magnets for “hands-free” operation & is supplied with a flue probe with integral temperature sensor. It has a low flow detector system to switch off the analyser’s pump if it detects an over filled water trap.

KANE258 has a large 6 line display showing data & test results based on your actions. The display’s bottom line also highlights analyser status at all times. It stores up to 30 logs of any combination of Combustion & Temperature test results. It can send test readings to our optional KANE IRP-2 infrared printer or KANE’s wireless App if wireless is fitted. Two lines of 16 characters can be added to the header of the printouts.

FEATURES


● Rotary dial & 6 line display
● Wireless option * Connect to KANE LIVE & GAS CHECKER Apps
● Data hold, log & print with user details to optional printer
● Produce test reports: Combustion & temperature
● USB Charger
● 10 year 'no quibble' warranty when recertified by KANE

● Install & service domestic oil & gas appliances
● Combustion performance checks
● Combustion efficiency checks

● Natural Gas
● Butane
● LPG
● Light oil
● Wood pellets
● Propane

SPECIFICATION
PARAMETER
RANGE
RESOLUTION
ACCURACY
Temperature Measurement
Flue Temperature
0 - 600°C
0.1°C
±0.5°C
Inlet temperature (Internal Sensor)
0 50°C
0.1°C
±1°C
Inlet temperature (External Sensor)
0 - 600°C
0.1°C
±0.5°C
Flue Gas Measurement
Carbon Monoxide
0 - 2000ppm
1ppm
±3ppm or ±5% of reading (whichever is greater)
Oxygen
0 - 21%
0.10%
±0.3% Volume
Calculations
Carbon Dioxide
0 - 20%
0.10%
±0.3% Volume
CO/CO2 Ratio
0 - 0.9999
0.0001
±5% of reading
Efficiency (Net or Gross)
0 - 99.9%
0.10%
±1% of reading
Efficiency High (C)
0 - 119.9%
0.10%
±1% of reading
Excess Air
0 - 119.9%
0.10%
±0.2% of reading
Pre-programmed Fuels
UK, USA & France
Natural Gas, Propane, Butane, LPG, Light Oil, Digester Gas, Wood Pellets Heavy Oil
European
Natural Gas, Light Oil, Bio Oil, Coke, LPG, Wood, Town Gas, Butane & Propane
Battery Life
>8 hours (continuous with pump on)
Certification
The KANE458s is independently tested & certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control
Ordinance (Bim5chV)
Operating Conditions
Temperatures
0 - 45°C
Humidity
15 to 90% RH, (non-condensing)
Power Supply
Rechargeable batteries, USB Charging
Physical Characteristics
Weight
Approx. 0.625g
Dimensions
216mm x 105mm x 45mm
