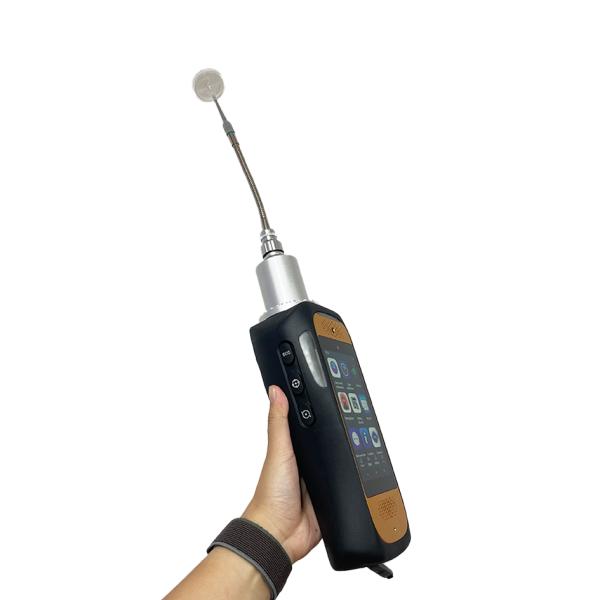

MS600-S2-AQI Portable Intelligent Air Quality Monitor

Portable intelligent gas detectors are primarily used for rapid and accurate analysis of various gas concentrations, temperature and humidity, particulate matter, altitude, wind speed, and radiation. Key detection principles include electrochemistry, infrared, catalytic combustion, thermal conductivity, and PID photoionization. They are widely used in firefighting, emergency rescue, confined spaces, petroleum, chemical, metallurgy, refining, gas, warehousing, medicine, environmental protection, and air treatment.

1. ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
2. Upto 6 gases simultaneously detection
3. Android OS, support remote maintenance and OTA remote wireless upgrade
4. GPS/Beidou precise positioning, LED lighting, SOS one-key call for help, 3D intelligent fall alarm, one-key positioning upload
5. Built-in pump with 1000ml/m flow rate, 0.2m swan sampling probe
6. Alarm types: LOW, HIGH, TWA ,STEL, alarm, concentration alarm, under pressure alarm, fault alarm, pump blockage alarm, man fell down alarm
7. Alarm mode: sound and light alarm, sound and light + visual alarm, vibration alarm, voice (multi-language) alarm
8. Communication: Type C, WiFi and Bluetooth
9. Optional: Bluetooth printer, 4G, Display user information, real-time location, concentration information, longitude and latitude, custom address information, track query on the map,One-click photo taking (> 800W pixels)
10. PC software for data acquisition and analysis
11. 4 inch High-definition color screen, touchable screen, 800*480 pixels
12. Zero point automatic tracking
13. Automatic calibration with calibration system or manual calibration
14. 16G big storage, 10,000,000 logs
15. Anti-drop height: ≥ 2 meters
16. High-strength, corrosion-resistant, fire-resistant polycarbonate and rubber protective housing,anti-fall, wear-resistant and anti-static

Widely used in petrochemical plants, pharmaceutical facilities, gas storage, hazardous material handling, laboratories, and environmental monitoring, this detector enables real-time gas detection, safety alarming, and intelligent system integration. It plays a vital role in risk prevention, compliance monitoring, and smart industrial safety management.

​

Detection Parameters	PM2.5, PM10, O3, NO2, CO, SO2, T&H
PM2.5	laser sensor,0-1000ug/m3, 1ug/m3 resolution
PM10	laser sensor, 0-1000ug/m3, 1ug/m3 resolution
O3	electrochemical sensor, 0-10ppm, 0.01ppm resolution
NO2	electrochemical sensor, 0-10ppm, 0.01ppm resolution
CO	electrochemical sensor, 0-100ppm, 0.01ppm resolution
SO2	electrochemical sensor, 0-10ppm, 0.01ppm resolution
Humidity	0-100%
Temperature	-40 ~120ºC
Accuracy	≤±2% (F.S)
Respond time	T90≤20S
Sensor lifetime	EC 2-3 years ,Cat 2-3 years,IR 5-10 years, TC 2-5years,PID 2-3years
Detection method	Pumped
Battery	10000mAh rechargeable lithium battery
Protection level	IP66
Product Size	210*93*70mm(L*W*H)
Weight	about 700g
Protection grade	Exia II CT4 Ga
Working environment	-20ºC~+50ºC, ≤95%RH (non-condensing occasions)
Warranty time	1 year

​
