ISO Tank Container Rotation Machine

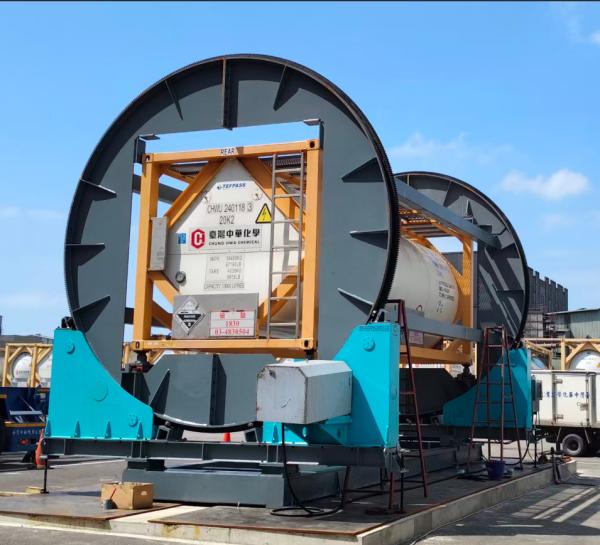

This automatic turnover rotating machine is specifically designed for rotating ISO tanks and standard containers to facilitate cleaning, repair, testing, fabrication, and maintenance operations.
Operation Principle
The tank or container is loaded onto the machine's seats. One circular frame moves along rails, positioning the container into the frame corners. Once all corners are securely fixed against the machine frame, the circular frames rotate via motor-driven chain and sprocket systems with self-locking functionality. Workers can stop rotation at any required position to perform maintenance tasks conveniently.
Technical Specifications
| Maximum Loading Capacity | 5 Tons |
| Compatible Container Sizes | Standard 20', 40' containers |
| Ring Rotation Speed | Controlled by Schneider inverter |
| Rotation Drive Method | Chain & sprocket wheel system |
| Rotation Motor Power | 2 × 0.75 kW |
| Travel Motor Power | 2 × 0.55 kW |
| Idler Travel Stroke | 5500-13000 mm |
| Idler Travel Speed | 3000 mm/min |
Standard Supply Range (Per Set/Pair)
- Power unit with motors & gearbox, rotating ring (fixed type)
- Idler unit with rotating ring (travel type)
- Pendant box with 15-meter cables (provided as spare)
- Control cabinet with Schneider inverter
- Three pushbutton controls
- Speed control switch
- Digital speed display
- Complete documentation including mechanical drawings, electrical diagrams, and operation manual
