6M CNC Fiber Laser Tube Cutting Machine, Long Bed with Moving Tailstock for Full‑Length Metal Pipe Processing
6M CNC Fiber Laser Tube Cutting Machine, Long Bed with Moving Tailstock for Full‑Length Metal Pipe Processing
Specifications
MOQ :
One unit
Packaging Details :
Wooden box
Price :
1000-100000
Place of Origin :
China
Delivery Time :
5-8 work days
Description

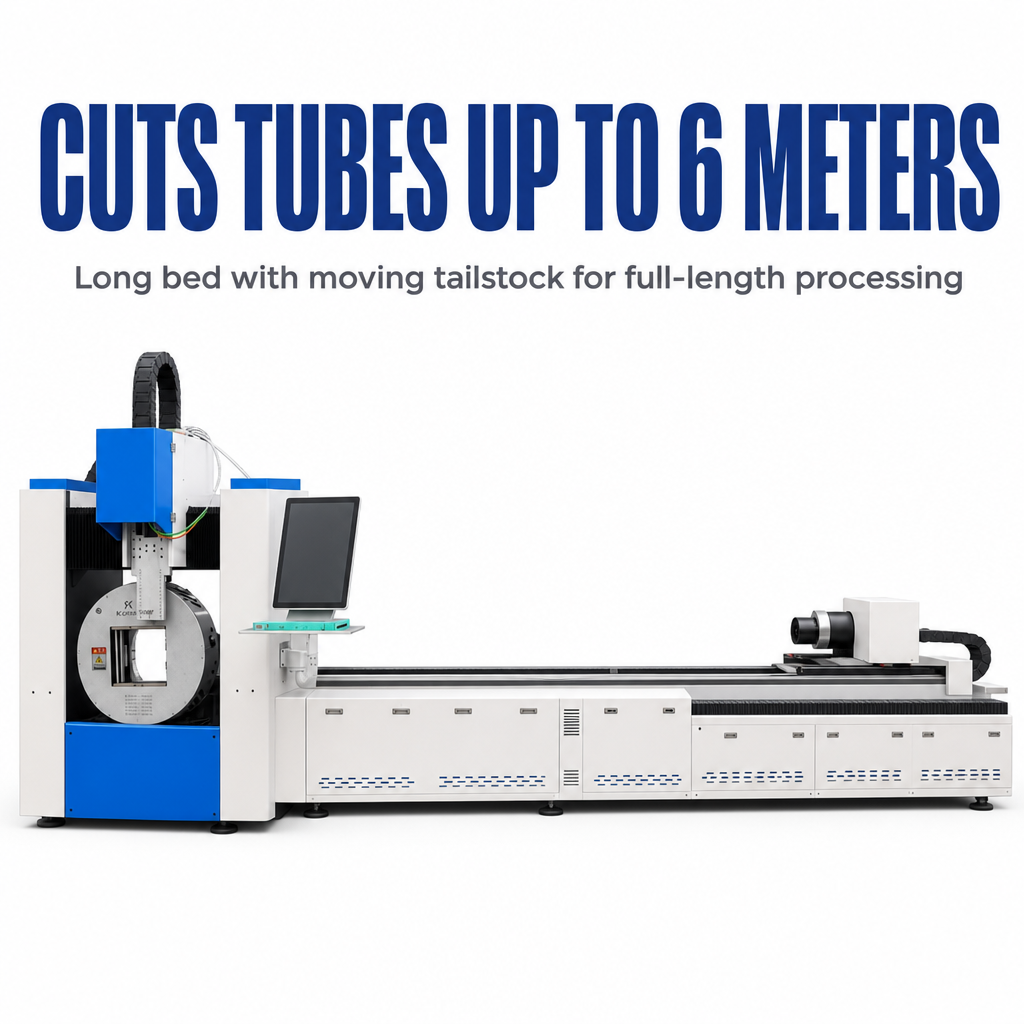

6M CNC Fiber Laser Tube Cutting Machine
Our long-bed fiber laser tube cutting machine is engineered for processing extra-length metal tubular workpieces up to 6 meters. Featuring a movable tailstock and extended machine bed, this industrial solution supports full-length processing with exceptional precision and stability.
Key Features & Benefits
  • Heavy-duty welded frame provides outstanding rigidity and vibration suppression
  • Movable tailstock automatically follows during machining for continuous support
  • Prevents workpiece sagging and bending, even with full 6-meter pipes
  • High-end servo drive system achieves ±0.03 mm positioning accuracy
  • Stable non-stop operation suitable for shift-based industrial production
  • Human-centered touch control interface with DXF and PLT file support
Technical Specifications
Parameter Specification
Maximum Processing Length 6000 mm
Tube Outer Diameter Range 20 mm - 220 mm
Laser Power Options 1000W, 1500W, 2000W, 3000W, 6000W
Positioning Accuracy ±0.03 mm
Material Compatibility
The advanced clamping system combines front rotary chuck and movable rear tailstock for steady gripping and smooth rotary motion. Compatible with:
  • Round tubes, square tubes, rectangular tubes
  • Diverse special-shaped metal profiles
  • Carbon steel, stainless steel, galvanized steel
  • Aluminum alloy materials
Processing Capabilities
This machine performs precision cutting, hole piercing, and slotting operations with automated workflow that lowers operator skill requirements while increasing workshop throughput.
Ideal Applications
Perfect for metal structure workshops, engineering component factories, traffic equipment manufacturing, fitness apparatus production, agricultural machinery, and pipe-making enterprises requiring large-length pipe processing solutions.
