Swing‑Arm Laser Spot Welder, Suitable for Different Types of Lithium Battery Cells
Swing‑Arm Laser Spot Welder, Suitable for Different Types of Lithium Battery Cells
Specifications
MOQ :
One unit
Packaging Details :
Wooden box
Price :
1000-100000
Delivery Time :
5-8 work days
Place of Origin :
China
Description

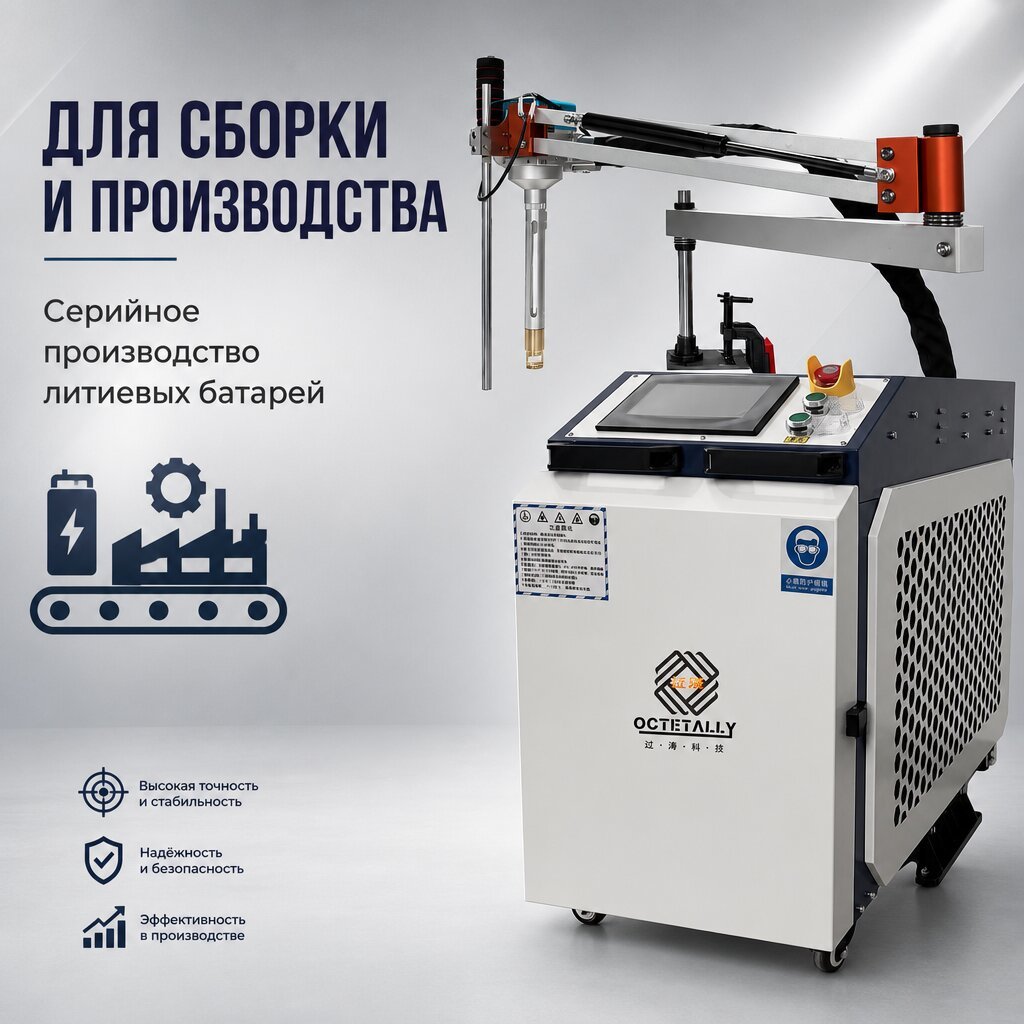

Swing-Arm Laser Spot Welder for Lithium Battery Cells
This cantilever-type laser spot welder is engineered to handle multiple types of lithium-ion battery cells, including prismatic hard-case cells and soft polymer pouch cells. It meets diverse production and repair requirements for lithium battery pack assembly and maintenance.
Technical Specifications
Laser Source Fiber laser with 1000W rated output power
Pulse Width Adjustable from 0.1ms to 20ms
Pulse Frequency 1Hz to 50Hz range
Laser Spot Diameter Fine-tunable between 0.2mm to 2.0mm
Working Modes Single pulse and continuous pulse
Working Radius 800mm effective cantilever reach
Operating Temperature 5℃ to 40℃
Input Voltage 220V single phase
Machine Weight Approximately 260kg
Key Features
  • Wide compatibility with prismatic hard-case cells and soft polymer pouch cells
  • Flexible swing cantilever arm with 800mm working radius and multi-angle adjustment
  • Mobile wheeled cabinet for easy relocation between workstations
  • Low-heat precision laser welding minimizes thermal impact on battery cells
  • Comprehensive adjustable laser parameters for different material thicknesses
  • Integrated water cooling system supports continuous operation
  • 10-inch industrial touch screen for simplified parameter setup
Operational Benefits
The flexible swing-arm design allows operators to complete welding work without moving heavy battery assemblies, significantly simplifying operation for large battery packs. The mobile cabinet enables easy transportation between workshop stations and service centers.
Low-heat precision laser spot welding technology keeps thermal impact to battery cells at a minimum, avoiding overheating and thermal damage while ensuring safety during battery assembly and repair processes.
Applications
Ideal for lithium battery pack assembly, battery repair and restoration, new-energy maintenance workshops, battery service centers, and small-scale battery production facilities.
